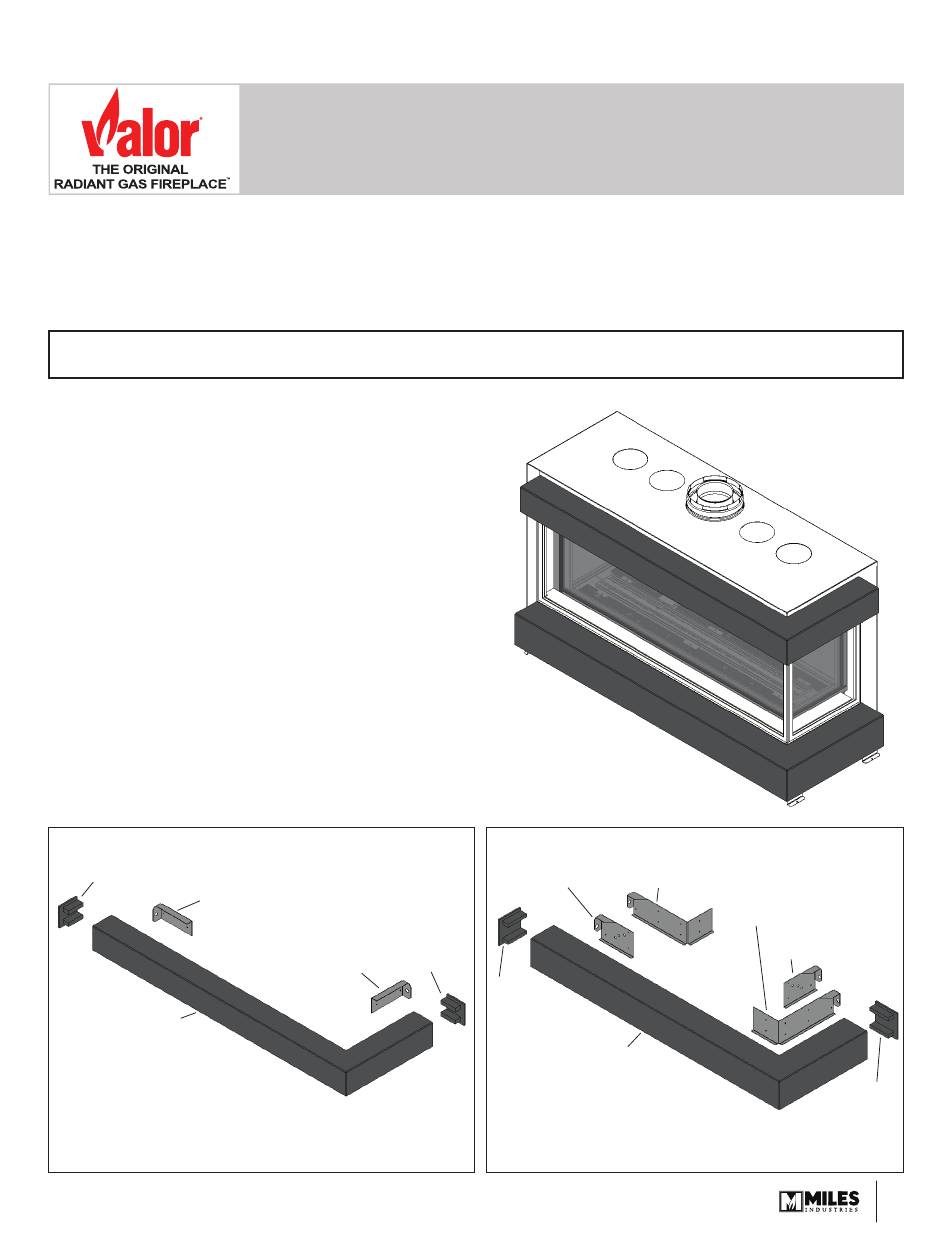

Valor LX2 Series Installation Manual

INSTALLATION MANUAL
2200USBC—Corner Upper Shelf Black
2200LSBC—Corner Lower Shelf Black
Valor models LX2 Corner 2200LJ & RJ Fireplaces ONLY
For use with
Note: This kit must be installed by a qualifi ed installer. These instructions are to be used in
conjunction with the main installation instructions for the above listed models.
Description of Kit
These instructions cover the installation of upper
or lower shelf kit on either left or right corner LX2
fi replace.
2200USBC—Corner Upper Shelf Kit installs above the
opening on LX2 corner fi replace.
2200LSBC—Corner Lower Shelf Kit installs below the
opening on LX2 corner fi replace.
Each kit contains a shelf and mounting supports.
Shelves are reversible to fi t either 2200LJ or
2200RJ LX2 corner appliances.
!
The shelves should be installed BEFORE
the wall fi nish is applied. Wall fi nish then
butts up to the shelves. Shelves CANNOT
be installed over top of wall fi nish material.
Kits Contents
2200USBC—Corner Upper Shelf
End cap
Support A
Upper shelf
Hardware supplied from 2200SHP
• 8 #8-3/8 sheet metal screws
• 2 M6 x 30 mm bolts
• 2 Washers
4007178-01
© 2018, Miles Industries Ltd. All rights reserved.
LX2 Series
End cap
Support B
Overview
Corner right appliance
(2200RJ) shown; fl ip
shelves for corner left
appliance (2200LJ).
2200LSBC—Corner Lower Shelf
Front support Corner support
(for
2200RJ appliance) 2200LJ appliance)
End cap
Lower shelf
Hardware supplied from 2200SHP
• 12 #8-3/8 sheet metal screws
• 2 M6 x 30mm bolts
• 2 Washers
(for
Corner support
(for
2200RJ appliance)
Front support
(for
2200LJ appliance)
End cap
1
