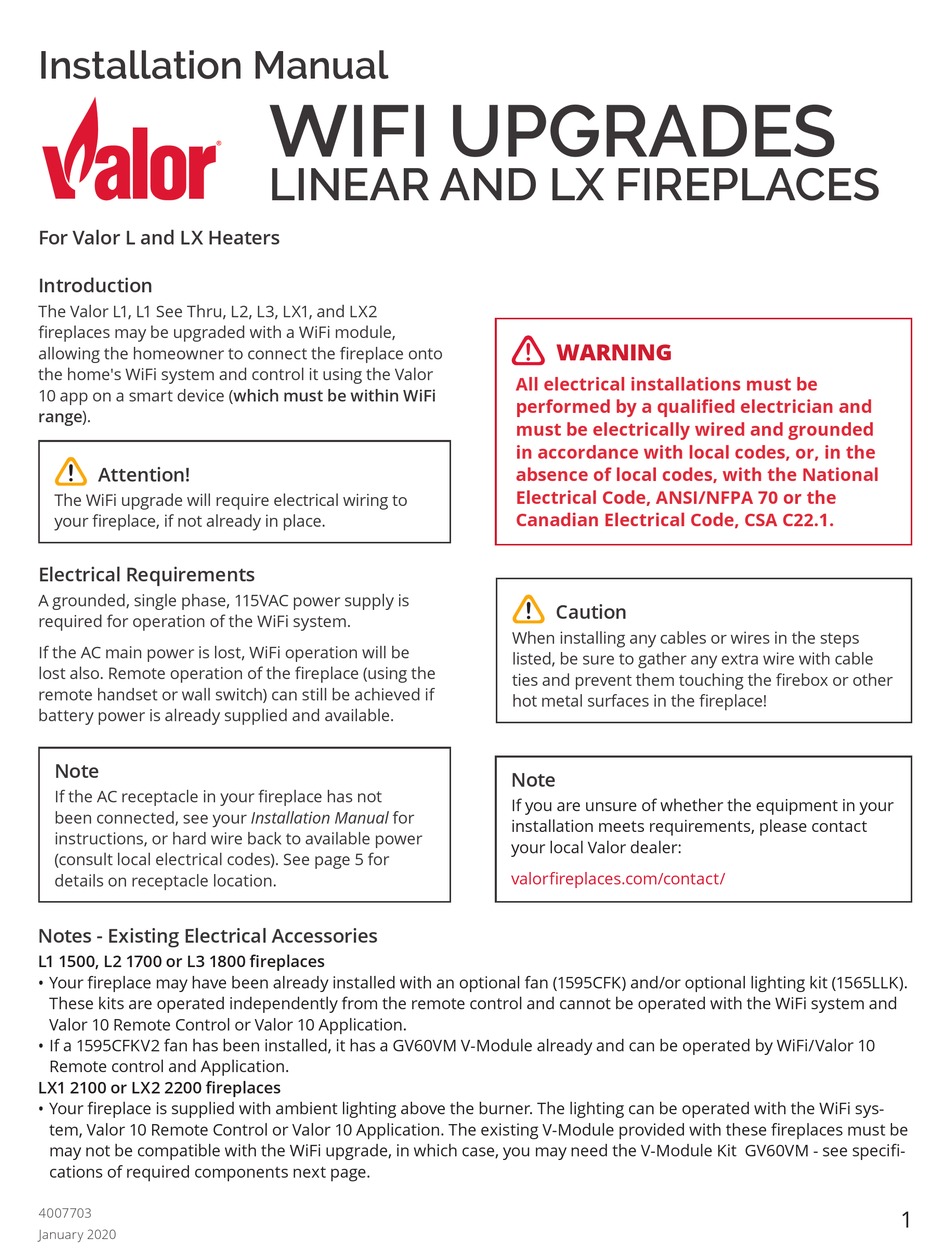

Installation Manual
For Valor L and LX Heaters
Introduction
The Valor L1, L1 See Thru, L2, L3, LX1, and LX2
fi replaces may be upgraded with a WiFi module,
allowing the homeowner to connect the fi replace onto
the home's WiFi system and control it using the Valor
10 app on a smart device (which must be within WiFi
range).
Attention!
The WiFi upgrade will require electrical wiring to
your fi replace, if not already in place.
Electrical Requirements
A grounded, single phase, 115VAC power supply is
required for operation of the WiFi system.
If the AC main power is lost, WiFi operation will be
lost also. Remote operation of the fi replace (using the
remote handset or wall switch) can still be achieved if
battery power is already supplied and available.
Note
If the AC receptacle in your fi replace has not
been connected, see your Installation Manual for
instructions, or hard wire back to available power
(consult local electrical codes). See page 5 for
details on receptacle location.
Notes - Existing Electrical Accessories
L1 1500, L2 1700 or L3 1800 fi replaces
• Your fi replace may have been already installed with an optional fan (1595CFK) and/or optional lighting kit (1565LLK).
These kits are operated independently from the remote control and cannot be operated with the WiFi system and
Valor 10 Remote Control or Valor 10 Application.
• If a 1595CFKV2 fan has been installed, it has a GV60VM V-Module already and can be operated by WiFi/Valor 10
Remote control and Application.
LX1 2100 or LX2 2200 fi replaces
• Your fi replace is supplied with ambient lighting above the burner. The lighting can be operated with the WiFi sys-
tem, Valor 10 Remote Control or Valor 10 Application. The existing V-Module provided with these fi replaces must be
may not be compatible with the WiFi upgrade, in which case, you may need the V-Module Kit GV60VM - see specifi -
cations of required components next page.
4007703
January 2020
WIFI UPGRADES
LINEAR AND LX FIREPLACES
 WARNING
All electrical installations must be
performed by a qualifi ed electrician and
must be electrically wired and grounded
in accordance with local codes, or, in the
absence of local codes, with the National
Electrical Code, ANSI/NFPA 70 or the
Canadian Electrical Code, CSA C22.1.
Caution
When installing any cables or wires in the steps
listed, be sure to gather any extra wire with cable
ties and prevent them touching the fi rebox or other
hot metal surfaces in the fi replace!
Note
If you are unsure of whether the equipment in your
installation meets requirements, please contact
your local Valor dealer:
valorfi replaces.com/contact/
1
