Summary of Contents for Woodward MFD 11 Packages

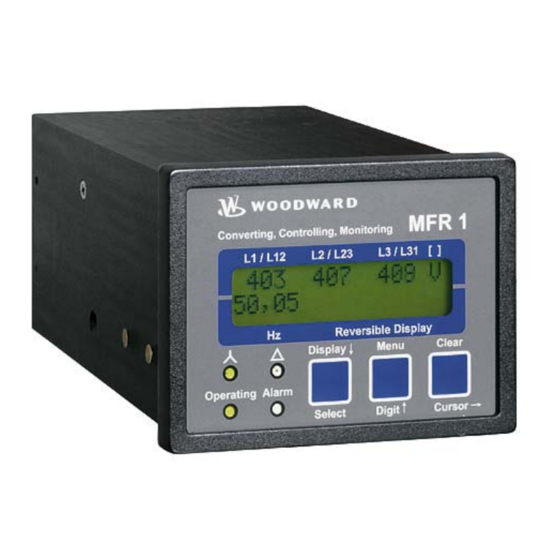

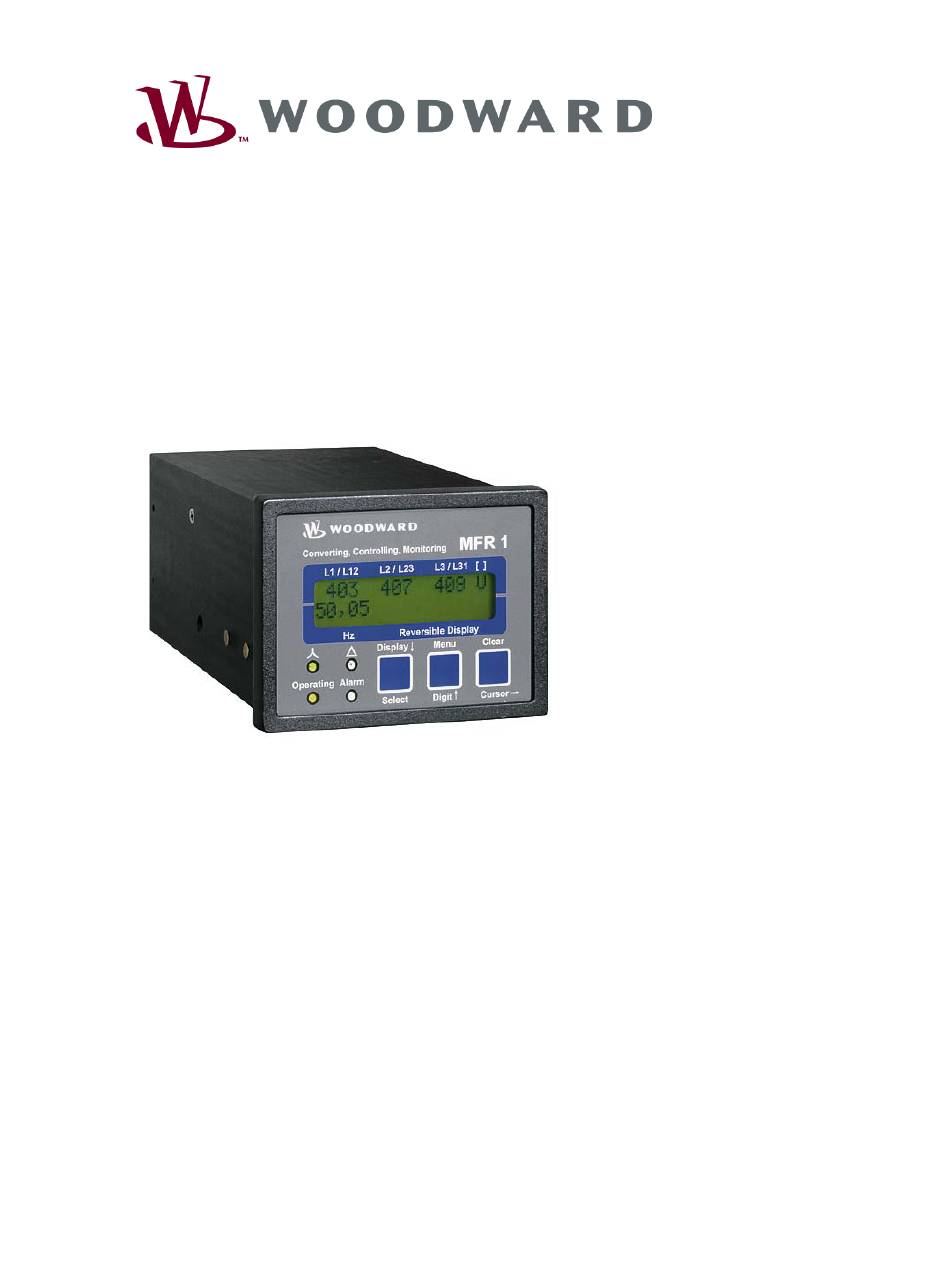

- Page 1 37351A MFR 11 Packages Protection Relay Manual Version 3.1xxx Manual 37351A...
- Page 2 Provides other helpful information that does not fall under the warning or caution categories. Woodward reserves the right to update any portion of this publication at any time. Information provided by Woodward is believed to be correct and reliable. However, Woodward assumes no responsibility unless otherwise expressly undertaken.
-
Page 3: Table Of Contents
LC Display.............................23 Display in Automatic Mode (First Line of the Display: Measured Values)........23 Display in Automatic Mode (Second Line of the Display: Measured Values) ......23 Display in Automatic Mode (Second Line of the Display: Alarm Indication).......24 © Woodward Page 3/59... - Page 4 Product Service Options........................54 Returning Equipment for Repair ......................54 Packing a Control ........................55 Return Authorization Number RAN .................... 55 Replacement Parts ..........................55 How to Contact Woodward........................56 Engineering Services..........................57 Technical Assistance..........................58 Page 4/59 © Woodward...
- Page 5 Table 3-1: Conversion chart - wire size ........................... 12 Table 4-1: Alarm messages..............................19 Table 5-1: Alarm messages..............................24 Table 6-1: Release delay of the relays ............................. 43 Table 6-2: Protective function output to relay ......................... 45 © Woodward Page 5/59...
-
Page 6: Chapter 1. General Information
3 relay outputs]) • MFR1140B/G59N (flush mounted, standard unit with 400 Vac PT inputs with G59N Package [MP Package phase/vector shift and df/dt ROCOF monitoring, 8 relay outputs, wide-range power supply]) Page 6/59 © Woodward... -
Page 7: Measurement Value Logging
15% of the nominal voltage. This ensures rapid and precise measurement of the frequency. However the frequency is still measured correctly even if voltage is only ap- plied to one phase. © Woodward Page 7/59... -
Page 8: Package Functional Descriptions
The manual is therefore only a guide. In case of incorrect entries or a total loss of functions, the default settings may be taken from the list of parameters enclosed at the rear of this manual. Page 8/59 © Woodward... -
Page 9: Chapter 2. Electrostatic Discharge Awareness
CAUTION To prevent damage to electronic components caused by improper handling, read and observe the pre- cautions in Woodward manual 82715, Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules. © Woodward Page 9/59... -
Page 10: Wiring Diagram 100/400 V Package Models (Standard)
This is where the DPC Blocking of protective functions must be plugged in. or remote acknowledgement Subject to technical modifications. 2005-09-13 | MFR 11 Wiring Diagram r13ww-3705-ap.skf Figure 3-1: Wiring diagram 100/400 V package models Page 10/59 © Woodward... -
Page 11: Wiring Diagram 690 V Package Models (Packages Mp / G59)
The socket for the PC parameterization is situated on the side of the unit. This is where the DPC must be plugged in. Subject to technical modifications. 2005-09-13 | MFR 11 Wiring Diagram r13ww-3705-ap.skf Figure 3-2: Wiring diagram 690 V package models © Woodward Page 11/59... -
Page 12: Power Supply (Packages Mp Vdew / Sc)
+ / L Power supply - / N Figure 3-4: Wide range power supply Terminal Description Wide range power supply unit (Packages NU G59N / SC+N) 90 to 265 Vac/dc 2.5 mm² 0 V reference point 2.5 mm² Page 12/59 © Woodward... -
Page 13: Measuring Inputs
Figure 3-6: Measuring inputs - voltage, 690 V version Terminal Measurement Description Measuring voltage L1 2.5 mm² -N/A- 2.5 mm² Measuring voltage L2 2.5 mm² 690 V direct -N/A- 2.5 mm² Measuring voltage L3 2.5 mm² Neutral point of the 3-phase system/transformer 2.5 mm² © Woodward Page 13/59... -
Page 14: Figure 3-7: Measuring Inputs - Synchronizing Voltage
Synchronizing voltage Figure 3-7: Measuring inputs - synchronizing voltage Terminal Measurement Description 400V direct Synchronizing voltage L1 2.5 mm² or via transf. Synchronizing voltage L2 2.5 mm² ../100V Synchronizing voltage L3 (not measured) 2.5 mm² Page 14/59 © Woodward... -
Page 15: Discrete Inputs
Relay 3 2.5 mm² Relay 4 Packages G59 & G59N 2.5 mm² Relay 5 Packages G59 & G59N 2.5 mm² Relay 6 Packages G59 & G59N 2.5 mm² Relay 7 Packages G59 & G59N 2.5 mm² © Woodward Page 15/59... -
Page 16: Interface
If the parameter "Direct config." is enabled on the control, communication via the CAN bus interface on terminals X1/X5 is disabled. If the control unit detects that the engine is running (ignition speed exceeded), the direct configuration port is disabled. Page 16/59 © Woodward... -
Page 17: Chapter 4. Functional Description
"Clear" button resets the relays. ON ....All alarm messages are reset if terminals 5/6 ("Blocking of protective functions / remote acknowledgement") are ener- gized. Alarms that cannot be blocked are only reset after the fault is no longer present. © Woodward Page 17/59... -
Page 18: Control Outputs
Output relay (type: change-over contact) Relay 4 to 7 The "relay manager" controls this relay. Terminal 19 through 30 Packages G59 & G59N Output relay (type: make contact, NO) Relay 8 The "relay manager" controls this relay. Terminal 31/32 Page 18/59 © Woodward... -
Page 19: Alarms
If the parameter "Auto clearing displays" is configured "ON", the LED ex- tinguishes after the resetting time has expired. If the parameter "Auto clearing displays" is configured "OFF", the LED is extinguished only after pressing the "Clear" button. © Woodward Page 19/59... -
Page 20: Chapter 5. Display And Operating Elements
Menu Select menu Digit↑ Increase the digit Clear Acknowledgement of alarm messages Cursor→ Move cursor one position to the right Miscellaneous No. Description Function LC Display LC Display Potentiometer Adjust LCD contrast DPC plug Configuration plug Page 20/59 © Woodward... -
Page 21: Leds
This LED flashes as long as a set point limit is exceeded. When all measur- ing values are below the configured set point limit again and "Auto clearing display" is configured "OFF", this LED will change to steady illumination. © Woodward Page 21/59... -
Page 22: Push Buttons
Configuration: Cursor→ - This button moves the cursor one position to the right. When the cursor reaches the extreme right position it may be returned to the extreme left position by pressing the Cursor→ button again. Page 22/59 © Woodward... -
Page 23: Lc Display
Instead of "xxxxxxxxxx" the following measuring values are indicated: • Synchronizing voltage Unit dynamic in [V / kV] Packages SC SC+N • Synchronizing frequency Unit static in [Hz] Packages SC SC+N • Synchronizing angle Unit static in [°] Packages SC SC+N © Woodward Page 23/59... -
Page 24: Display In Automatic Mode (Second Line Of The Display: Alarm Indication)
Overfrequency, level 1 Standard Overfreq.1 Overfrequency, level 2 Standard Overfreq.2 Underfrequency, level 1 Standard Und.freq.1 Underfrequency, level 2 Standard Und.freq.2 Vector/phase shift Packages VDEW G59N Ph. shift df/dt (ROCOF) Packages G59 G59N Fault df Table 5-1: Alarm messages Page 24/59 © Woodward... -
Page 25: Chapter 6. Configuration
If a parameter is con- figured "OFF", the related screens are not displayed or monitored by the control. Pressing the "Select" button will advance the displayed screen to the next parame- ter. © Woodward Page 25/59... -
Page 26: Basic Data
CS0, thus locking the device for external persons. If for 2 hours uninterruptedly supply voltage is applied, the device automatically switches to code level 0. Page 26/59 © Woodward... -
Page 27: Change Passwords
2 (comissioning level) is set. After entering the code, the user has the access rights with which he was assigned. This code level (CS) is preset to CS2 = 0 0 0 2 © Woodward Page 27/59... -
Page 28: Direct Configuration
• You may start the PC program as follows: - by "Start/Program/Woodward/LeoPC" (starting at version 3.1.xxx), or - by a double click on a file ending ".cfg" in the subdirectory "LeoPC". • After the PC program has been started, establish the communication by pressing the "F2" button. This will es- tablish a data link between the unit and the laptop/PC. -
Page 29: Measurement
Example: If a voltage of 400 V is measured without a potential transformer, the secondary transformer voltage must be configured to 400V and the primary transformer voltage must be configured to 00.400V. © Woodward Page 29/59... -
Page 30: Rated Values (Packages Sc & Sc+N)
Enter the rated frequency of the generator (or the utility mains), which in most cases is 50 Hz or 60 Hz. This will affect the permissible limits for synchronization (refer to Synchronization (Packages & SC+N)" on page 31). Page 30/59 © Woodward... -
Page 31: Control Functions
The unit also issues a breaker closure order for synchronous networks, as long as the electrical angle between the two systems does not exceed the maximum permissible phase angle and the monitored voltage differential is less than the configured maximum permissible voltage differential. © Woodward Page 31/59... - Page 32 The control unit uses the time value configured here to determine when the breaker closure command is issued independent of the frequency differential. This permits the breaker contacts to close as close as possible to the synchronous point. Page 32/59 © Woodward...
-
Page 33: Type Of Monitoring
690 V versions) is a three-wire system, this setting must be se- lected. All subsequent screens concerning voltage measuring refer to phase-phase voltage (V ). In the configuration screens, this is in- Ph-Ph dicated by the supplement [V(ph-ph)]. © Woodward Page 33/59... -
Page 34: Protection
Example: If a 480 V system has an overvoltage limit of 510 V and a hysteresis of 10 V, the monitored voltage for an overvoltage alarm must drop below 500 V to re- set the alarm. Page 34/59 © Woodward... -
Page 35: Undervoltage Monitoring
Example: If a 480 V system has an undervoltage limit of 440 V and a hysteresis of 10 V, the monitored voltage for an overvoltage alarm must rise above 450 V to re- set the alarm. © Woodward Page 35/59... -
Page 36: Zero Voltage Monitoring (Packages Sc & Sc+N)
The control will auto- acknowledge a zero voltage condition regardless of how "Autoclearing Relays" is configured. NOTE A message is not displayed on the screen for zero voltage conditions. Page 36/59 © Woodward... -
Page 37: Voltage Asymmetry Monitoring
If the control monitors the voltage asymmetry beyond the permissible limit, the voltage differential must fall below that threshold plus the voltage level defined here for the fault condition to be rec- ognized as no longer existing. © Woodward Page 37/59... -
Page 38: Overfrequency Monitoring
Example: If a 60 Hz system has an overfrequency limit of 70 Hz and a hysteresis of 5 Hz, the monitored frequency for an overfrequency alarm must fall below 65 Hz to reset the alarm. Page 38/59 © Woodward... -
Page 39: Underfrequency Monitoring
Example: If a 60 Hz system has an underfrequency limit of 50 Hz and a hysteresis of 5 Hz, the monitored frequency for an overfrequency alarm must rise above 55 Hz to reset the alarm. © Woodward Page 39/59... -
Page 40: Vector / Phase Shift Monitoring (Packages Vdew / G59N)
If the monitored voltage/frequency reaches or exceeds the phase shift limit, the unit outputs the message "Ph. shift". If a re- lay was assigned to this function in the relay manager, that relay will be energized. Page 40/59 © Woodward... -
Page 41: Df/Dt (Rocof) Monitoring (Packages G59 & G59N)
T= 0.0s In order to initiate a Rate Of Change Of Frequency alarm, the measured df/dt must exceed and remain above the configured threshold without interruption for at least the period of time specified in this screen. © Woodward Page 41/59... -
Page 42: Relay Configuration
OFF ....Automatic clearing of the relays is disabled. Pressing the "Clear" but- ton resets the relays. The alarm message in the display is cleared according to how the parameter "Auto-clearing Display" is configured. The subsequent screens of this function are not indicated. Page 42/59 © Woodward... -
Page 43: Auto Acknowledgement Of Messages
Clearing display after 00s Alarm messages, which have been enabled, will be acknowledged after this config- ured delay time expires. This delay will initiate once the measure value ex- ceeds/falls below the threshold limit +/- the hysteresis © Woodward Page 43/59... -
Page 44: Changing The Relay Assignment (Standard / Packages G59 & G59N)
OFF ....The synch-check function is only assigned to relay 3. Relay 2 may be used for other monitoring functions. CAUTION If above parameter is configured to "ON" and a monitoring function is assigned to relay 2, relay 2 will not react if this monitoring function is triggered. Page 44/59 © Woodward... -
Page 45: Table 6-2: Protective Function Output To Relay
The "ready for operation" function is always assigned to relay 1. However, other protective functions may also be assigned to relay 1 additionally. Relay 1 is always configured as Normally Closed (break contact) and will de-energize if the unit is not ready for operation. © Woodward Page 45/59... -
Page 46: Chapter 7. Commissioning
After applying the measured variables, the unit will display the measured values. These values should be confirmed with a calibrated measuring instrument. After the unit has been configured for the application, the configuration mode is exited by simultaneously pressing the "Digit↑" and "Cursor→" buttons. Page 46/59 © Woodward... -
Page 47: Appendix A. Dimensions
Front view Configuration port Back plate mounting optional (please order brackets P/N 8923-1023) Bottom view 50 mm 130 mm Back view with connecting terminals Configuration port Configuration port 2005-09-09 | MFR 11 Dimensions r1ww-3605-ab.skf Figure 7-1: Dimensions © Woodward Page 47/59... -
Page 48: Appendix B. Technical Data
- Ambient humidity ................95 %, not condensing - Maximum altitude ....................2000 m - Degree of pollution ......................2 Discrete inputs----------------------------------------------------------------------------------------isolated - Input range (V ) ..........Rated voltage 18 to 250 Vac/dc Cont, discrete input - Input resistance ..................... approx. 68 kΩ Page 48/59 © Woodward... - Page 49 - EMC test (CE) ..........tested according to applicable EN guidelines - Listings ............CE marking; UL listing for ordinary locations UL/cUL listed, Ordinary Locations, File No.: E231544 (no UL/cUL listing for Packages NU G59N / SC+N) - Marine-Approval ......................GL © Woodward Page 49/59...
-
Page 50: Appendix C. Measured Quantities And Accuracy
• Frequency = rated frequency ± 2 % • Power supply = rated voltage ± 2 % • Power factor cos ϕ = 1 • Ambient temperature 23 °C ± 2 K • Warm-up period = 20 minutes. Page 50/59 © Woodward... -
Page 51: Appendix D. List Of Parameters
0.1 to 15.0 % 6.0 % Synchronization Max phase < 1 to 60° 2° Synchronization Time pulse 50 to 250 ms 200 ms Circuit breaker Pick-up t. 40 to 300 ms 80 ms SC+N © Woodward Page 51/59... - Page 52 3 to 90 ° 30 ° VDEW Phase-jump value (3-phase) 3 to 90 ° 8 ° G59N df/dt- Monitoring ON/OFF G59N df/dt Response> 1.0 to 9.9 Hz/s 2.5 Hz/s df/dt Delay 0.1 to 9.9 s 0.1 s G59N Page 52/59 © Woodward...
- Page 53 0 to 2/3/8 0003 Underfrequency 2 to relay 0 to 2/3/8 0003 VDEW Phase jump to relay 0 to 2/3/8 0003 G59N df/dt to relay 0 to 2/3/8 0003 G59N Collect Response to relay 0 to 2/3/8 © Woodward Page 53/59...
-
Page 54: Appendix E. Service Options
≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ If a control (or any part of an electronic control) is to be returned to Woodward for repair, please contact Wood- ward in advance to obtain a Return Authorization Number. When shipping the unit(s), attach a tag with the fol- lowing information: •... -
Page 55: Packing A Control
Stuttgart [+49 (711) 789 54-0]. They will help expedite the processing of your order through our distributors or local service facility. To expedite the repair process, contact Woodward in advance to obtain a Return Authoriza- tion Number, and arrange for issue of a purchase order for the unit(s) to be repaired. No work can be started until a purchase order is received. -
Page 56: How To Contact Woodward
+49 (711) 789 54-100 e-mail: stgt-info@woodward.com For assistance outside Germany, call one of the following international Woodward facilities to obtain the address and phone number of the facility nearest your location where you will be able to get information and service. Facility... -
Page 57: Engineering Services
MFR 11 Packages - Protection Relay Engineering Services ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ Woodward Industrial Controls Engineering Services offers the following after-sales support for Woodward prod- ucts. For these services, you can contact us by telephone, by e-mail, or through the Woodward website. • Technical support •... -
Page 58: Technical Assistance
Unit no. and Revision: P/N:____________________ REV: ____________ Unit type MFR 11____________________________________ Serial number S/N _______________________________________ Description of your problem _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ Please be sure you have a list of all parameters available. Page 58/59 © Woodward... - Page 59 Phone +49 (711) 789 54-0 • Fax +49 (711) 789 54-100 stgt-info@woodward.com Homepage http://www.woodward.com/power Woodward has company-owned plants, subsidiaries, and branches, as well as authorized distributors and other authorized service and sales facilities throughout the world. Complete address/phone/fax/e-mail information for all locations is available on our website (www.woodward.com).
