Instruction Sheet
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury, death
and/or property damage! Retain instructions for future reference.
BUILT TO LAST
Note: This framing nailer is shipped Each time the Work Contact Element is
with the BLACK single cycle mode depressed, a nail is driven into the
trigger installed.
work surface. Extreme care should be
taken because a nail will be driven
Always know the
WARNING
!
when the WCE is pressed against any
operational
surface.
mode of the nailer before using.
Failure to know the operational
Since the tool can be actuated without
mode could result in death or seri-
removing the finger from the trigger,
ous personal injury.
this is considered to be a less restrictive
Operational Modes
mode, suitable for more experienced
users.
This stick framing nailer may be operat-
MODE CONVERSION
ed in the "Single Cycle" or the "Bottom
To convert the tool from one mode to
Trip" mode. The nailer is delivered in
the other:
the single cycle mode. A separate 'red'
trigger for "Bottom Trip" mode is
1. Remove o-ring on the side of trig-
included with tool as an accessory.
ger pin.
2. Remove trigger pin, trigger, and
trigger spring.
SINGLE CYCLE MODE
3. Switch out only the trigger.
When the black trigger is installed,
4. Replace trigger spring, trigger, trig-
nailer is in single cycle mode. This
ger pin, and o-ring.
method is recommended when precise
nail placement is required. Operation
Do not attempt to modify the trigger
in this mode requires trigger to be
components in any manner and do not
pulled each time a nail is driven. Nailer
attempt to use any other trigger com-
can be actuated by depressing the
Work Contact Element (WCE) against
work surface followed by pulling the
Mode Conversion
trigger.
The trigger must be released after each
fastener is driven to allow tool to reset.
Since the tool can only be actuated by
first removing the finger from the trig-
ger, this is considered to be a more
restrictive mode of operation, suitable
for less experienced users.
BOTTOM TRIP MODE
When the red trigger is installed, the
nailer is in bottom trip mode. This
method is recommended when less
precise nail placement is required.
Operation in this mode requires trigger
to be depressed with nailer off of the
work surface. Then, the nose of the
nailer is tapped against the work sur-
face causing a nail to be driven.
Campbell Hausfeld nailer meet or exceed Industries' Standards as set forth by the American National
Standard Institute/International Staple, Nail and Tool Association in ANSI/ISANTA SNT-101-2002.
© 2005 Campbell Hausfeld
For parts, product & service information
visit www.chpower.com

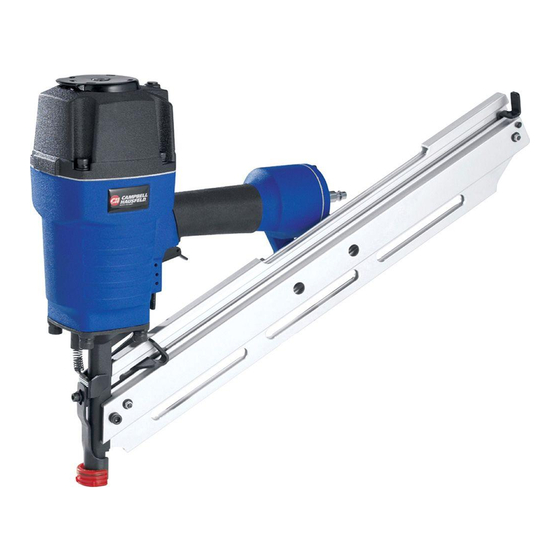

Models NS3490 and NS2190
Framing Nailer
ponents other than those intended for
this tool.
See the tool manual for further Safety
and Operation information.
Contact your Campbell Hausfeld repre-
sentative if you have any questions.
Trigger spring
O-ring
Trigger
Trigger pin
IN704300AV 8/05
