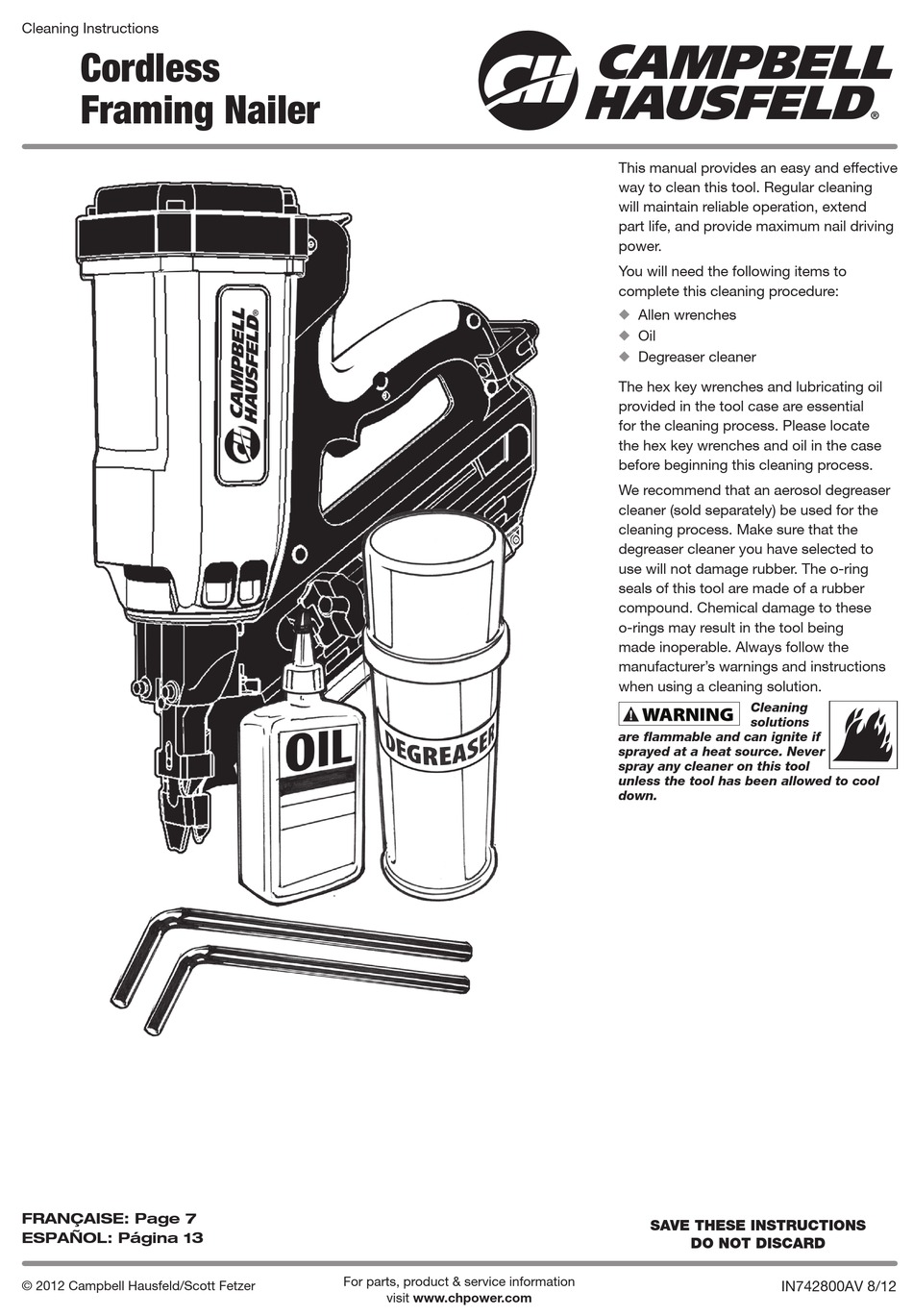

Cleaning Instructions
Cordless
Framing Nailer
Française: Page 7
esPañol: Página 13
© 2012 Campbell Hausfeld/Scott Fetzer
For parts, product & service information
visit www.chpower.com
This manual provides an easy and effective
way to clean this tool. Regular cleaning
will maintain reliable operation, extend
part life, and provide maximum nail driving
power.
You will need the following items to
complete this cleaning procedure:
Allen wrenches
u
Oil
u
Degreaser cleaner
u
The hex key wrenches and lubricating oil
provided in the tool case are essential
for the cleaning process. Please locate
the hex key wrenches and oil in the case
before beginning this cleaning process.
We recommend that an aerosol degreaser
cleaner (sold separately) be used for the
cleaning process. Make sure that the
degreaser cleaner you have selected to
use will not damage rubber. The o-ring
seals of this tool are made of a rubber
compound. Chemical damage to these
o-rings may result in the tool being
made inoperable. Always follow the
manufacturer's warnings and instructions
when using a cleaning solution.
Cleaning
solutions
are flammable and can ignite if
sprayed at a heat source. Never
spray any cleaner on this tool
unless the tool has been allowed to cool
down.
Save TheSe InSTrucTIonS
Do noT DIScarD
IN742800AV 8/12
