Campbell Hausfeld NB3565 Operating Instructions Manual

Manual de Instrucciones
Notas
Modelo NB3565
8-Sp
Operating Instructions
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury, death
and/or property damage! Retain instructions for future reference.
BUILT TO LAST
for the nailer. Use fil-
Table Of Contents
tered, lubricated, regu-
General Safety . . . . . . . . . . . . . .1-2
lated compressed air
Specifications . . . . . . . . . . . . . . . .2
only. Use of a com-
Operational Modes . . . . . . . . . . . .3
pressed gas instead of
Operating The Nailer . . . . . . . . .3-5
compressed air may
Troubleshooting . . . . . . . . . . . . . .6
cause the nailer to explode which will
cause death or serious personal
Warranty . . . . . . . . . . . . . . . . . . . .7
injury.
Description
Do not exceed maxi-
mum operating pres-
This nailer is designed for decorative
sure of the nailer (110
trim, molding, window casings, furni-
psi). The nailer will
ture trim and picture frame assembly.
not function properly.
Features include: convenient rear loading
Do not use a com-
magazine which holds up to 100 nails,
pressed air source capable of more
no-mar tip, adjustable exhaust, single
than 200 PSI. The nailer could explode
cycle trigger, quick clear nose, and an
which will cause death or serious per-
adjustable depth of drive mechanism.
sonal injury.
Never use gasoline
General Safety Information
or other flammable
This manual contains safety, opera-
liquids to clean the
tional and maintenance information.
nailer. Never use the
Read this manual and nailer in the presence
understand all safety warn- of flammable liquids or gases. Vapors
could ignite by a spark and cause an
ings and instructions
explosion which will result in death
before operating the nail-
MANUAL
or serious personal injury.
er. Contact your Campbell
Hausfeld representative if
Always remain in a
you have any questions.
firmly balanced
position when
OPERATOR'S RESPONSIBILITY:
using or handling
Before operating the nailer, read and
the nailer.
understand all safety warnings and
labels. Follow the operating instruc-
Do not modify or
tions outlined in this manual.
disable the Work
Contact Element
EMPLOYER'S RESPONSIBILITY:
(WCE). Do not tie
Distribute this instruction manual to all
or tape the WCE or
users before allowing use of the nailer.
trigger in a
Ensure all operators read, understand
depressed position. Death or serious
and follow all safety warnings, labels
personal injury could result.
and instructions outlined in this
manual.
Do not touch the
trigger unless dri-
Danger indicates
ving nails. Never
an imminently
attach air line to
hazardous situation which, if not
nailer or carry
avoided, WILL result in death or seri-
nailer while
ous injury.
touching the trig-
Do not use any type of flammable
ger. The tool could eject a fastener
gases or oxygen as a power source
which will result in death or serious
personal injury.
Campbell Hausfeld Nailers meet or exceed Industries' Standards as set forth by the American National
Standard Institute/International Staple, Nail and Tool Association in ANSI/ISANTA SNT-101-1993.
© 1998 Campbell Hausfeld

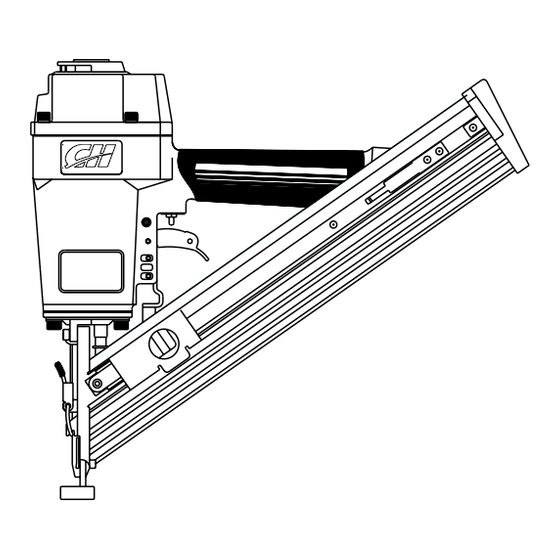

Model NB3565
Angle Finish
Nailer
TM
Model NB3565
O
CO
2
Locate model and serial number on
tool magazine and cap and record
below:
Model No. ________________________
Serial No. _________________________
Retain these numbers for
future reference.
Warning indicates
a potentially
hazardous situation which, if not
avoided, COULD result in death or
serious injury.
Always
disconnect
nailer from air
line before
clearing jams,
adjusting or
servicing the nailer, relocating the
nailer, or when the nailer is not in
use. Always reconnect the air line
BEFORE loading any fasteners. The
nailer could eject a fastener causing
death or serious personal injury.
Protect your eyes and
ears. Wear Z87 safety
glasses, with side
shields. Wear hearing
protection. Employers
and users are responsible for ensur-
ing the user or anyone near the
nailer wears this safety protection.
Serious eye injury or permanent
hearing loss could result.
IN246201AV 4/98
