T3MK75F16 and T3MK75F16D: Configuration of Mercury Boards:
1. Fasten snap on spacers onto metal pems configuration (A) (B) of backplane depending on the access controller (Fig. 2, pg. 3).
2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.
Mercury Access Controller
EP1502, MR52, MR16IN, MR16OUT
EP2500, MUX8
EP1501, MR51e
MR52
Fig. 2
Rocker Switch
Altronix
eFlow104NB
Altronix
eFlow102NB
Altronix
ACM8(CB)
Altronix
ACM8(CB)
Altronix PD8UL(CB)
T3MK Kits

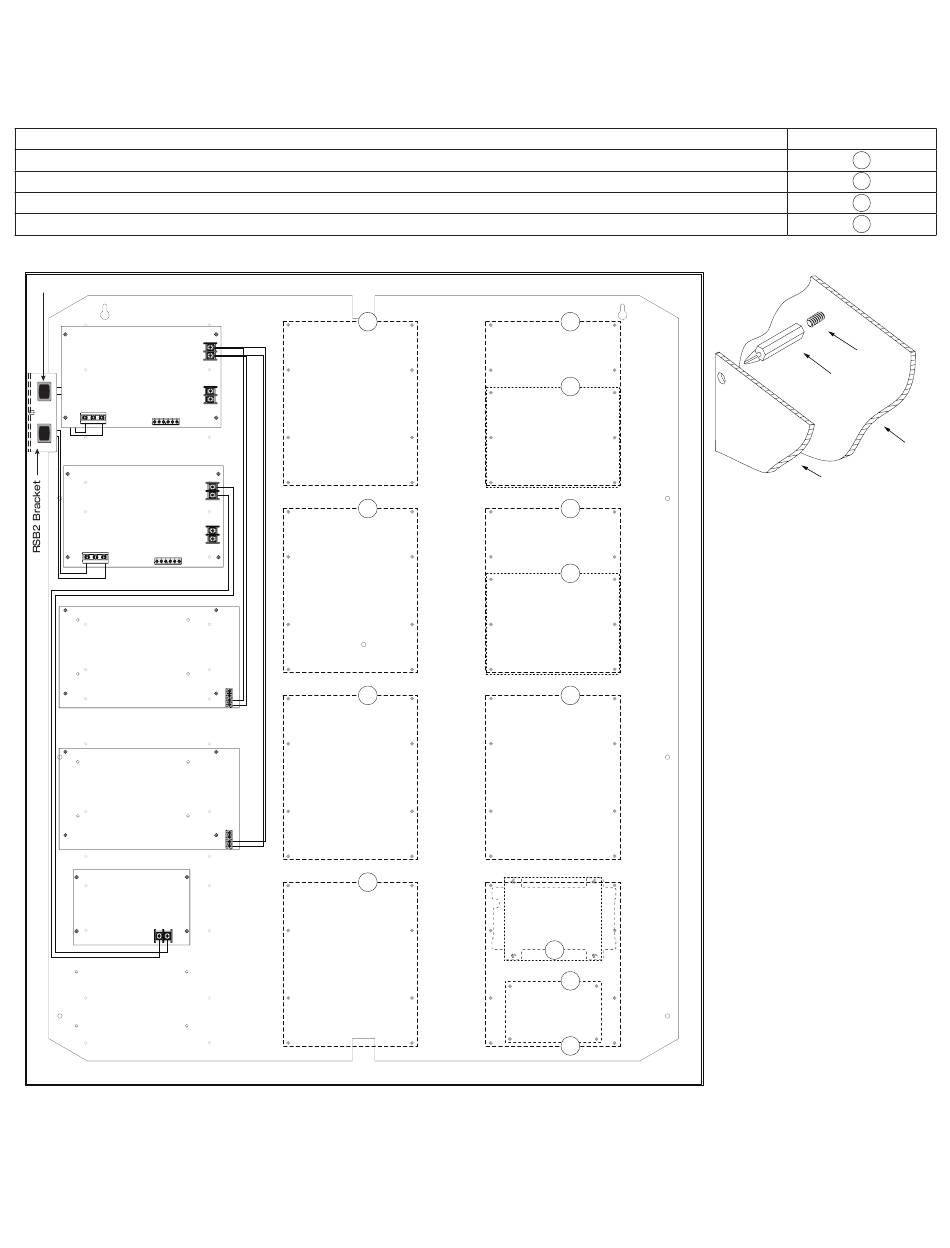

Access Controller Position Chart for the Following Models:
A
A
A
A
A
B
A
B
A
C
D
A
Pem Mounting
A
B
C
D
Fig. 2a
Pem
Snap On
Spacer
Backplane
Mercury Board
