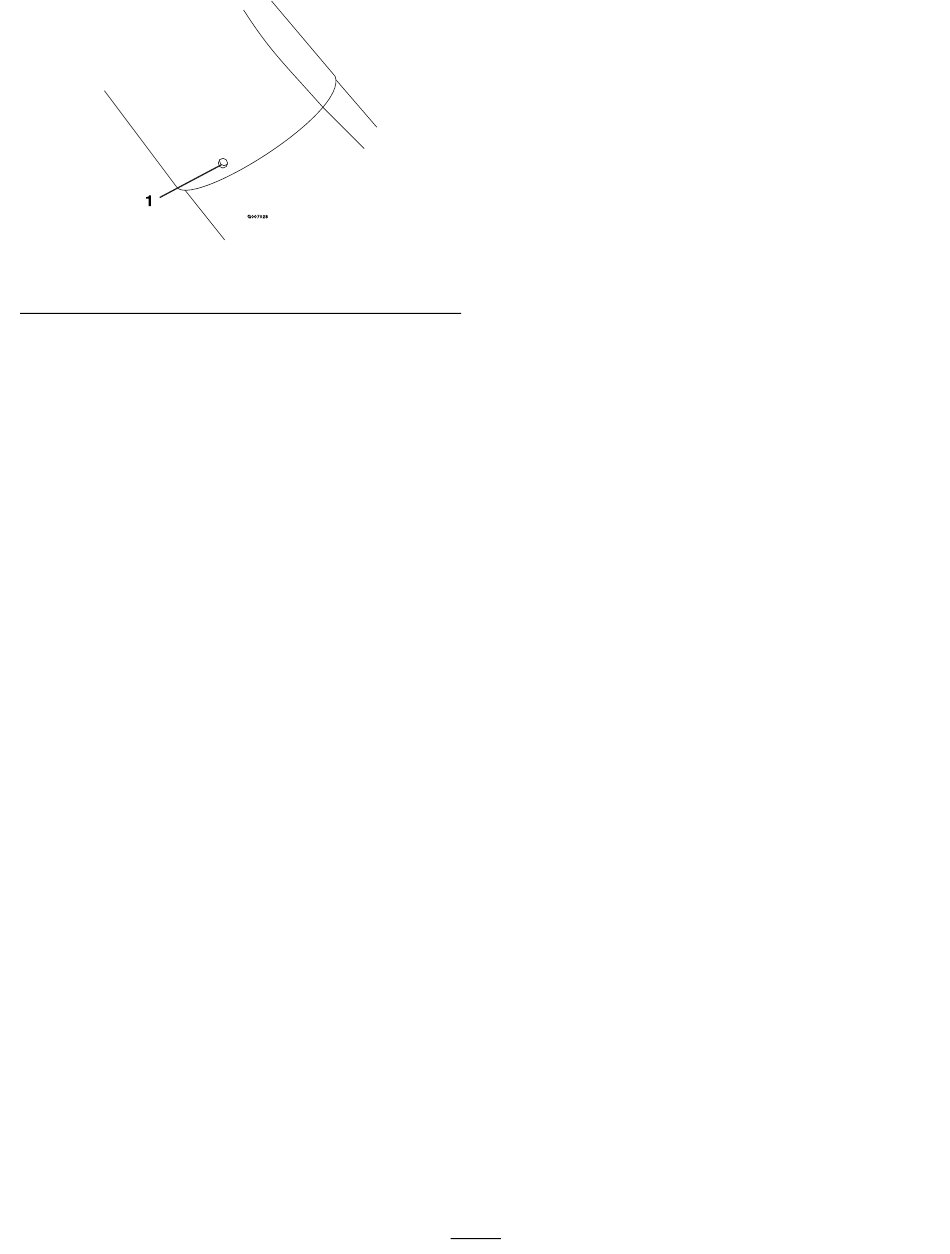

1. Drill the holes here
8. Slip the upper end of the tube assembly into the
hood opening. Slide the lower end of the tube
assembly over the blower outlet and align the notch
with the tube latch. Latch the tube to the blower.
Operation
Pre-Start:
1. Read the Operator's manual for the mower and
UltraVac to familiarize yourself with all controls
before operating the machine. Make sure that
you understand the controls, their locations, their
functions, and their safety requirements.
2. Ensure the blower, belt cover, bags, tube and hood
are in good condition, properly attached, and latched.
Run In
1. Verify that the blower drive operates correctly prior
to delivery to customer.
2. The UltraVac blower operates when deck drive is
engaged. Be sure that all persons are clear of the
mower deck and blower before engaging the cutting
blades. Set the throttle to "midway" position. Pull
outward on the PTO switch to the "ROTATE"
position.
3. To disengage the deck drive and blower, set the
throttle to "midway" position. Push in on the PTO
switch to the "STOP" position to stop the cutting
blades and blower. The cutting blades will require a
slightly longer amount of time to come to a complete
stop when the blower is installed on the deck.
Figure 26
16
