Exmark ULTRAVAC QUICK DUMP SYSTEM Setup Instructions page 5

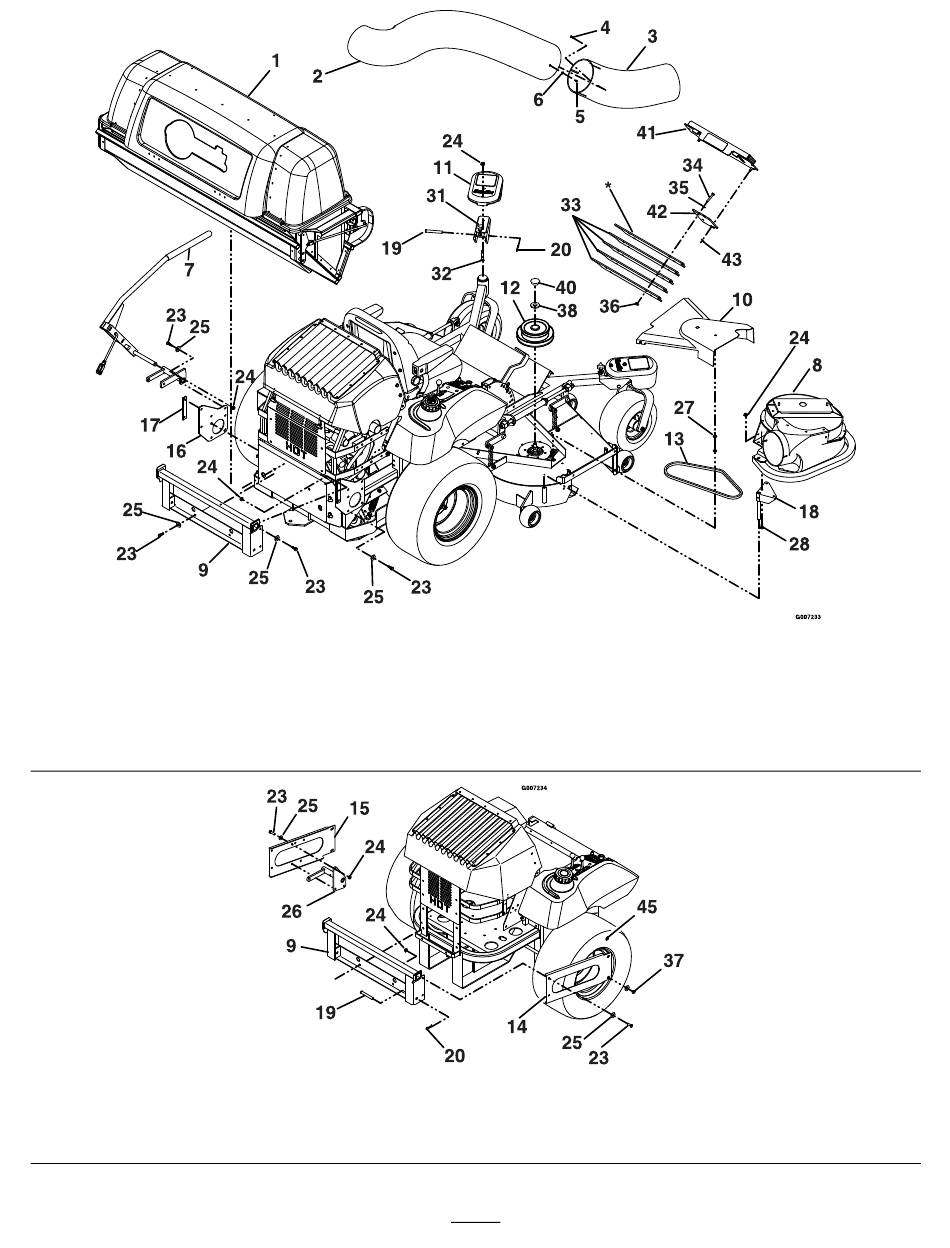

Figure 1
All Lazer Z XP & Lazer Z XS Serial Number 510,000 & Higher and Lazer Z Serial Number 510,000–789,999
(Shown without ROPS for clarity)
*Lazer Z XS Liquid-Cooled Units Serial Number 600,000 and Higher
and Lazer Z DS Serial Number 312,000,000 and Higher
require an additional weight (item 33) on the front panel.
Figure 2
Lazer Z Serial Number 352,000–509,000 Assembly Diagram
(Shown without ROPS for clarity)
5
