Exmark ULTRAVAC QUICK DUMP SYSTEM Setup Instructions page 17

Adjustments
Note: The UltraVac QDS was adjusted at the factory to operate properly. However, there are three basic
adjustments that can be made, should your unit require them:
1. Handle Link
2. Stop Screws
1. Door closing: The closing of the door is controlled by the two hinge links and the two stop screws (see
Figure 27). The stop screws should be adjusted so that both will be contacted when the contacting arm is
straight up and down. With the stop screws adjusted, the length of the hinge links can be changed to provide
complete closing of the door, and reasonable force on the handle to latch or unlatch the door. Lengthen the
links to reduce the force. Shorten the links to increase the force. With the door closed, both links should be
slightly tight to minimize rattling.
2. Door opening: After adjusting the hinge links for door closing, the handle link can be adjusted to obtain
maximum door opening (see Figure 27). Lengthen the link to open the door farther. Shorten the link to open
the door less. The maximum door opening is limited by the contacting arm hitting the stop. This stop is non
adjustable, and prevents over opening damage from occurring to the linkage.
3. Latches: Once the open and closed positions have been set, the latches can be adjusted (see Figure 27). With the
door closed, the latch link should be set so that the latch plate completely engages and contacts the latch rod
welded to the door. The latch plates should not be tight against the latch rod. They should easily "wiggle".
Fill Out Warranty Registration Form
Fill out the online warranty registration form.

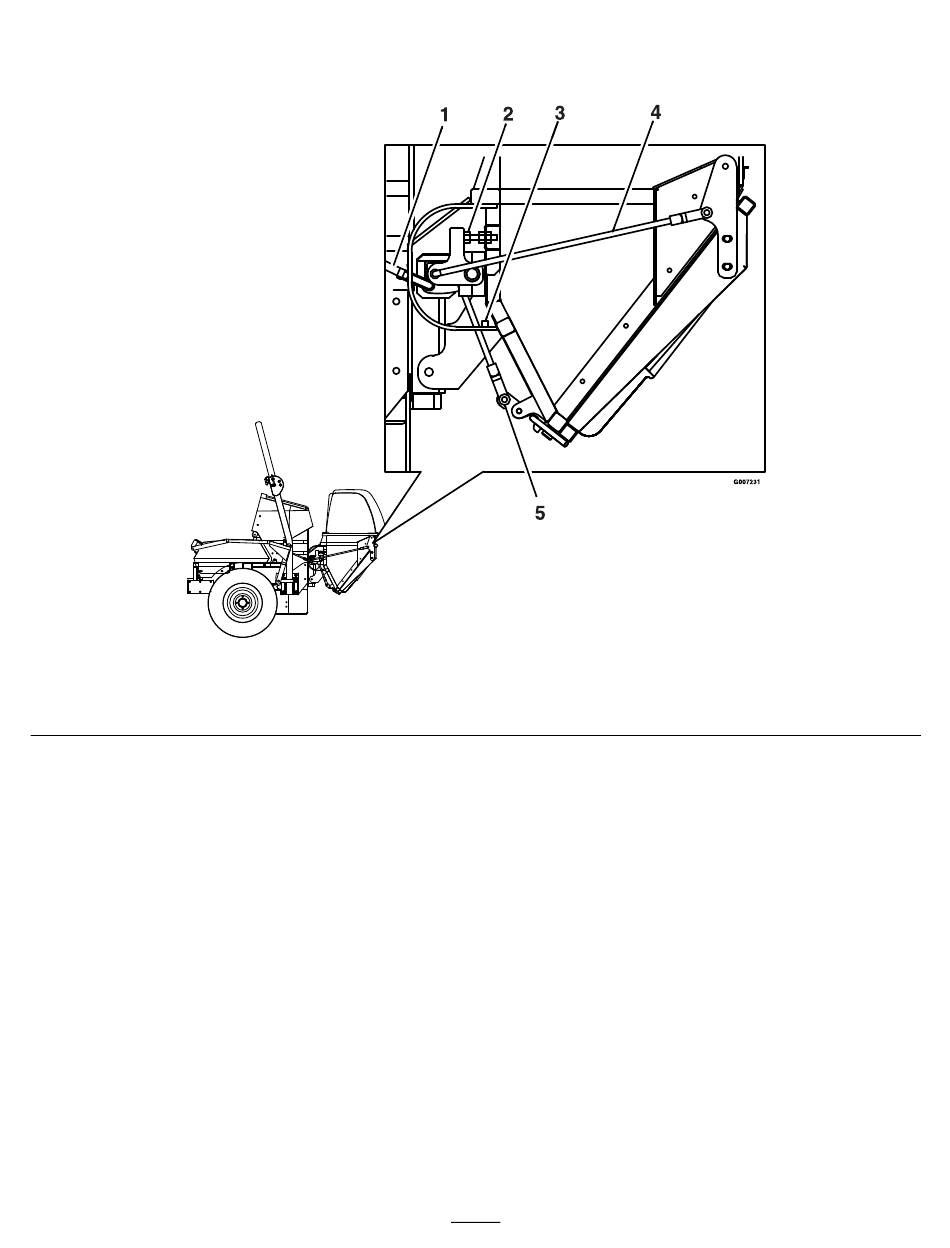

Figure 27
3. Stop
4. Hinge Links
17
5. Latches
