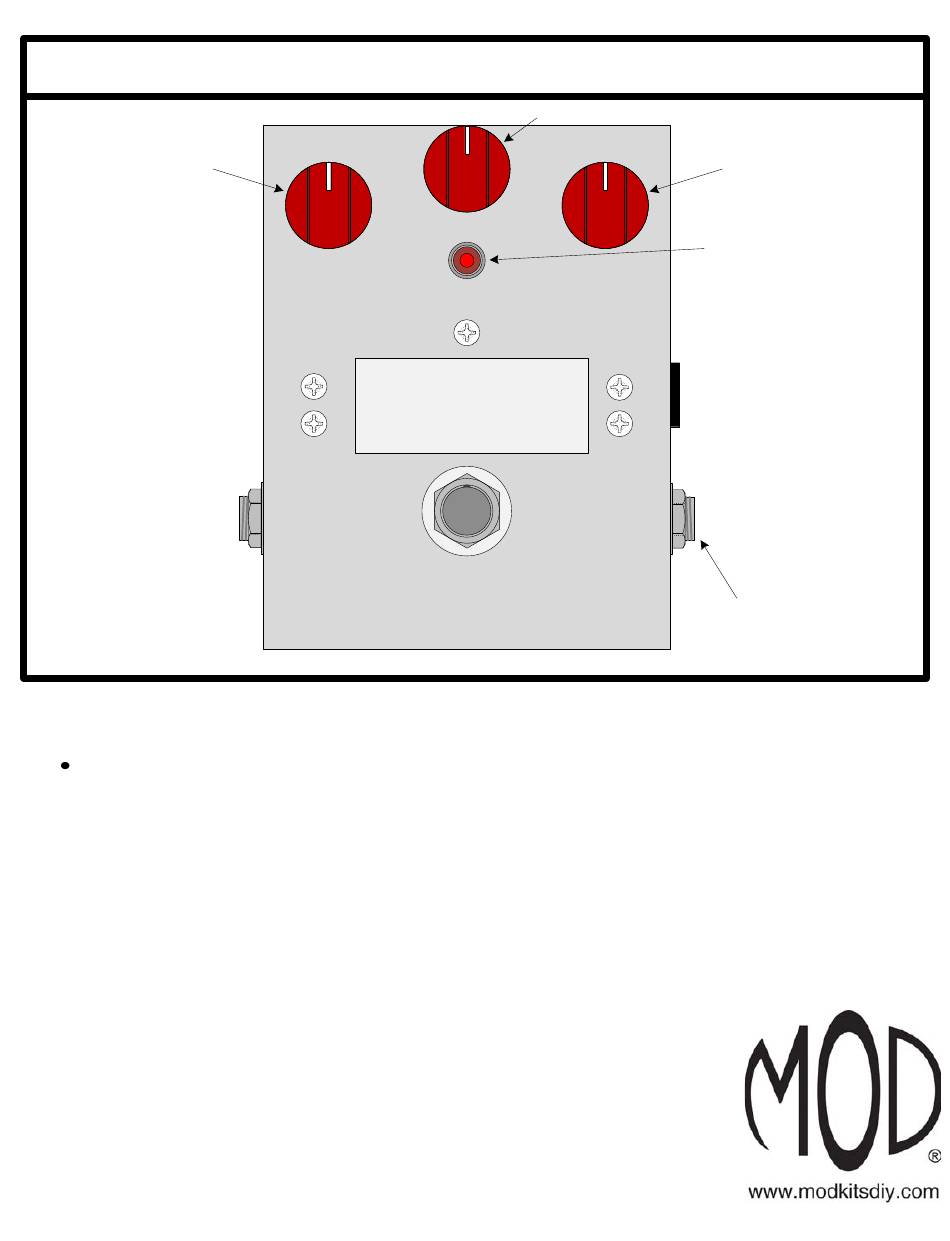

THE CONTORTIONIST II (K-965)
TONE
VOLUME
FUZZ
LED
9 VDC
The Contortionist II
CENTER (-)
High Octane Fuzz Box
ADAPTER
Modkitsdiy.com
TO
FROM
AMP
GUITAR
IN
OUT
Unplug when not in use
to save battery life.
Use these instructions to learn:
How to build an effects pedal for fuzz with non-selective frequency tripler.
The Contortionist II kit is an all analog, high octane fuzz box. It produces fuzz with layered octave
overtones similar to those produced by an electronic-bow. The frequency multiplier circuitry creates
harmonics that swell and recede depending on gain setting, pick attack, neck position and pickup. This is a
high gain circuit that can put out up to 2 volts and will provide ample amounts of sustain.
Added features to the original contortionist circuit include a tone control and LED.
Warning: This circuit was designed for use with a 9 VDC power supply only.
1
Copyright © 2015 by modkitsdiy.com

Advertisement

Table of Contents
loading

Related Manuals for Mod CONTORTIONIST II

Summary of Contents for Mod CONTORTIONIST II

  • Page 1 How to build an effects pedal for fuzz with non-selective frequency tripler. The Contortionist II kit is an all analog, high octane fuzz box. It produces fuzz with layered octave overtones similar to those produced by an electronic-bow. The frequency multiplier circuitry creates harmonics that swell and recede depending on gain setting, pick attack, neck position and pickup.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TOOL LIST p. 2 PARTS LIST DRAWINGS pp. 3, 4 FINAL ASSEMBLY REFERENCE DRAWING p. 5 SOLDERING TIPS p. 6 STEP BY STEP ASSEMBLY INSTRUCTIONS pp. 7 - 11 Section 1 - Mount Large Components p. 7 Section 2 - Wire Large Components p.

  • Page 3: Parts List Drawings

    PARTS LIST 1 Stranded Wire (22 AWG) - Blue 3PDT Foot Switch K-PUL1569-BLUE (4 FT) P-H501 Enclosure P-H1590BBCE-GY Potentiometers (24 mm diameter) R-VA1KL R-VA250KA Mini Potentiometer (16 mm diameter) Wine Red Knob with White Line R-VAM100KA-SS P-K380WN Terminal Strip with 8 Terminals Battery Clip P-0802H S-H155...
  • Page 4 PARTS LIST 2 NPN Darlington (MPSA13) 180 Ω Resistor ½ W P-QMPSA13 R-A180 brown grey brown E B C gold NPN BJT (2N3904TAR) K-P2N3904TAR 1.5kΩ Resistor ½ W 3904 R-A1D5K 1.5K brown E B C green PNP BJT (2N3906) gold K-PQ-2N3906 10kΩ...

  • Page 5: Final Assembly Reference Drawing

    FINAL ASSEMBLY REFERENCE DRAWING This is a large version of the final assembly drawing. Refer to this drawing as you make your way through each step of the instructions. Before you make a new connection at a particular terminal or solder lug, notice how many other connections will be made at that terminal. That way you can decide whether it’s best for you to solder the connection and leave space open for future connections or hold off on soldering until after every connection at that location has been made.

  • Page 6: Soldering Tips

    SOLDERING TIPS It is important to make a good solder joint at each connection point. A cold solder joint is a connection that may look connected but is actually disconnected or intermittently connected. (A cold solder joint can keep your project from working.) Follow these tips to make a good solder joint.

  • Page 7: Step By Step Assembly Instructions

    SECTION 1 – Mount Large Components Please refer to DRAWING 1 and DRAWING 2. The Anode (+) side of the LED is indicated by a slightly longer lead Orient the enclosure with the two 5/16" holes and one 9/32" hole on top. and/or a positive sign.

  • Page 8: Section 3 - Mount Components To Terminal Strips

    Please note that each terminal has been numbered as illustrated here and will be referred to as a “terminal #_” when connecting different components and wires throughout the assembly instructions. Strip and tin a 2" piece of wire and connect footswitch lug 8 to the output jack's tip lug.
  • Page 9 Connect the 0.1µF cap to terminals #2 and #4. This should be mounted upside down to allow room for other components to be mounted later in the instructions. There will be two more components connected to terminal #4 so do not solder at #4, yet. Connect the 3M resistor to terminals #4 and #5.

  • Page 10: Section 4 - Finishing Up

    Locate the battery snap connector. Connect its red wire to the power jack's "positive switch" lug and connect its black wire to the input jack's ring lug POSITIVE-SWITCH LUG SECTION 4 – Finishing Up It’s always a good idea to thoroughly double-check your connections before applying power. This will minimize the risk of damaging components.

  • Page 11: Assembly Drawings (4 Drawings)

    DRAWING 1 9/32" 5/16" 5/16" 1/4" 1/8" INSIDE VIEW OF THE 1/8" 1/8" ENCLOSURE 15/32" 1/8" 1/8" 15/32" 3/8" 3/8" DRAWING 2 100KA 250KA...
  • Page 12 DRAWING 3 TONE 100KA FUZZ VOLUME 250KA RING SLEEVE SLEEVE DRAWING 4 TONE 100KA FUZZ VOLUME 250KA 22µF 50V 1.5K .0039µ 331K 3906 820K .1µ RING SLEEVE SLEEVE...
