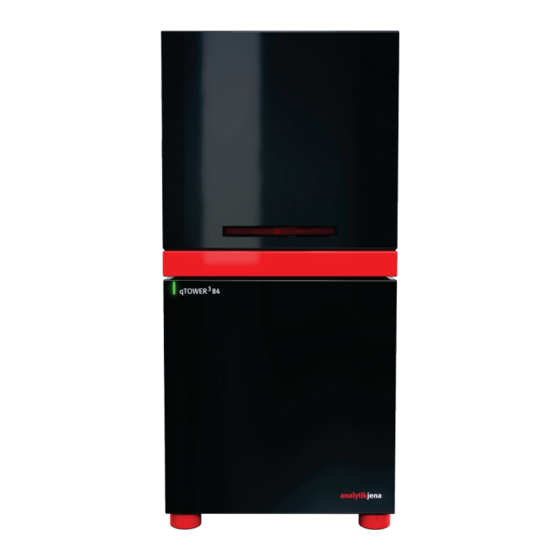

Analytik Jena qTOWER3 84 Operating Manual

Real-time pcr thermal cycler
Hide thumbs Also See for qTOWER3 84:
Table of Contents

Advertisement

Quick Links

Operating manual
qTOWER
84 / qTOWER
84 G
3
3
Real-Time PCR Thermal Cycler

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the qTOWER3 84 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analytik Jena qTOWER3 84

Summary of Contents for Analytik Jena qTOWER3 84

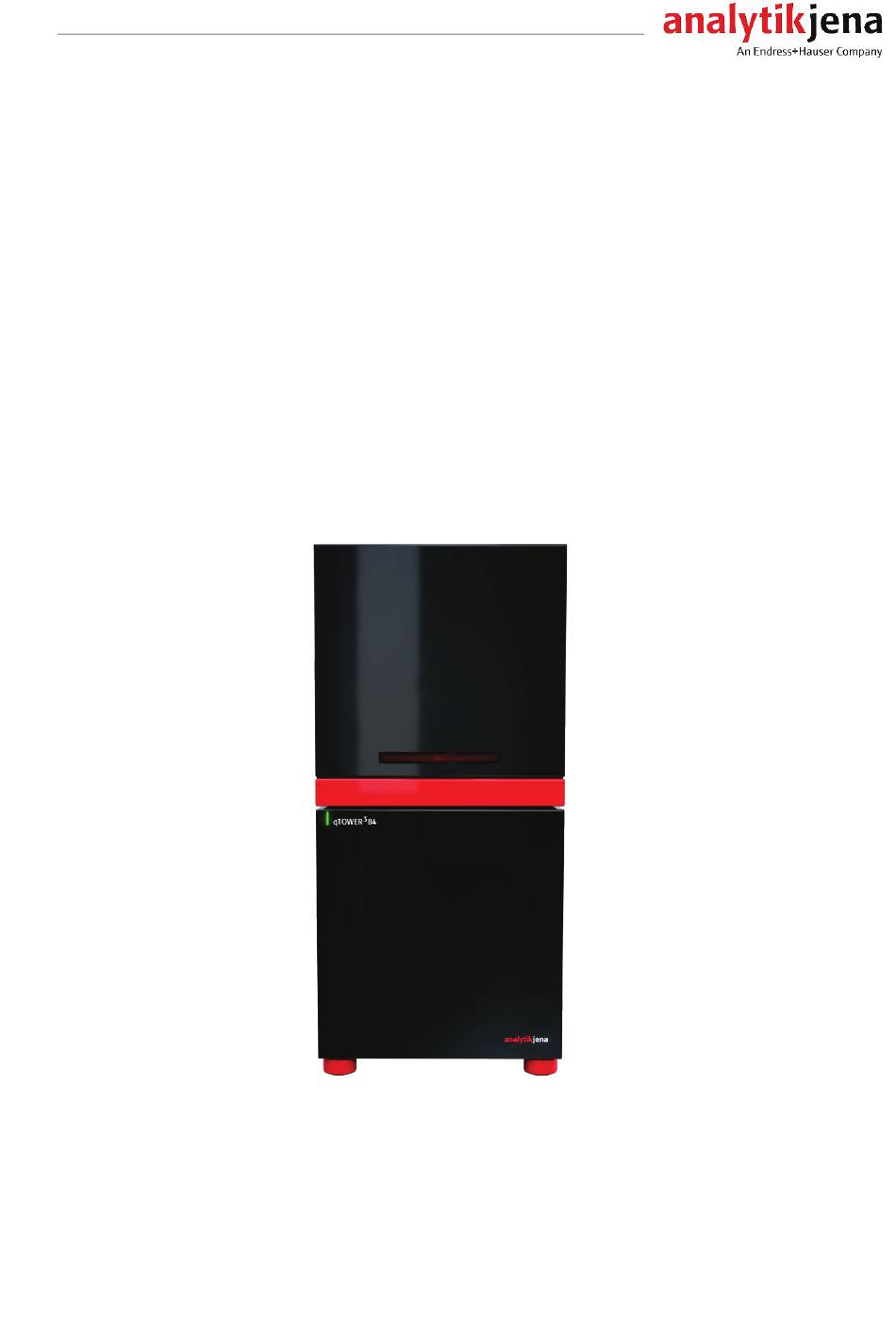

  • Page 1 Operating manual qTOWER 84 / qTOWER 84 G Real-Time PCR Thermal Cycler...
  • Page 2 Microsoft and Windows are registered trademarks of Microsoft Corp. Copyrights and The identification with ® or TM is omitted in this manual. Trademarks 10-3107-072-23 Documentation number 02.19 Output Analytik Jena AG Technical documentation made by: © Copyright 2019 Analytik Jena AG...

  • Page 3: Table Of Contents

    Contents Contents Basic Information ................. 3 Notes on the manual ..................3 Intended use ....................3 Warranty and liability ..................5 Safety instructions ................6 Symbols and signal words used ..............6 Safety symbols on the qTOWER³ 84 ............. 8 Technical condition ..................
  • Page 4 Contents Maintenance and care ............... 32 Cleaning the housing ..................32 Cleaning the sample block ................32 Disinfecting the device ................. 33 Exchanging fuses ..................34 Installing color modules ................35 Troubleshooting ................39 Transport and storage ..............40 10.1 Transport ......................

  • Page 5: Basic Information

    Basic Information Basic Information Notes on the manual The user manual describes the following two models of the qTOWER 84 series: qTOWER  qTOWER 84 G  In the text below these devices are collectively called qTOWER 84. Differences be- tween the models are explained in the corresponding section.
  • Page 6 Basic Information Analytik Jena AG offers a number of color or FRET modules of which up to six can be installed simultaneously in the device. Replacement and retrofit of color or FRET mod- ules can be easily accomplished. qTOWER³ 84 is an open platform for real-time PCR and supports both intercalating dyes as well as individual samples and kits of various manufacturers.

  • Page 7: Warranty And Liability

    84 other than intended  improper commissioning, operation and servicing of the device  modifications of the equipment without prior consultation with Analytik Jena AG  unauthorized intervention in the equipment  operation of the device with faulty safety equipment ...

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Symbols and signal words used This manual uses the following symbols and signal words to indicate hazards or in- structions. The safety instructions are always placed before an action. WARNING Indicates a potentially hazardous situation. If it is not prevented death or most serious injuries (incapacitation) can result. CAUTION Indicates a potentially hazardous situation.
  • Page 9 Safety instructions In this manual, on the product itself, and on the packaging, the following symbols are used to present important information to the customer, regardless of which language they speak. CE marking Manufacturer of the product, including address Manufacturing date of the product Order number of the product Temperature limit Serial number of the device...

  • Page 10: Safety Symbols On The Qtower³ 84

    Safety instructions Safety symbols on the qTOWER³ 84 The qTOWER³ 84 is fitted with safety symbols, the content of which must always be observed. Damaged or missing safety symbols can cause incorrect actions leading to personal injury or material damage! The safety symbols must not be removed! Dam- aged safety symbols must be replaced without delay! The following safety symbols are attached to the qTOWER³...

  • Page 11: Requirements For The Operating Personnel

    Safety instructions Requirements for the operating personnel The qTOWER³ 84 must only be operated by qualified specialist personnel instructed in the use of the device. The instructions also include imparting the contents of this manu- In addition to the safety at work instructions in this manual the generally applicable safe- ty and accident prevention regulations of the respective country of operation must be observed and adhered to.

  • Page 12: Safety Instructions, Transport And Installation

    The guide values and statutory limits for lifting and carrying loads without auxiliary equipment must be observed and adhered to. The qTOWER³ 84 can be installed by the Analytik Jena AG customer service or trained specialist personnel authorized by Analytik Jena AG.

  • Page 13: Safety Instructions - Protection Against Explosion And Fire

    84! Observe the following: Any work on the interior of the device may only be carried out by the customer  service of Analytik Jena AG and specially authorized technicians. qTOWER 84 / qTOWER 84 G...

  • Page 14: Handling Of Samples, Auxiliary And Operating Materials

    Safety instructions The electrical components must be checked regularly by a qualified electrician.  Any defects, such as loose connections, faulty or damaged cables, must be re- paired without delay. Do not replace the removable mains cable of the device by a mains cable that ...

  • Page 15: Safety Instructions - Service And Repair

    Safety instructions - service and repair On principle, maintenance of the qTOWER³ 84 is performed by the customer service department of Analytik Jena AG or its authorized and trained specialist personnel. Un- authorized maintenance can damage the device. Therefore, the operator may generally only carry out the tasks listed in chapter "Maintenance and care"...

  • Page 16: Behavior During Emergencies

    Safety instructions Behavior during emergencies In case of danger or accidents, immediately switch off the qTOWER³ 84 using the main switch on the equipment backplate. Disconnect the power plug from the power supply! Because a rapid response can save lives during an emergency, the following has to be ensured: The operating staff must be familiar with the location of safety equipment, acci- ...

  • Page 17: Standards And Directives

    Safety instructions Standards and directives Safety class and safety type The qTOWER³ 84 features protection class I. The casing features protection type IP 20. Device safety The qTOWER³ 84 complies with the safety standards EN 61010-1:2010  UL 61010-1:2012  CAN/CSA-C22.2 No.
  • Page 18 Methods for the Restriction of the Use of Hazardous Substances in Electrical and Elec- tronic Products"). Analytik Jena guarantees, that those hazardous substances may not leak out during the next 25 years when the instrument is used in accordance with its intended purpose.

  • Page 19: Technical Data

    Technical data Technical data 384 wells Block format 10 – 20 µL Sample volume 30 – 110 °C Lid temperature 25 °C (qTOWER 84 G only) Temperature gradient max. 4 °C/s, 3.8 °C/s Max. heating rate* Ø (depending on consumables used) max.
  • Page 20 Technical data 384-well PCR plates with optical sealingfilm Supported plastic products 1 nmol/l FAM at 30 µl sample volume in a Sensitivity 384-well PCR plate 384-well PCR plate (single measurement, 6 colors) Measuring time approx. 6 s ±130 000 (±17 bit) Measuring range 10 log stages Dynamic range...

  • Page 21: Installation Conditions

    Installation conditions Installation conditions Environmental conditions The following requirements are placed on the climatic conditions in the operating room of the qTOWER³ 84: Operation Transport, Storage +15 °C to +35 °C -10 °C to +55 °C Temperature range 70 % 10 % to 30 % Max.

  • Page 22: Space Requirement

    Installation conditions Switching-on conditions Energy supply 100 V, 115 V, 230 V Operating voltage 50 – 60 Hz Line frequency max. 850 W Power consumption Instrument fuses Instrument fuses Mains voltage 2 x 10 AT / 250 V 100 V, 115 V, 230 V Space requirement NOTICE When opening the qTOWER³...

  • Page 23: Function And Setup

    Function and setup Function and setup The qTOWER³ 84 combines a PCR thermocycler with a patented fluorescence photom- eter. upper part with fluorescence pho- tometer heated lid Sample block thermal cycler Fig. 1 Layout of the qTOWER³ 84 Fluorescence spectrometer A 16-channel Epi fluorescence photometer with fiber -multiplexer and mechanical scan- ning device is used as detector.

  • Page 24: Fig. 2 Schematic Structure Of The Epi Fluorescence Photometer

    Function and setup The fluorescence dyes then emit a light of longer wavelength that is bundled through the lenses in the shuttle system and passed via the optic fibers back to the color mod- ules. In the color modules the light passes the beam divider followed by two emission filters and is then transferred to the photomultiplier (CPM) for detection.

  • Page 25: Pcr Thermocycler

    Function and setup PCR thermocycler The qTOWER³ 84 is equipped with a thermal block with 384 wells. The thermal block consists of very good heat-conducting aluminum. This achieves a high temperature homogeneity and uniformity in combination with heating rates of up to 4 °C/s and cool- ing rates of up to 2 °C/s.

  • Page 26: Commissioning

    Commissioning Commissioning Prior to commissioning, check that all requirements are fulfilled at the installation loca- tion (see section "Installation conditions" p. 19). Connections and control elements Upper part with fluorescence- spectrometer Lock with handle LED for status display Lower part with thermal cycler Fig.

  • Page 27: Fig. 5 Qtower³ 84 Rear View

    Commissioning The qTOWER³ 84 is opened by folding back the upper part and the cover for the sam- ple block it contains and the fluorescence photometer. To this end press the handle in until the lock disengages with a click and the upper part gently snaps open. The upper part can then be folded back from the handle.

  • Page 28: Fig. 6 Type Plate

    Commissioning Manufacturer and address CE mark Protection class of the housing Electrical connection data: Safety symbol Voltage, max. power consumption, frequency and (Attention! Note the accompanying documents!) instrument fuses Device number Serial number Manufacturing year Order number Disposal instructions Device type and model (Do not dispose of as domestic waste!) Fig.

  • Page 29: Setting Up The Qtower 3 84

    Commissioning Mains cable USB cable for PC connection Fig. 8 Mains and connection cable Use only the supplied mains cable or a mains cable with the same specifications. Setting up the qTOWER WARNING! Risk of electric shock! Do not touch! Check that the mains connection conditions match those on the type label on the device backplate.
  • Page 30 Commissioning Place the device on its side. Check the set operating voltage. Use the voltage selection switch (Fig. 7 S. 26) to adjust the operating voltage to the mains voltage. Adjust the switch using a screwdriver or a coin so that the arrow points in the di- rection of the mains voltage available on site.

  • Page 31: Operation

    Operation Operation Switching the qTOWER³ 84 on Observe the following sequence when switching on the device: Switch on the qTOWER³ 84 using the mains switch on the back of the device. Start the qPCRsoft384 program.  The qTOWER³ 84 is ready for operation. The green status LED lights up. If you have started the qPCRsoft384 software before switching on the device, e.g.

  • Page 32: Inserting Samples / Starting The Pcr Analysis

    PCR plates with 384 wells. These and other consumables can be ordered from Analytik Jena AG. After pipetting the PCR samples into the wells these must be sealed with a transparent optical adhesive film (sealing film). The optical transparency of the films affects the fluo- rescence signal directly.

  • Page 33: Fig. 9 Position A1 On The Sample Block

    Operation Fig. 9 Position A1 on the sample block Close the lid. To do so, fold the lid forward and press it down from the handle until the lock engages with a click. Start the PCR run in the qPCRsoft384 program. qTOWER 84 / qTOWER 84 G...

  • Page 34: Maintenance And Care

     All maintenance work and repairs beyond this scope must only be performed by Analyt- ik Jena AG customer service personnel or persons authorized by Analytik Jena AG. Any unauthorized interference limits warranty entitlements. If the device exhibits any faults or details, please contact the Analytik Jena AG customer service immediately.

  • Page 35: Disinfecting The Device

    If the qTOWER 84 has to be sent to Analytik Jena AG for service, a prior de-  contamination must be carried out and documented (see "Return" p. 41).

  • Page 36: Exchanging Fuses

    Fuse holder on the rear of the device If the fuses melt repetitively have the qTOWER 84 checked by Analytik Jena AG cus- tomer service personnel or by persons authorized by Analytik Jena AG. Edition 02.19 qTOWER 84 / qTOWER...

  • Page 37: Installing Color Modules

    Maintenance and care Installing color modules Depending on the delivery state of the qTOWER³ 84 or when purchasing additional color modules, it might be necessary to install the color modules in the device. The top device hood must be removed for this purpose. NOTICE Sensitive optics! Do not remove the interior hood, because there are underneath sensitive optical elements.
  • Page 38 Maintenance and care  The pivotable holder for the color modules is now accessi- ble. Note the code on the color module and the position in which the color module is to be installed. Place the color module onto the free position with the pin pointing down.
  • Page 39 Maintenance and care 11. Rotate the wheel with the installed color modules and check whether the color modules grind against the lid. If this is the case, loosen the screw connection of the color module, check its position and retighten the screws. NOTICE Do not attempt to force a jammed color module into the correct position simply by tighten- ing it further.
  • Page 40 Maintenance and care 18. From the list, select the module installed in the device. Activate the P checkbox and select the position in which the module is ROPERTIES installed in the device. If necessary, add dye names, if these have not yet been included in the list.

  • Page 41: Troubleshooting

    These are listed in the following chapter. All maintenance work and repairs beyond this scope must only be performed by Analytik Jena AG customer service personnel or by persons authorized by Analytik Jena AG. Any unauthorized interference limits warranty entitlements.

  • Page 42: Transport And Storage

    Transport and storage Transport and storage 10.1 Transport NOTICE Use suitable packaging material and transport locks! Unsuitable packaging material may cause damage to the device! Only transport the qTOWER 84 in its original packaging and with the transport lock in place! Information on proper packaging is included with the device.

  • Page 43: Return

    Before returning the device to Analytik Jena AG perform a professional decontamination. NOTICE Analytik Jena AG must refuse acceptance of contaminated devices. The sender may be liable for any damage caused by inadequate decontamination of the device. Please clean all device components from biologically hazardous, chemical and ...

  • Page 44: Storage

    Disposal For the setup at the new location observe the notes in section "Installation con-  ditions" p. 19. 10.5 Storage NOTICE Possible device damage due to environmental conditions and condensation water. The device must only be stored in air-conditioned rooms. The atmosphere must be low in dust and free from aggressive vapors.
