Analytik Jena UV lamp Operating Manual

Decontamination set for innupure c16
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
UV lamp
Decontamination set for
InnuPure C16
Operating manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UV lamp and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analytik Jena UV lamp

Summary of Contents for Analytik Jena UV lamp

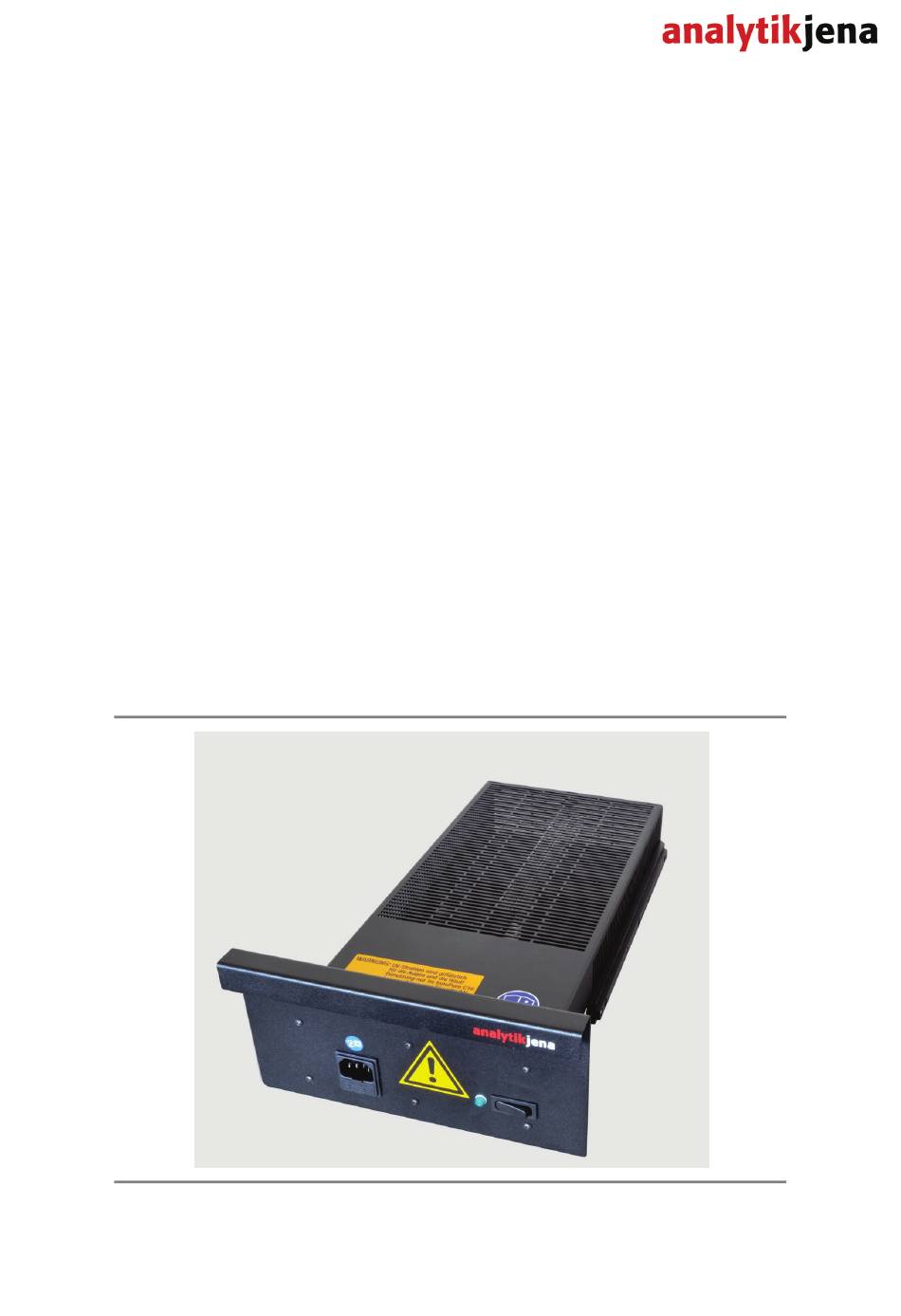

  • Page 1 UV lamp Decontamination set for InnuPure C16 Operating manual...
  • Page 2 + 49 (0) 36 41 77-94 11 Fax: + 49 (0) 36 41 77-76 77 76 E-mail: service@analytik-jena.de General information about Analytik Jena AG on the internet: http://www.analytik-jena.de Documentation number: 10-3221-010-23 Edition – March 2013 Implementation of the Technical Documentation: Analytik Jena AG This publication describes the state of this product at the time of publishing.

  • Page 3: Table Of Contents

    Switching on the UV lamp for the InnuPure C16 ..........14 Switching off the UV lamp for the InnuPure C16 ..........15 Setting the operating time of the UV lamp with the time relay ......15 Operating time in dependence of coding & setting value ........16 Maintenance and care ....................
  • Page 4 Figures Figures Fig. 1 Safety marks on front and top of the UV lamp ............7 Fig. 2 UV-C radiation killing microorganisms [1] ............... 11 Fig. 3 Total view of the UV lamp for the InnuPure C16 ............ 12 Fig. 4 Time relay on the right side of the device ...............

  • Page 5: Basic Information

    "Safety notes". Intended use The UV lamp is an optional accessory for the InnuPure C16 and is used for the internal con- tamination. The InnuPure C16 is a flexible and efficient extraction system for the fully auto- mated isolation and purification of nucleic acid in chemical and biological laboratories.

  • Page 6: Warranty And Liability

    Warranty and liability claims are excluded for personal injury and property damage due to one or several of the following causes: usage of the UV lamp for the InnuPure C16 not according to the intended purpose   improper commissioning, operation and service of the UV lamp ...

  • Page 7: Technical Data

    5 – 35 °C eration Humidity during opera- Max. 80 % at +30 °C tion Temperature during -10 – 55 °C storage Humidity during storage Max. 80 % (use desiccant) Protection type IP 20 UV lamp for InnuPure C16 Edition 03/2013...

  • Page 8: Safety Instructions

    Safety instructions General notes For your own safety and to ensure an error-free and safe operation of the UV lamp for the InnuPure C16, please read this chapter carefully before using the appliance. Follow all safety instructions described in this user manual.

  • Page 9: Safety Marks Of The Uv Lamp For The Innupure C16

    Safety instructions Safety marks of the UV lamp for the InnuPure C16 Safety and notice symbols have been attached to the UV lamp for the InnuPure C16 whose content must always be observed. Damaged or missing safety and notice symbols can cause incorrect actions leading to per-...

  • Page 10: Technical Condition

    Safety instructions Technical condition The UV lamp for the InnuPure C16 corresponds in its design and construction to the current state of the art technology. Unauthorized modifications or changes, especially such that af- fect the safety of the staff and the environment, are generally not allowed.

  • Page 11: Handling Hazardous Substances

    Safety instructions for operation  The operator of the UV lamp for the InnuPure C16 must make sure that the condi- tion of the device including the safety equipment is sound before each commission- ing. This applies in particular after each modification or extension of the UV lamp or its repair.

  • Page 12: Behavior During Emergencies

    Safety instructions The housing parts of the UV lamp are not resistant to the following substances:  hydrogen fluoride (HF/hydrofluoric  gasoline acid)  acetone  highly concentrated acids  cleaning spray  cleaning powder  ozone  paint thinner naphtha ...

  • Page 13: Technical Description

    Beside the mains connection, the device front provides the button to switch on the UV lamp. During operation of the UV lamp, the green status LED is lit. The time relay for setting the operation time is located on the right side of the device. The factory setting is 30 minutes. A safety switch for monitoring the device environment is located on the left side of the device.

  • Page 14: Fig. 3 Total View Of The Uv Lamp For The Innupure C16

    Circuit closer Fuse holder Status LED of the UV lamp Fig. 3 Total view of the UV lamp for the InnuPure C16 Fig. 4 Time relay on the right side of the device Fig. 5 Safety switch on the left side of the device...

  • Page 15: Site Requirements

    InnuPure C16 must be switched off! Due to danger of tipping, the storage of the UV lamp on the upper level of the priming station of the InnuPure C16 is only possible when the upper rear stopper plate is removed! After removing the rear stopper, the front stopper can be slid into the priming station.

  • Page 16: Startup/Operation

    Startup/operation CAUTION! The InnuPure C16 must be switched off before the UV lamp is inserted and the door of the InnuPure C16 must be closed. The UV lamp must be completely slid into the InnuPure C16 before the mains plug may be connected to the mains socket.

  • Page 17: Switching Off The Uv Lamp For The Innupure C16

    Remove the UV lamp from the InnuPure C16. CAUTION! Warming of the housing in the illumination area! Depending on the operating time, the housing of the UV lamp may be heated up to 60° in the illumination area. Setting the operating time of the UV lamp with the time relay Depending on the coding of the DIP switches (1, 2, 3), the operating time of the UV lamp can be set with the dial.

  • Page 18: Operating Time In Dependence Of Coding & Setting Value

    Setting value of: Time relay 0.5 (minimum) 0.05s 0.,5s 0.5min 5min 0.5h 0.1s 1min 10min 0.5s 5min 50min 10 (maximum) 100s 10min 100min 100h Fig. 8 Operating time of the UV lamp at different settings Edition 03/2013 UV lamp for InnuPure C16...

  • Page 19: Maintenance And Care

    Meliseptol HBV – cloths B. Braun company  If the UV lamp of an InnuPure C16 has to be sent to Analytik Jena AG for service after infectious material has been processed with it, a prior decontamination must be carried out and documented.

  • Page 20: Changing The Fuse

    CAUTION! Electric shock! Disconnect the mains plug before changing fuses! If the fuse of the UV lamp is faulty, you can replace it. The fuse holder comprises an addi- tional fuse for the first exchange. Disconnect the mains plug from the mains socket.

  • Page 21: Transport And Storage

    Environmental influences and condensate formation can destroy individual components of the UV lamp! The storage atmosphere of the UV lamp must be low in dust and free from aggressive va- pors. If the device is not installed immediately after delivery or not required for prolonged periods, it should be stored in its original packaging.

  • Page 22: Disposal

    Disposal Disposal ENVIRONMENTAL PROTECTION At the end of its service life, the UV lamp for the InnuPure C16 and all its electronic compo- nents must be disposed of in accordance with the applicable regulations as electronic waste. Edition 03/2013 UV lamp for InnuPure C16...
