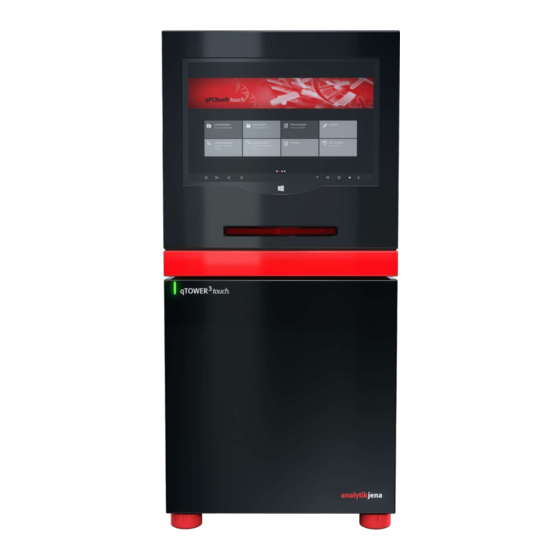

Analytik Jena qTOWER3 touch Operating Manual

Real-time pcr thermal cycler
Hide thumbs Also See for qTOWER3 touch:
Table of Contents

Advertisement

Quick Links

Operating manual
qTOWER
touch/qTOWER
G touch
3
3
Real-Time PCR Thermal Cycler

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the qTOWER3 touch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analytik Jena qTOWER3 touch

Summary of Contents for Analytik Jena qTOWER3 touch

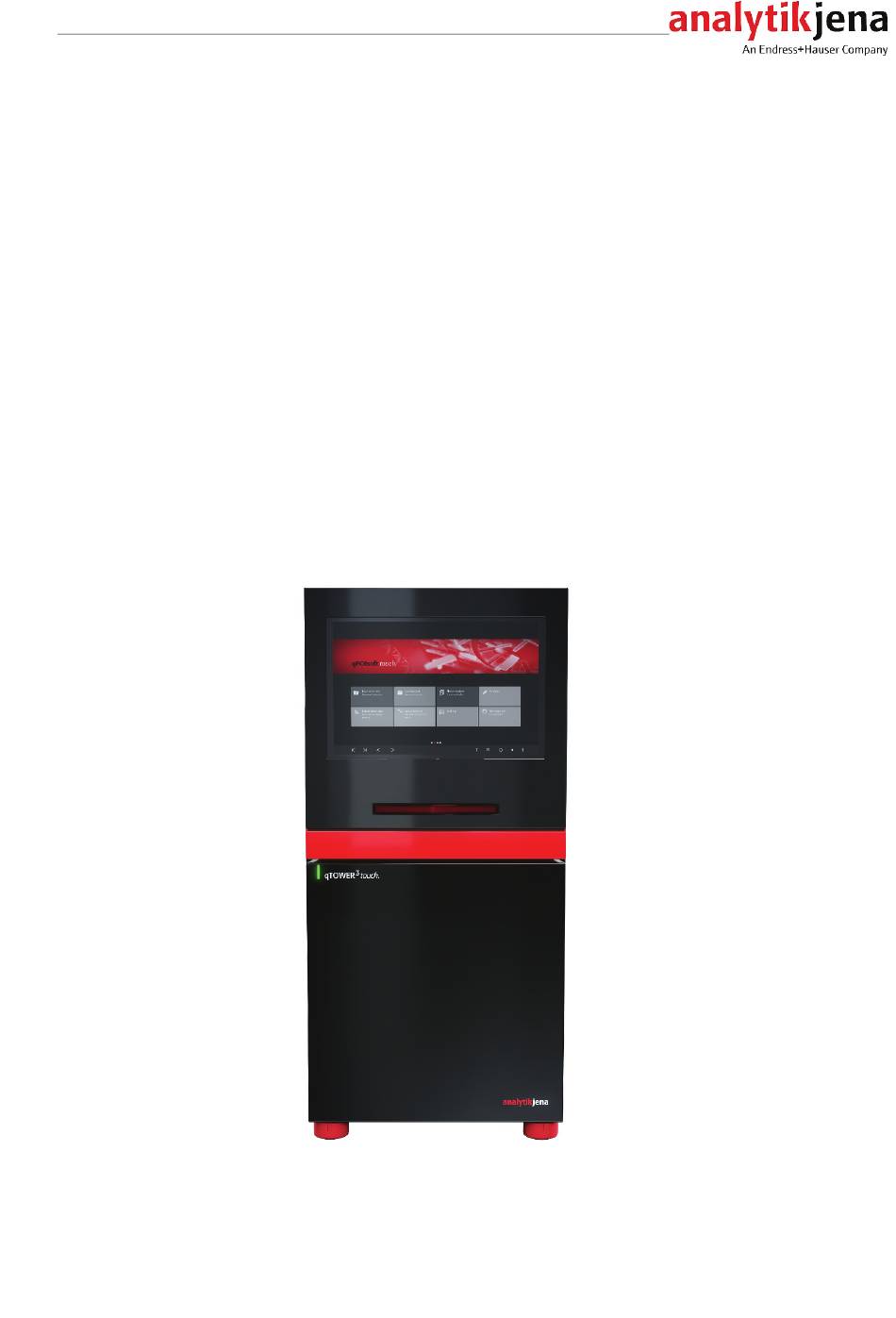

  • Page 1 Operating manual qTOWER touch/qTOWER G touch Real-Time PCR Thermal Cycler...
  • Page 2 General Information Microsoft and Windows are registered trademarks of Microsoft Corp. Copyrights and The identification with ® or TM is omitted in this manual. Trademarks 10-3107-032-23 Documentation number 04.19 Output Analytik Jena AG Technical documentation © Copyright 2019 Analytik Jena AG...

  • Page 3: Table Of Contents

    qTOWER touch/qTOWER G touch Contents Contents Basic Information ......................5 Notes on the manual ....................5 Intended use ....................... 5 Warranty and liability....................6 Safety instructions ......................7 Symbols and signal words used ................... 7 Safety symbols on the qTOWER³ touch ............... 9 Technical condition .....................
  • Page 4 Contents qTOWER touch/qTOWER G touch Figures Fig. 1 Layout of the qTOWER³ touch ................15 Fig. 2 Schematic structure of the Epi fluorescence photometer ....... 16 Fig. 3 qTOWER³ touch front view ................18 Fig. 4 Connections and control elements (right-side) ..........19 Fig.

  • Page 5: Basic Information

    PCR products. Analytik Jena AG offers a number of color or FRET modules of which up to six can be installed simultaneously in the device. Replacement and retrofit of color or FRET mod- ules can be easily accomplished.

  • Page 6: Warranty And Liability

     use of the qTOWER³ touch other than intended  improper commissioning, operation and servicing of the device  modifications of the equipment without prior consultation with Analytik Jena AG  unauthorized intervention in the equipment  operation of the device with faulty safety equipment ...

  • Page 7: Safety Instructions

    qTOWER touch/qTOWER G touch Safety instructions Safety instructions Symbols and signal words used This manual uses the following symbols and signal words to indicate hazards or in- structions. The safety instructions are always placed before an action. WARNING Indicates a potentially hazardous situation. If it is not prevented death or most serious injuries (incapacitation) can result.
  • Page 8 Safety instructions qTOWER touch/qTOWER G touch In this manual, on the product itself, and on the packaging, the following symbols are used to present important information to the customer, regardless of which language they speak. CE marking Manufacturer of the product, including address Manufacturing date of the product Order number of the product Temperature limit...

  • Page 9: Safety Symbols On The Qtower³ Touch

    qTOWER touch/qTOWER G touch Safety instructions Safety symbols on the qTOWER³ touch The qTOWER³ touch is fitted with safety symbols, the content of which must always be observed. Damaged or missing safety symbols can cause incorrect actions leading to personal injury or material damage! The safety symbols must not be removed! Dam- aged safety symbols must be replaced without delay! The following safety symbols are attached to the qTOWER³...

  • Page 10: Safety Instructions, Transport And Installation

    For suitable disinfection agents and procedures see "Disinfecting the device" p. 27. Other disinfection agents that are not included in the list shall only be used after consultation with Analytik Jena. Safety instructions, transport and installation Observe the following: ...

  • Page 11: Safety Instructions - Operation

    The guide values and statutory limits for lifting and carrying loads without aux-  iliary equipment must be observed and adhered to. The qTOWER³ touch can be installed by the Analytik Jena AG customer service or trained specialist personnel authorized by Analytik Jena AG. Safety instructions - operation 2.6.1...

  • Page 12: Safety Instructions - Protection Against Explosion And Fire

    Observe the following:  Any work on the interior of the device may only be carried out by the customer service of Analytik Jena AG and specially authorized technicians.  The electrical components must be checked regularly by a qualified electrician. Any defects, such as loose connections, faulty or damaged cables, must be repaired without delay.

  • Page 13: Handling Of Samples, Auxiliary And Operating Materials

    Safety instructions - service and repair On principle, maintenance of the qTOWER³ touch is performed by the customer service department of Analytik Jena AG or its authorized and trained specialist personnel. Unauthorized maintenance can damage the device. Therefore, the operator may gen- erally only carry out the tasks listed in chapter "Maintenance and care"...

  • Page 14: Behavior During Emergencies

    Safety instructions qTOWER touch/qTOWER G touch  Do not use alcohol (e.g. methanol or ethanol), organic solvents or abrasives to clean the device.  Any maintenance on the device may usually only be carried out in the switched-off condition (unless stated otherwise). Behavior during emergencies In case of danger or accidents, immediately switch off the qTOWER³...

  • Page 15: Function And Setup

    qTOWER touch/qTOWER G touch Function and setup Function and setup The qTOWER³ touch combines a PCR thermocycler with a patented fluorescence pho- tometer. The stand-alone system is fully controlled from the integrated 10” tablet PC using the program qPCRsoft touch. Integrated tablet PC Upper part with fluores- cence photometer...

  • Page 16: Pcr Thermocycler

    Function and setup qTOWER touch/qTOWER G touch color modules from all absorption spectra of the standard fluorescent dyes, from the blue through the red excitation range. Fig. 2 Schematic structure of the Epi fluorescence photometer PCR thermocycler The qTOWER³ touch is equipped with a thermal block with 96 wells. To guarantee the best possible performance and heat exchange capability, the thermal block is made from gold-plated silver.

  • Page 17: Commissioning

    qTOWER touch/qTOWER G touch Commissioning Commissioning Prior to commissioning, check that all requirements are fulfilled at the installation location (see section "Installation conditions" p. 17). Installation conditions 4.1.1 Environmental conditions The following requirements are placed on the climatic conditions in the operating room of the qTOWER³...

  • Page 18: Space Requirement

    Commissioning qTOWER touch/qTOWER G touch Switching-on conditions Energy supply Operating voltage 100 V, 115 V, 230 V Line frequency 50 – 60 Hz Power consumption max. 850 W Instrument fuses Mains voltage Instrument fuses 100 V, 115 V, 230 V 2 x 10 AT / 250 V 4.1.3 Space requirement...

  • Page 19: Fig. 4 Connections And Control Elements (Right-Side)

    qTOWER touch/qTOWER G touch Commissioning Flesh USB port for data export Fig. 4 Connections and control elements (right-side) Heated lid Sample block Twistlock Fig. 5 qTOWER³ touch, open The qTOWER³ touch is opened by folding back the upper part and the cover for the sample block it contains and the fluorescence photometer.

  • Page 20: Fig. 6 Qtower³ Touch Rear View

    Commissioning qTOWER touch/qTOWER G touch Fig. 6 qTOWER³ touch rear view Ventilation for fluorescence spectrometer Fuse holder for instrument fuses Ventilation grille at the thermal cycler Mains switch Service connection Type plate Mains connection The type plate is also located on the rear of the device. The type plate shows the serial number of the device and the electrical connection data.

  • Page 21: Setting Up The Qtower 3 Touch

    qTOWER touch/qTOWER G touch Commissioning The voltage selector switch is located on the bottom of the device, behind a cover. It can be used to adjust the operating voltage to the mains voltage. Fig. 8 Voltage selector switch on the bottom of the qTOWER³ touch The following accessories are part of the qTOWER touch: ...
  • Page 22 Commissioning qTOWER touch/qTOWER G touch The following steps are required during the installation of the qTOWER³ touch:  Assemble the color modules (unless installed)  Check that the set operating voltage matches the mains connection conditions  Connect the device to the mains and the PC 1.

  • Page 23: Operation

    qTOWER touch/qTOWER G touch Operation Operation Switching the qTOWER³ touch on Observe the following sequence when switching on the device:  Switch on the qTOWER³ touch using the mains switch on the back of the device (6 in Fig. 6 p. 20). ...

  • Page 24: Switching Off The Qtower³ Touch

    0.2 ml individual tubes, 8 well strips and 96 well micro titer plates. These and other consumables can be ordered from Analytik Jena AG. After pipetting the PCR samples into the wells these must be sealed with a transparent optical adhesive film (sealing film).

  • Page 25: Fig. 11 Position Of Additional Vessels For Measurements With Few Samples

    qTOWER touch/qTOWER G touch Operation Fig. 11 Position of additional vessels for measurements with few samples 1. Prepare a real-time PCR project with complete details about the PCR run, fluores- cence measurements and the sample layout of the PCR plate (see qPCRsoft touch manual).

  • Page 26: Maintenance And Care

     Installation or replacement of color modules All maintenance work and repairs beyond this scope must only be performed by Ana- lytik Jena AG customer service personnel or persons authorized by Analytik Jena AG. Any unauthorized interference limits warranty entitlements. If the device exhibits any faults or details, please contact the Analytik Jena AG customer service immediately.

  • Page 27: Disinfecting The Device

     If the qTOWER touch has to be sent to Analytik Jena AG for service, a prior decon- tamination must be carried out and documented (see "Return" p. 35).

  • Page 28: Exchanging Fuses

    If the fuses melt repetitively have the qTOWER touch checked by Analytik Jena AG customer service personnel or by persons authorized by Analytik Jena AG. Installing color modules Depending on the delivery state of the qTOWER³ touch or when purchasing additional color modules, it might be necessary to install the color modules in the device.
  • Page 29 qTOWER touch/qTOWER G touch Maintenance and care Proceed as follows: 1. Press the button on the qPCRsoft touch start screen to exit the program and to shut down the tablet. 2. Switch off the qTOWER³ touch. 3. Open the lid. Remove the four external screws on the inside of the lid.
  • Page 30 Maintenance and care qTOWER touch/qTOWER G touch 8. Note the color of the color module and the position in which the color module is to be installed. Remove the old color module or the dummy element installed in this position. To this end, unscrew the two screws M2 and pull the color module out.
  • Page 31 qTOWER touch/qTOWER G touch Maintenance and care 15. Push the hood back in its initial position. 16. First tighten the four outer screws at the upper part on the backplate of the qTOWER³ touch. 17. Open the lid and fasten the four outer screws on the inside of the lid.
  • Page 32 Maintenance and care qTOWER touch/qTOWER G touch 22. Tap to select the position in which the color module was installed. A list opens showing all 12 color modules available (Blue, Green, Yellow, etc.) 23. Tap to select the corresponding color module. For positions that are occupied with a dummy element select N in the list.

  • Page 33: Troubleshooting

    These are listed in the following chapter. All maintenance work and repairs beyond this scope must only be performed by Analytik Jena AG customer ser- vice personnel or by persons authorized by Analytik Jena AG. Any unauthorized inter- ference limits warranty entitlements.

  • Page 34: Transport And Storage

    Transport and storage qTOWER touch/qTOWER G touch Transport and storage Transport NOTICE Use suitable packaging material and transport locks! Unsuitable packaging material may cause damage to the device! Only transport the qTOWER touch in its original packaging and with the transport lock in place! Infor- mation on proper packaging is included with the device.

  • Page 35: Return

     Only use the original packaging for the shipment and insert the transport lock. If the original packaging is no longer available, please contact Analytik Jena AG or your local distributor.  Please attach the warning note...

  • Page 36: Moving The Qtower³ Touch In The Laboratory

    Transport and storage qTOWER touch/qTOWER G touch  Please include a sheet containing the following data: Name and address of the sender  Name and telephone number of a contact for inquiries  A detailed description of the fault, the precise conditions and situations under ...

  • Page 37: Disposal

    qTOWER touch/qTOWER G touch Disposal Disposal The operator of the qTOWER³ touch must dispose the waste materials that occur dur- ing measurements (sample materials) in accordance with the statutory and local regu- lations. At the end of its service life, the qTOWER³ touch and all its electronic components must be disposed of as electronic waste in accordance with valid regulations.

  • Page 38: Specifications

    Specifications qTOWER touch/qTOWER G touch Specifications 10.1 Technical data Block format 96 wells Sample volume 10 – 100 µL Lid temperature 30 – 110 °C 40°C - qTOWER G touch only Temperature gradient Max. heating rate* max. 8°C/s, 7°C/s Ø (depending on consumables used) Max.

  • Page 39: 10.2 Standards And Directives

    qTOWER touch/qTOWER G touch Specifications Supported plastic products 96-well micro titer plates with optical film 8-well strips 0.2 ml with optical lids 0.2 ml individual vessels with optical lids Sensitivity 1 nmol/l FAM at 30µl sample volume in a 96-well PCR plate Measuring time 96-well plate (single measurement, 6 colors)
  • Page 40 Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products"). Analytik Jena guarantees, that those hazardous substances may not leak out during the next 25 years when the instrument is used in accordance with its intended purpose.

  • Page 41: Index

    qTOWER touch/qTOWER G touch Index Index Maintenance 26 Air pressure 17 Operating temperature 17 Care 26 Cleaning the housing 26 PCR thermocycler 16 Cleaning the sample block 26 Personnel 9 Commissioning 17 Protection type 39 Control elements 18 Rating plate 19 Decontamination 27 Return 35 Device safety 39...
