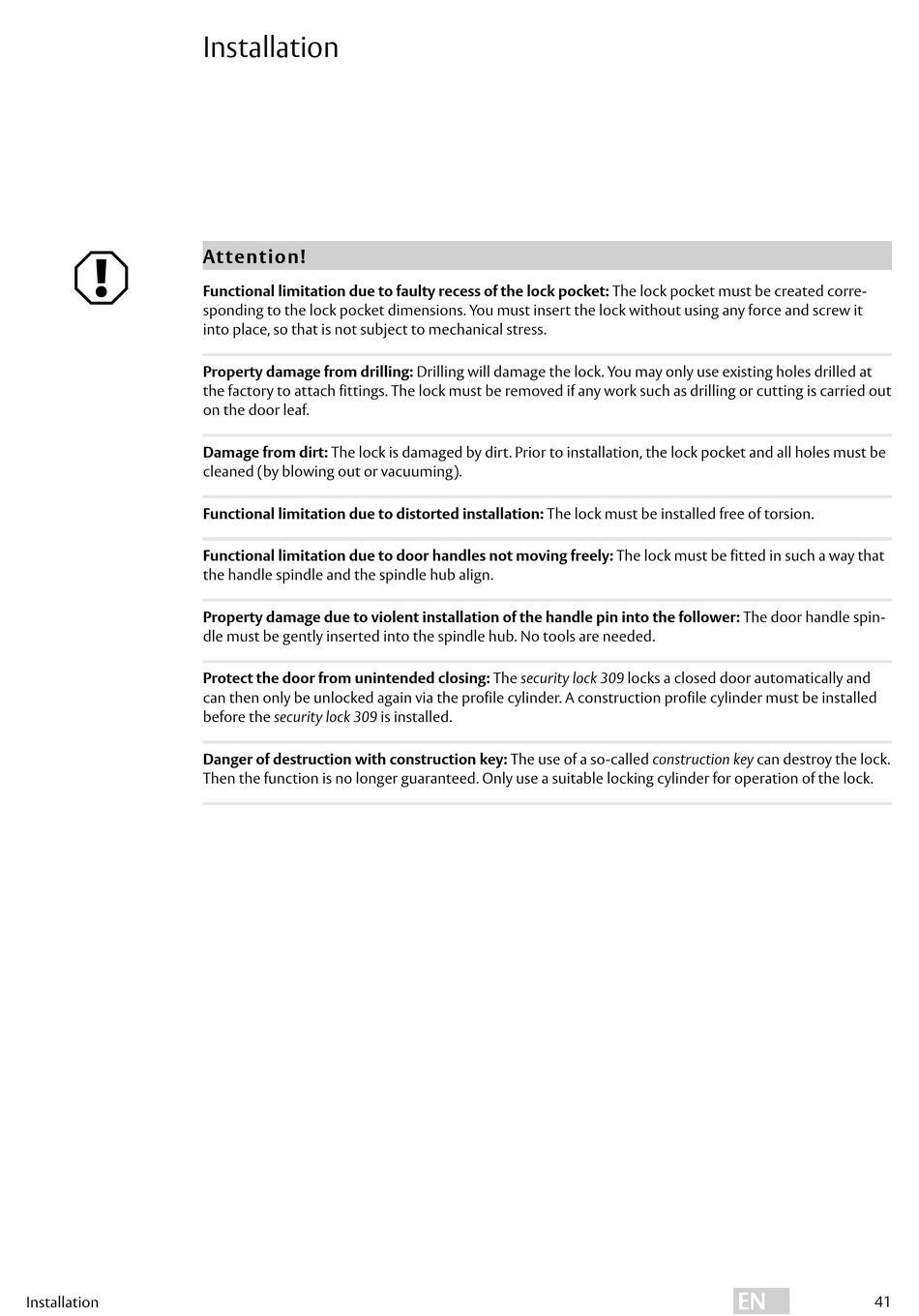

Installation

At tention!
A
Functional limitation due to faulty recess of the lock pocket: The lock pocket must be created corre-
sponding to the lock pocket dimensions. You must insert the lock without using any force and screw it
into place, so that is not subject to mechanical stress.
Property damage from drilling: Drilling will damage the lock. You may only use existing holes drilled at
the factory to attach fittings. The lock must be removed if any work such as drilling or cutting is carried out
on the door leaf.
Damage from dirt: The lock is damaged by dirt. Prior to installation, the lock pocket and all holes must be
cleaned (by blowing out or vacuuming).
Functional limitation due to distorted installation: The lock must be installed free of torsion.
Functional limitation due to door handles not moving freely: The lock must be fitted in such a way that
the handle spindle and the spindle hub align.
Property damage due to violent installation of the handle pin into the follower: The door handle spin-
dle must be gently inserted into the spindle hub. No tools are needed.
Protect the door from unintended closing: The security lock 309 locks a closed door automatically and
can then only be unlocked again via the profile cylinder. A construction profile cylinder must be installed
before the security lock 309 is installed.
Danger of destruction with construction key: The use of a so-called construction key can destroy the lock.
Then the function is no longer guaranteed. Only use a suitable locking cylinder for operation of the lock.
