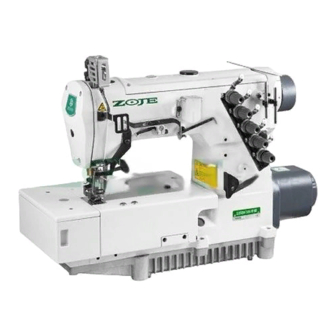

TEXI Treccia & Treccia C Matic operation manual
Opera on manual
High speed interlock
sewing machine
Treccia
Treccia C Ma c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Treccia and is the answer not in the manual?

Questions and answers

Summary of Contents for Texi Treccia

  • Page 1 TEXI Treccia & Treccia C Matic operation manual Opera on manual High speed interlock sewing machine Treccia Treccia C Ma c...
  • Page 2 TEXI Treccia & Treccia C Matic operation manual...
  • Page 3: Table Of Contents

    TEXI Treccia & Treccia C Matic operation manual CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS ………………………………………………………….…….…………………….. 2. LUBRICATION ………………………………………………………………………………………………….……..……..…... 3. HOW TO CHANGE OIL ..............................4. HOW TO CHANGE OIL FILTER ............................ 5. LUBRICATE AND COOLING OF NEEDLES AND THREADS …………………………………………….……..…...…… 6. HOW TO REPLACE THE NEEDLES …………………………………………………………………………………..……….
  • Page 4: Important Safety Instructions

    TEXI Treccia & Treccia C Matic operation manual 1. IMPORT SAFETY INSTRUCTIONS 1. Transportation (1). The machine packed with machine cover. (2). Put the machine into a carton. (3). Use a cart or two men's hands to move it. 2. Storage (1).
  • Page 5: Lubrication

    TEXI Treccia & Treccia C Matic operation manual 2. LUBRICATION 1. Please oil with TERESSTIC T32 oil or its equivalent. 2. The lubricating oil has been drained from the machine before delivery. Remove screw (A), and fill the oil until the oil level reaches between lines H and L of oil level gauge (Fig.
  • Page 6: Threading

    TEXI Treccia & Treccia C Matic operation manual 7. THREADING Follow the procedures shown in (Fig. 9) for threading. Wrong threading may cause thread breaking, skipping stitch, puckering or unexpected sewing. 8. ADJUSTING THREAD TENSION The tension of the thread should be adjusted according to: 1.
  • Page 7: Adjusting Presser Foot

    TEXI Treccia & Treccia C Matic operation manual 11. ADJUSTING PRESSER FOOT Loosen Screw (1) and adjust Presser Foot (2) left and right to a proper position to let the needle may get into the center of Presser Foot ‘s eyelet. After adjusting, tighten screw (1). (Fig. 13) 12.
  • Page 8: Position Of The Looper Thread Take-Up

    TEXI Treccia & Treccia C Matic operation manual 15. POSITION OF THE LOOPER THREAD TAKE-UP Lower the needle from the highest position and adjust, so that the thread comes off from the highest point of the looper Thre- ad Take-up (I) when left needle reaches to the middle part of the looper .
  • Page 9: Spreader

    TEXI Treccia & Treccia C Matic operation manual 18. SPREADER When Spreader (A) moves from right to the left , clearance should be about 0,5 ~0,8 mm between left needle and tip (a) of thread hooking point. When it comes to the extreme left, the clearance between the center of the left needle and tip (a) of thread hooking point should be 4,5 ~5,5 mm (Fig.
  • Page 10 TEXI Treccia & Treccia C Matic operation manual 20. CONVERSION CHART MAIN KIFF NEEDLE NEEDLE PRESSER SPREAD- MODEL FEED FEED LOOPER NEEDLE CLAMP PLATE FOOT TEXI TRECCIA 10011608 10010834 10011466 10011470 10014315 UY 128 10011662 10012780 OPTIONAL 10011266 10011332 10011328...
  • Page 11 TEXI Treccia & Treccia C Matic operation manual Notes...
  • Page 12 TEXI Treccia & Treccia C Matic operation manual CE DECLARATION OF CONFORMITY Distributor: Strima Sp. z o.o. Swadzim, ul. Poznańska 54 62-080 Tarnowo Podgórne, Poland We declare, that the following product: High speed interlock sewing machine Model Treccia (ZJ2500A-156M-VF-BD) Model Treccia C Matic...
