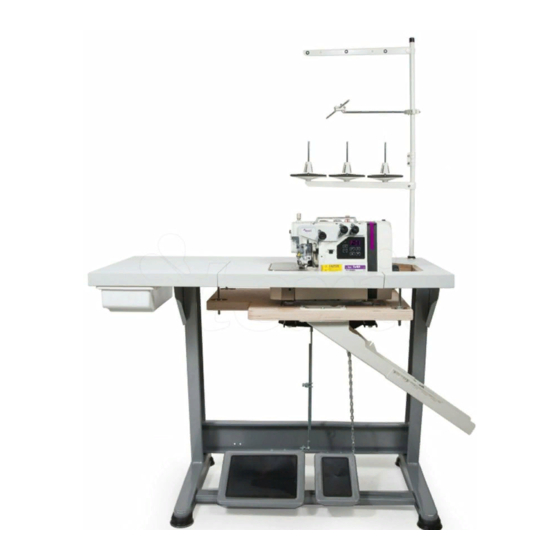

- Page 1 TEXI Tre 04 T, Tre Orlo 15 T, Quattro 24 T, Cinque 35 T Operation Manual Opera on manual Mechatronic High Speed Overlock Machine Tre 04 T Qua ro 24 T Cinque 35 T...
-
Page 3: Table Of Contents
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual CONTENTS Safety Rules…………………………………………………………………………………………………... User’s Manual………………………………………………………………………………………………… Assemble the machine head on the table top…………………………………………………………….. Lubrication…………………………………………………………………………………………………….. Manual lubrication……………………………………………………………………………………………. Filling in cans (grease fitting) devices with silicon oil…………………………………………………….. Threading……………………………………………………………………………………………………… Adjusting the presser foot pressure…………………………………………………………………………... -
Page 4: Safety Rules
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual SAFETY PRECAUTION This instruction manual contains important guidelines regarding correct, safe and economical method of use of the machine. Following recommendations contained in this manual will decrease work down-time, increase machine reliability and durability, and will make work safer. -
Page 5: User's Manual
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual USER’S MANUAL The overlock machines TEXI, model Tre 04 T, Quattro 24 T and Cinque 35 T, are high speed sewing machines, designed for sewing and serging woven or knitted materials or other textiles. - Page 6 TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual OBSERVE THIS SAFETY PRECAUTIONS To prevents accidents, do not remove safety devices or parts while operating the machine. Do not leave tools or other unnecessary objects the machine table while operating the machine.
-
Page 7: Assemble The Machine Head On The Table Top
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual 1. Assemble the machine head on the table top 2. Lubrication After filling the oil reservoir, its level should lie between (H) and (L) lines. Add oil when the oil level reaches or goes slightly below (L). -
Page 8: Filling In Cans (Grease Fitting) Devices With Silicon Oil
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual 4. Filling in cans (grease fitting) devices with silicon oil Fill the cans (grease fitting) devices with oil before it is too low in order to prevent needle thread breakage and fabric damage. -
Page 9: Threading
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual 5. Threading Open three covers. ① Sewing the presser foot aside. Knot the preset thread and the thread being used together to thread the machine. ② Needle thread Trim the knots off... -
Page 10: Adjusting The Presser Foot Pressure
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual 6. Adjusting the presser foot pressure Turn adjusting knob to adjust the presser foot pressure. It should be as light as possible, yet be sufficient to obtain the... -
Page 11: Replacing Lower Knife
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual 8. Replacing lower knife To remove lower knife ③ Loosen screw Correct angles to resharpen the lower knife ① Loosen screw 5 or 6 threads ② Temporarily tighten ①... -
Page 12: Replacing The Oil
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual 9. Replacing the oil Remove the screw and pour out the old oil from the machine. Then re-tighten the screw. Oil should be replaced a month after the start of machine operation and thereafter every six months. -
Page 13: Adjusting The Stitch Length
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual 11. Adjusting stitch length ①While pressing the push button,turn the hand- wheel to seek the position at which the push Coarse button goes further into the depth. ②Then,keeping the push button pressed, turn the handwheel and set the desired scale to the aligning mark. -
Page 14: Adjusting The Thread Tension
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual 12. Adjusting thread tension Make tension adjustment with the needle thread knob (1), upper looper knob (2), and lower looper knob (3). To loosen To tighten ③ ②... -
Page 15: Regulation
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual REGULATION Attention: Any adjustment can be performed only by qualified personnel. Guards of the machinery, to be removed to allow the control and regulation, should be re-installed before restarting the machine. -
Page 16: Ask Your Supplier About
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual ASK YOUR SUPPLIER ABOUT: Machine needle with tip adjusted to sewed material: R - round, standard tip for most fabrics. SPI - very slim, acute tip, for a precise piercing of densely woven materials. - Page 17 TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual Notes...
- Page 18 TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual Notes...
-
Page 19: Declaration Of Conformity
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual CE DECLARATION OF CONFORMITY Distributor: Strima Sp. z o.o. Swadzim, ul. Poznańska 54 62-080 Tarnowo Podgórne, Poland We declare, that the following product: Overlock High Speed Machine Tre 04 T (ZJ893A-3-17) - Page 20 Dealer :...
