Design and function
MIG/MAG welding
Unsatisfactory welding results due to faulty wire feeding!
The wire feed rolls must be suitable for the diameter of the wire and the material. The wire feed
rolls are colour-coded to facilitate distinction (see the Wire feed roll overview table). When
working with a wire diameter of > 1.6 mm the drive has to be converted for the wire feed kit ON WF
2,0-3,2MM EFEED > see 10 chapter.

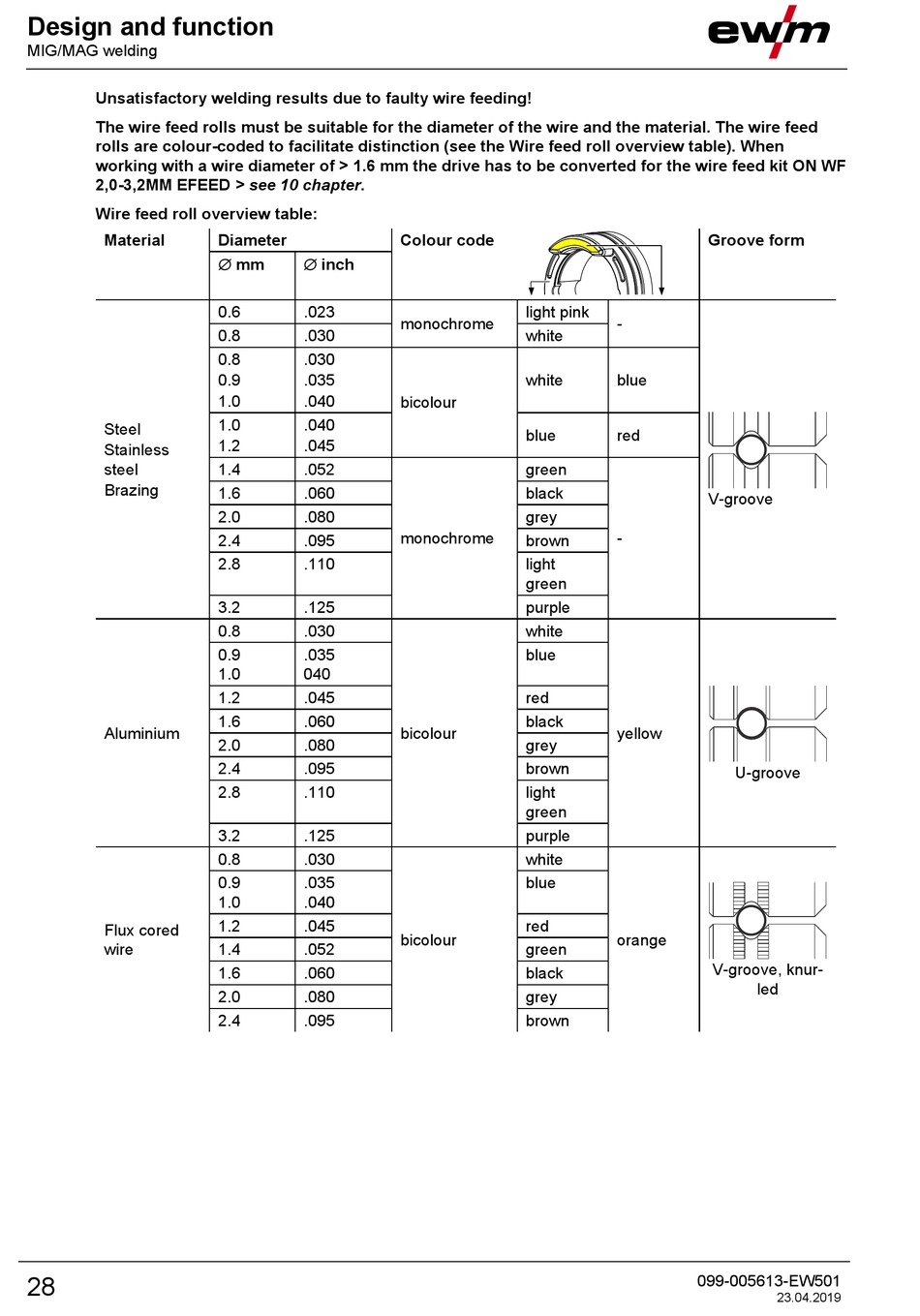

Wire feed roll overview table:
Material
Steel
Stainless
steel
Brazing
Aluminium
Flux cored
wire
28
Diameter
 mm  inch
0.6 .023
0.8 .030
0.8 .030
0.9 .035
1.0 .040
1.0 .040
1.2 .045
1.4 .052
1.6 .060
2.0 .080
2.4 .095
2.8 .110
3.2 .125
0.8 .030
0.9 .035
1.0 040
1.2 .045
1.6 .060
2.0 .080
2.4 .095
2.8 .110
3.2 .125
0.8 .030
0.9 .035
1.0 .040
1.2 .045
1.4 .052
1.6 .060
2.0 .080
2.4 .095
Colour code
light pink
monochrome
white
white
bicolour
blue
green
black
grey
monochrome
brown
light
green
purple
white
blue
red
black
bicolour
grey
brown
light
green
purple
white
blue
red
bicolour
green
black
grey
brown
Groove form
-
blue
red
V-groove
-
yellow
U-groove
orange
V-groove, knur-
led
