Item Symbol
1
2
3
4
5
6
• Insert the central plug for the welding torch into the central connector and screw together with crown
nut.
• Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:
Return line red to quick connect coupling, red (coolant return) and
supply line blue to quick connect coupling, blue (coolant supply).
• Insert the welding torch control cable into the 19-pole connection socket and lock (MIG/MAG torches
with additional control cables only).
099-005613-EW501
23.04.2019
Description 0
Welding torch
Welding torch hose package
Welding torch connection (Euro torch connector)
Welding current, shielding gas and torch trigger integrated
Quick connect coupling (blue)
coolant supply
Quick connect coupling (red)
coolant return
19-pole connection socket (analogue)
For connecting analogue accessory components (remote control, welding torch control
lead, etc.)
Design and function

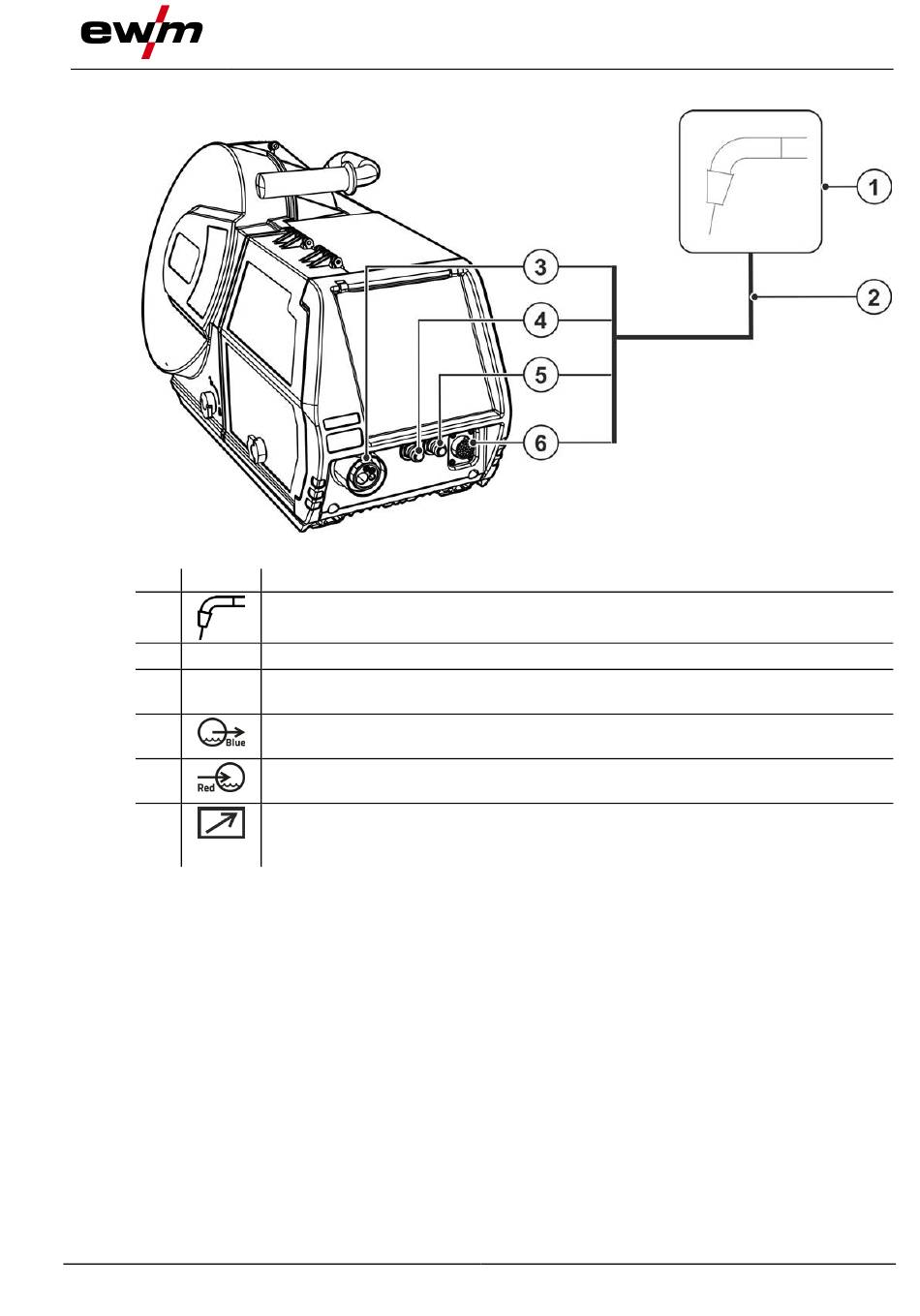

Figure 5-11
MIG/MAG welding
