EWM Drive XQ AC Operating Instructions Manual page 13

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
099-005613-EW501
23.04.2019

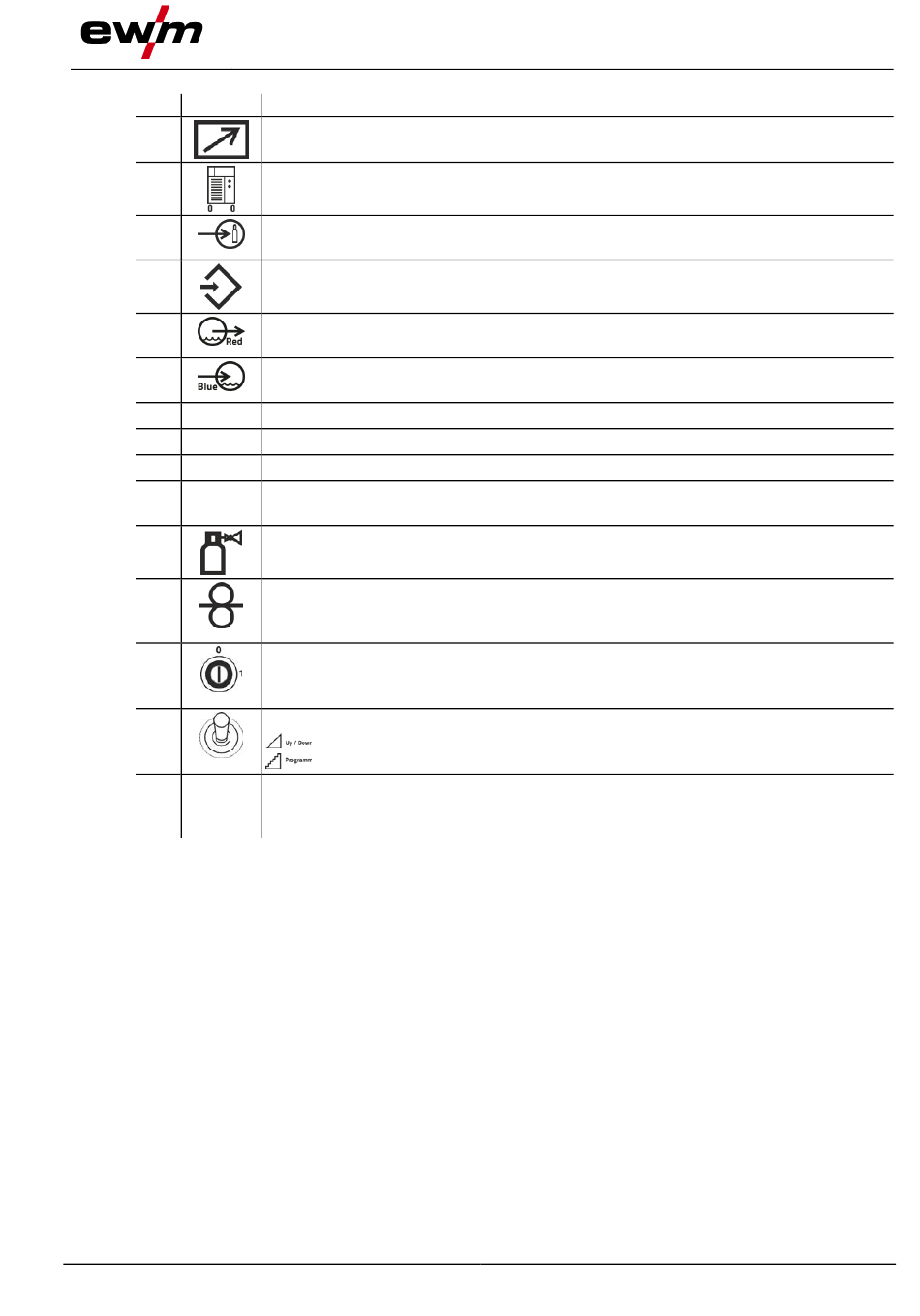

Machine description – quick overview
Description 0
Connection socket 7-pole (digital)
For connecting digital accessory components (remote control, etc.).
Power source welding current connector plug
Welding current connection between power source and wire feeder
Shielding gas connection (inlet)
Connecting nipple, G¼"
14-pole connection socket
Wire feeder control cable
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Wire spool protective cap
Wire spool holder
Wire feed unit
Lighting, inside
In power-saving mode and with MMA or TIG welding, the lighting is switched off.
Push-button gas test / rinse hose package > see 5.2.3 chapter
Wire inching push-button
For potential- and gas-free inching of the wire electrode through the hose package to
the welding torch.
Key switch for protection against unauthorised use > see 5.7 chapter
1 ---------- changes possible,G front drive-4x-EX
0 ---------- changes not possible.
Welding torch function changeover switch (special welding torch required)
--- Welding power infinitely adjustable
--- Change over programs or JOBs
Protective cap, wire feed mechanism
On the inside of the protective cap the welding task lists (JOB-List) for the relevant
welding machine series can be found.
Rear view / side view from left
13
