Design and function
Intermediate hose package connection
5.2.1

Intermediate hose package strain relief

Property damage due to strain relief not installed or not installed correctly!
The strain relief absorbs tensile forces on cables, plugs and sockets.
If strain reliefs are not installed or not installed correctly, the connector plugs or sockets may be
damaged.
• The attachment must always take place on both sides of the intermediate hose package!
• The connections of the hose package must be locked properly!
5.2.2

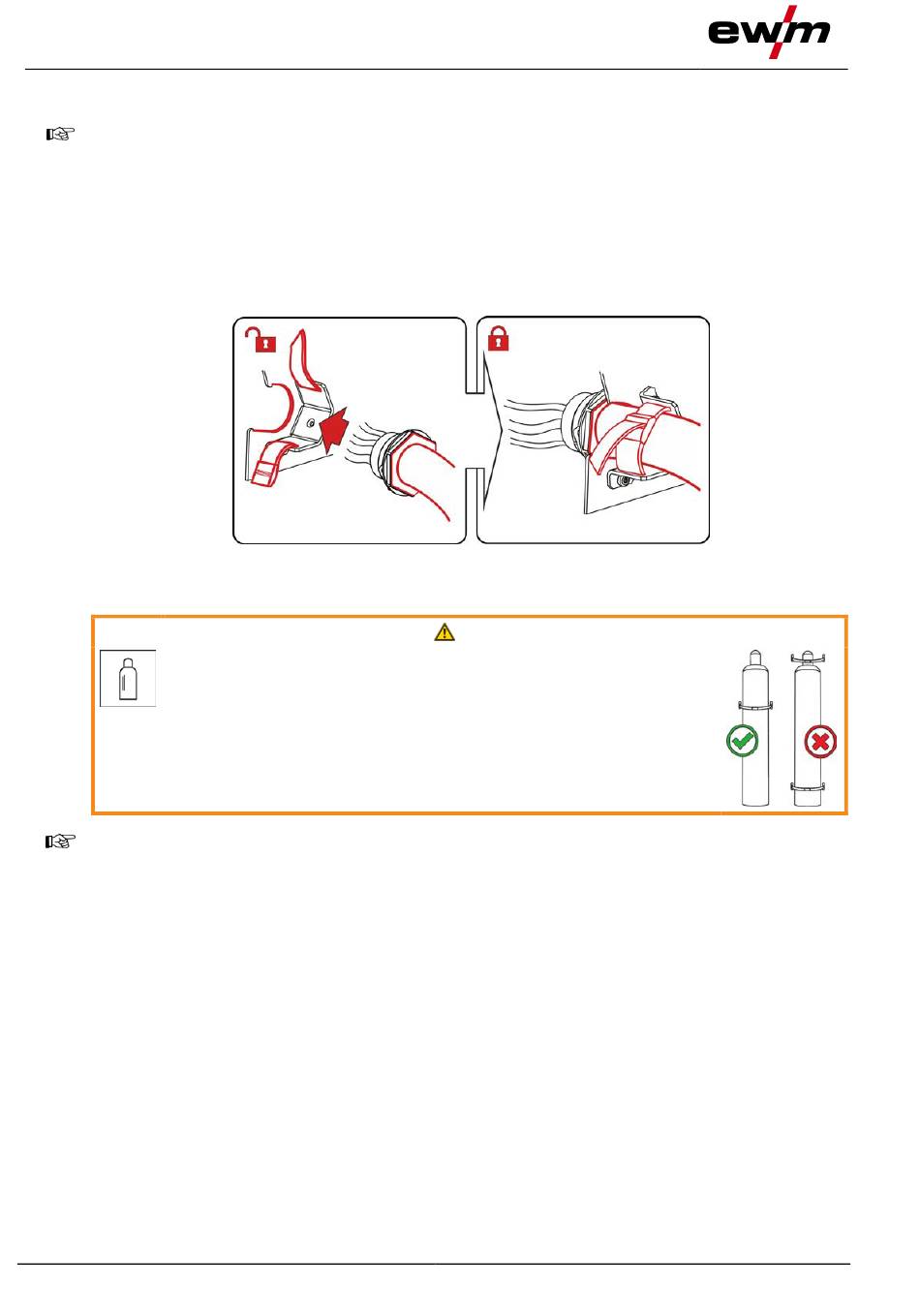

Locking the strain relief

EWM intermediate hose package
5.2.3

Shielding gas supply (shielding gas cylinder for welding machine)

Risk of injury due to improper handling of shielding gas cylinders!
Improper handling and insufficient securing of shielding gas cylinders
can cause serious injuries!
• Place shielding gas cylinder into the designated holder and secure with
fastening elements (chain/belt)!
• Attach the fastening elements within the upper half of the shielding gas
cylinder!
• The fastening elements must tightly enclose the shielding gas cylinder!
An unhindered shielding gas supply from the shielding gas cylinder to the welding torch is a fun-
damental requirement for optimum welding results. In addition, a blocked shielding gas supply
may result in the welding torch being destroyed.
• Always re-fit the yellow protective cap when not using the shielding gas connection.
• All shielding gas connections must be gas tight.
20
Figure 5-6
WARNING
099-005613-EW501
23.04.2019
