Design and function
MIG/MAG welding
Preparation for connecting welding torches with a liner:
•
Push forward the capillary tube on the wire feed side in the direction of the Euro torch connector and
remove it there.
•
Insert the liner guide tube from the Euro torch connector side.
•
Carefully insert the welding torch connector with as yet too long a liner into the Euro torch connector
and secure with a crown nut.
•
Cut off the liner with a liner cutter > see 9 chapter just before the wire feed roller.
•
Loosen the welding torch connector and remove.
•

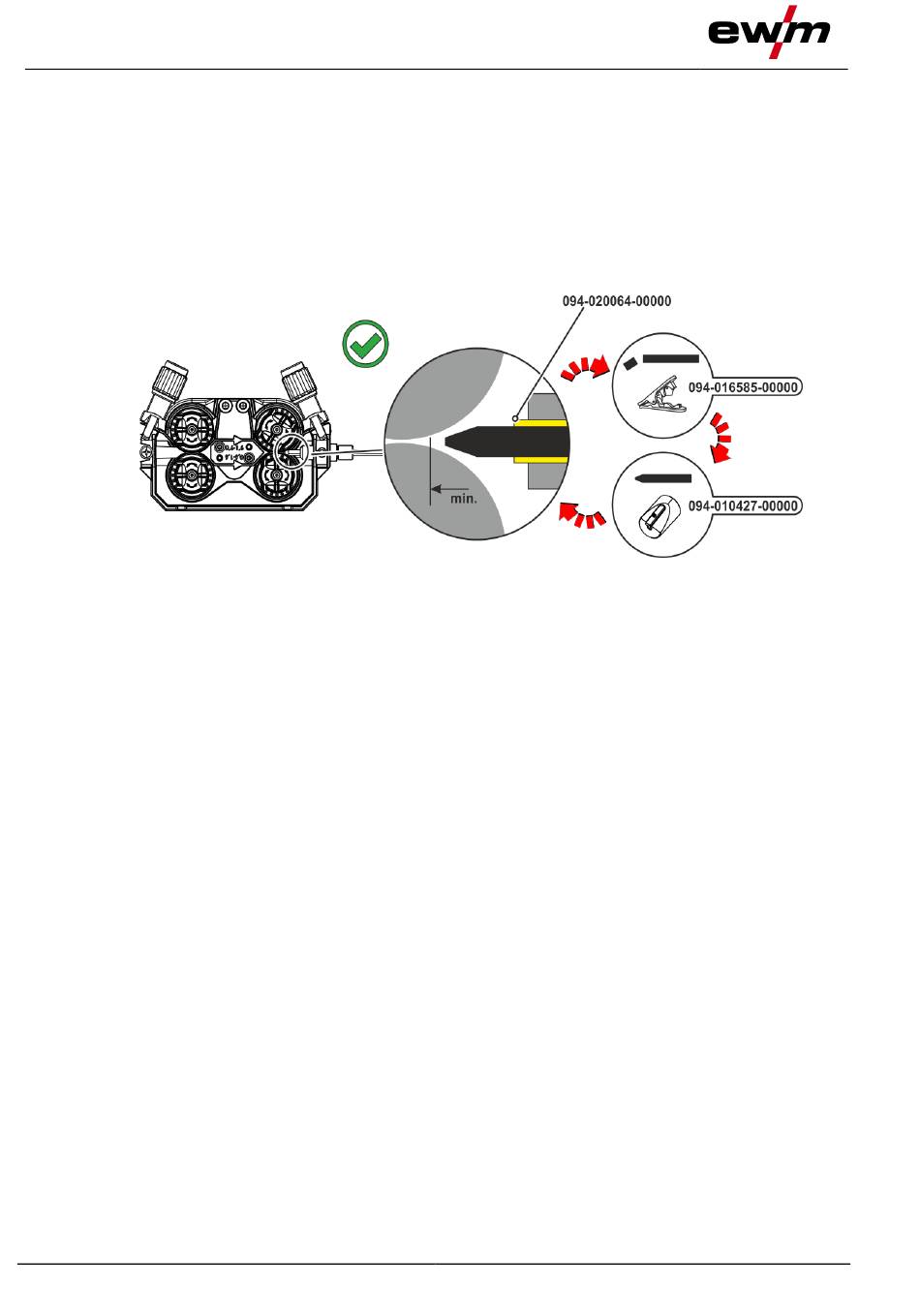

Carefully chamfer the cut off end of the liner with a liner sharpener > see 9 chapter and sharpen.
24
Figure 5-10
099-005613-EW501
23.04.2019
