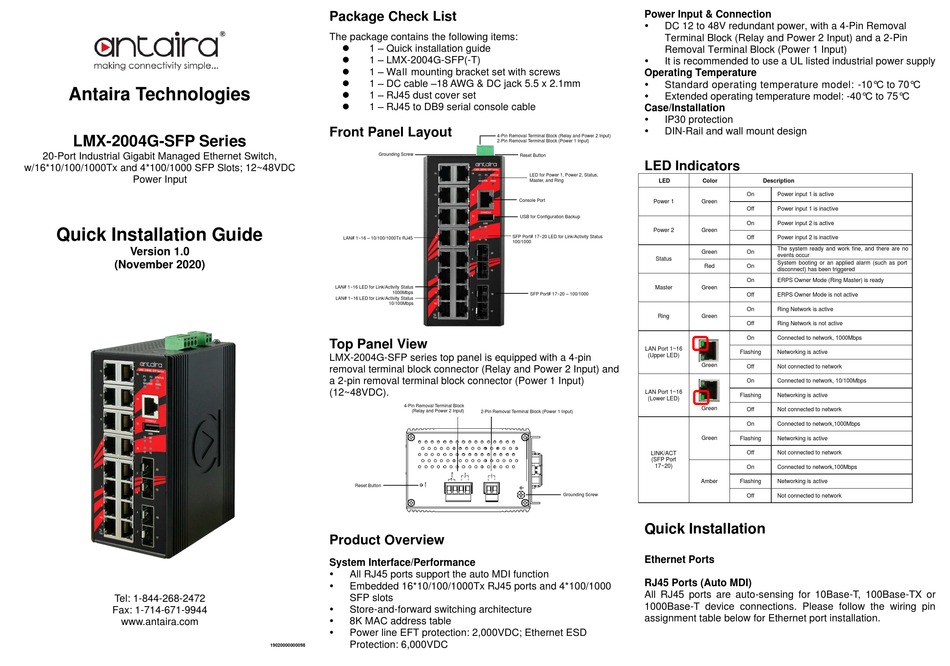

ANTAIRA LMX-2004G-SFP Series Quick Installation Manual

Antaira Technologies
LMX-2004G-SFP Series

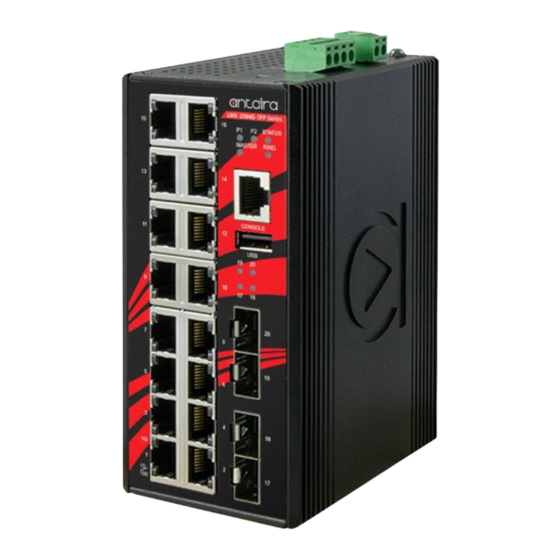

20-Port Industrial Gigabit Managed Ethernet Switch,
w/16*10/100/1000Tx and 4*100/1000 SFP Slots; 12~48VDC
Power Input
Quick Installation Guide
Version 1.0
(November 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMX-2004G-SFP(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set
⚫ 1 – RJ45 to DB9 serial console cable

Front Panel Layout

Grounding Screw
LAN# 1~16 – 10/100/1000Tx RJ45
LAN# 1~16 LED for Link/Activity Status
1000Mbps
LAN# 1~16 LED for Link/Activity Status
10/100Mbps

Top Panel View

LMX-2004G-SFP series top panel is equipped with a 4-pin
removal terminal block connector (Relay and Power 2 Input) and
a 2-pin removal terminal block connector (Power 1 Input)
(12~48VDC).
4-Pin Removal Terminal Block
(Relay and Power 2 Input)
Reset Button

Product Overview

System Interface/Performance


All RJ45 ports support the auto MDI function

Embedded 16*10/100/1000Tx RJ45 ports and 4*100/1000
SFP slots

Store-and-forward switching architecture

8K MAC address table

Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000098
Power Input & Connection



Operating Temperature




Case/Installation



4-Pin Removal Terminal Block (Relay and Power 2 Input)
2-Pin Removal Terminal Block (Power 1 Input)
Reset Button

LED Indicators

LED for Power 1, Power 2, Status,
Master, and Ring
Console Port Power 1
USB for Configuration Backup
Power 2
SFP Port# 17~20 LED for Link/Activity Status
100/1000
Status
Master
SFP Port# 17~20 – 100/1000
LAN Port 1~16
(Upper LED)
LAN Port 1~16
(Lower LED)
2-Pin Removal Terminal Block (Power 1 Input)
LINK/ACT
(SFP Port
17~20)
Grounding Screw
Quick Installation

Ethernet Ports

RJ45 Ports (Auto MDI)

All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
DC 12 to 48V redundant power, with a 4-Pin Removal
Terminal Block (Relay and Power 2 Input) and a 2-Pin
Removal Terminal Block (Power 1 Input)
It is recommended to use a UL listed industrial power supply
Standard operating temperature model: -10°C to 70°C
Extended operating temperature model: -40°C to 75°C
IP30 protection
DIN-Rail and wall mount design
LED Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
The system ready and work fine, and there are no
Green On
events occur
System booting or an applied alarm (such as port
Red On
disconnect) has been triggered
On ERPS Owner Mode (Ring Master) is ready
Green
Off ERPS Owner Mode is not active
On Ring Network is active
Ring Green
Off Ring Network is not active
On Connected to network, 1000Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network, 10/100Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network,1000Mbps
Green
Flashing Networking is active
Off Not connected to network
On Connected to network,100Mbps
Amber Flashing Networking is active
Off Not connected to network
