Water Closet Models:
ZTR6200-ONE-W2
ZTR6200EV-W2
ZTR6200-WS2
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase.
Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided we are notified in writing of such defect and the
goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in accordance with instructions. We shall
not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or consequential damages. The sole and exclusive
remedy shall be limited to the replacement of the defective goods. Before installation and use, the purchaser shall determine the suitability of the product for his
intended use and the purchaser assumes all risk and liability whatever in connection therewith. Where permitted by law, the implied warranty of merchantability
is expressly excluded. If the products sold hereunder are "consumer products," the implied warranty of merchantability is limited to a period of three years and
shall be limited solely to the replacement of the defective goods. All weights stated in our catalogs and lists are approximate and are not guaranteed.
NOTICE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT
®
1.1 gpf
1.28 gpf
1.6 gpf
LIMITED WARRANTY

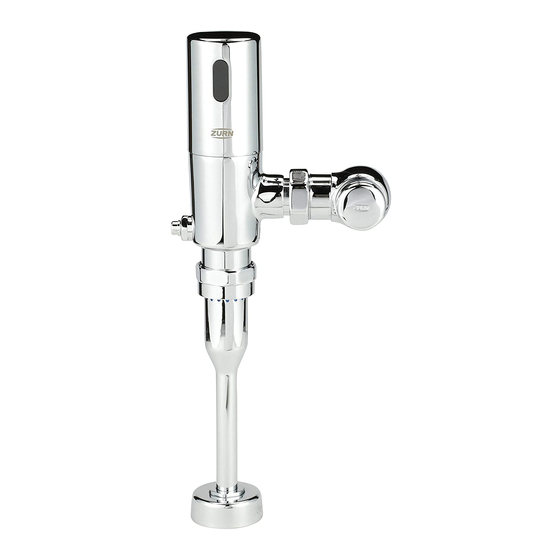

Connected AquaSense
Battery Powered Flush Valve
ZTR Series -W2
Installation, Operation, Maintenance
and Parts Manual
Patented and Patents Pending
Urinal Models:
ZTR6203-ULF-W2
ZTR6203-QRT-W2
ZTR6203-EWS-W2
ZTR6203-WS1-W2
®
0.125 gpf
0.25 gpf
0.5 gpf
1.0 gpf
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ZURN plumb smart AquaSense ZTR -W2 Series
Summary of Contents for ZURN plumb smart AquaSense ZTR -W2 Series
- Page 1 Connected AquaSense ® Battery Powered Flush Valve ® ZTR Series -W2 Installation, Operation, Maintenance and Parts Manual Patented and Patents Pending Water Closet Models: Urinal Models: ZTR6200-ONE-W2 1.1 gpf ZTR6203-ULF-W2 0.125 gpf ZTR6200EV-W2 1.28 gpf ZTR6203-QRT-W2 0.25 gpf ZTR6200-WS2 1.6 gpf ZTR6203-EWS-W2 0.5 gpf ZTR6203-WS1-W2...
- Page 2 ZTR Series Flush Valve Package Contents ZTR6200-W2 ZTR6203-W2 Cast Wall Escutcheon Cast Wall Escutcheon Sweat Kit Sweat Kit Stop Valve Stop Valve Valve Assembly Valve Assembly Vandal Cover Vandal Cover Magic Magic Vacuum Breaker Vacuum Breaker Magnet Magnet Batteries Batteries Vacuum Breaker Vacuum Breaker Tube...
-
Page 3: Specifications
Overview: Zurn connected faucets transmit data 24/7 to the Zurn plumbSMART™* web portal and mobile app. Proactively monitor your faucet activations and water usage, receive real-time alerts for preset high and low usage parameters, and access system data for trends and predictive maintenance anytime and anywhere. - Page 4 Sweat Solder Adapter Installation Instructions NOTE: Before installation, turn off water supplies to existing fixture and remove flushometer if replacing an existing device. 1. Measure distance from finished wall to the center line of the fixture 2. Slide threaded sweat solder adapter onto water supply pipe until spud.
- Page 5 Flush Valve Installation Instructions Prior to attaching flush valve tailpiece to control stop, inspect and Control Stop verify that the O-ring seal is located within the O-ring groove at the tailpiece. Ensure that the locking nut and locking snap ring O-Ring Groove are also present on the tailpiece.
-
Page 6: Battery Installation Instructions
Battery Installation Instructions 1. Use the 3/32” Allen Wrench to loosen the internal set screw 2. Loosen and remove the 4 mounting screws from the back until it stops. Screw will retract into the base to eliminate loss. of monitor housing and remove back panel. Install supplied Rotate sensor cap clockwise and pull cap up to remove. - Page 7 Connected Sensor Cap Retrofit Installation Instructions 1. Remove vandal-resistant cover with allen wrench from control 2. Press and hold the manual override button for 3 seconds to stop (if present) and turn control stop clockwise to turn off the release any residual pressure. water supply.
- Page 8 5. Note socket screw pockets in the ring insert and place over remaining 2 socket screws See Figure below. 6. Ensure ring insert set screws align with valve body holes shown in Figure below. Hand start the 4 new sockets screws(included) into the ring insert.
- Page 9 STEP 1.1 Place the Zurn MagicMagnet® (supplied) against the cap at the lower right corner of the Zurn logo under the sensor lens. Hold in place until the valve automatically flushes and the red LED light flashes two(2) times. Remove Magic Magnet from flush valve.
-
Page 10: Care And Cleaning Instruction
Install Zurn Gateway per the Gateway Instructions Manual Request plumbSMART Administrator Account at 844-987-6737 Zurn creates your Enterprise Account for you! (You will be required to identify your building location, number of floors, and number of rooms.) Log in to plumbsmart.zurn.com Register each Connected Product in plumbSMART (Watch How-To Videos to Get Started. - Page 11 Remove cap from valve and disconnect power. Move DIP switch to desired position. DIP switch settings Configuration changes to DIP switches Reconnect power, allowing 30 seconds to complete power up sequence. For further assistance with troubleshooting, visit http://www.zurn.com/ FV722 Rev. A 07/23/20 Page 10...
- Page 12 Details tab listed as “Activated” NETWORK: Senet SUBSCRIPTION STATUS: Activated LAST HEARD FROM: 07/14/2020, 04:29 PM CDT If listed as “Deactivated”, contact Zurn Custom Service at 1.855. ONE.ZURN (1.855.663.9876) for assistance. Step 1 “Status – Good” posted in plumbSMART and faucet not actuating Verify LoRa Monitor’s cables are connected to IR sensor...
- Page 13 If LORA LED does not turn ON solid and ethernet cable connected, contact facility IT administrator to modify port rules to allow Zurn gateway to access the internet via local router. If gateway model is ETH/LTE, visually verify SIM card is installed in designated slot on the side of gateway.
- Page 14 Verify product image and model number from plumbSMART product page “Details” tab against model number cited on product literature and packaging. If incorrect, contact Zurn Custom Service at 1.855.ONE.ZURN (1.855.663.9876) for assistance. “High Daily Flush Rate” posted in plumbSMART Step 1 Verify flush valve is not falsely triggering.
- Page 15 Connected ZTR6200 Series Parts Breakdown Parts Identification 1. Ring Insert Assembly 2. Connected Valve Cap/Sensor Assembly 3. Solenoid 4. Piston Cover Screws 5. Solenoid Kit 6. Flange O-rings 7. Piston Kit 8. Valve Housing 9. Manual Override Button 10. Filter 11.
- Page 16 ZURN INDUSTRIES, LLC 5900 Elwin Buchanan Drive, Sanford, NC U.S.A. 27330, Ph. 1-800-997-3876, Fax 919-775-3541 In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292 ZURN.COM Rev. A Date: 07/23/20 C.N. No. 142771 Prod.
