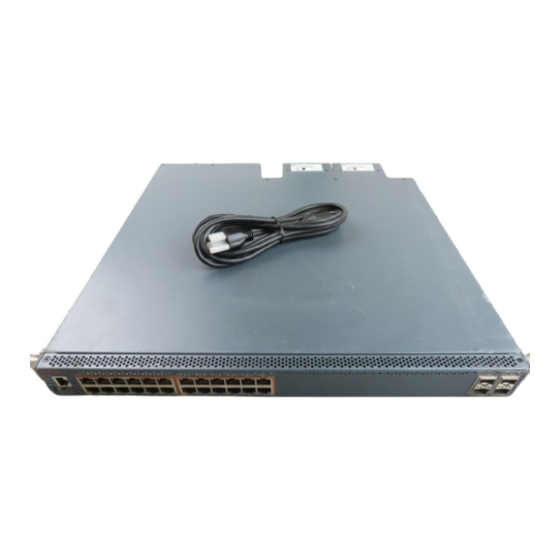

Avaya 5900 Series Installing Manual

Ethernet routing switch
Hide thumbs Also See for 5900 Series:
Table of Contents

Advertisement

Quick Links

Installing Avaya Ethernet Routing Switch
5900 Series
Release 7.4
NN47211-300
Issue 05.04
September 2017

Advertisement

Table of Contents
loading

Related Manuals for Avaya 5900 Series

Summary of Contents for Avaya 5900 Series

  • Page 1 Installing Avaya Ethernet Routing Switch 5900 Series Release 7.4 NN47211-300 Issue 05.04 September 2017...
  • Page 2 RESERVES THE RIGHT TO TAKE LEGAL ACTION AGAINST YOU the express behalf of Avaya. End User agrees to indemnify and hold AND ANYONE ELSE USING OR SELLING THE SOFTWARE harmless Avaya, Avaya's agents, servants and employees against all WITHOUT A LICENSE.
  • Page 3 IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION written consent of Avaya can be a criminal, as well as a civil offense FOR H.264 (AVC) AND H.265 (HEVC) CODECS MAY BE under the applicable law.

  • Page 4: Table Of Contents

    Chapter 6: Installation reference................... 66 ................... 66 Console and management connections ................... 67 RJ-45 connector pin assignments ............... 68 Avaya Ethernet Routing Switch 5900 Series PoE Chapter 7: Translations of safety messages................ 69 ........................69 Safety messages Chapter 8: Resources......................73 ..........................73 Support ..................

  • Page 5: Chapter 1: Introduction

    Chapter 1: Introduction Purpose This document provides the information and procedures required to install the hardware, software, cabling, and power for the Ethernet Routing Switch 5900 Series. Unless otherwise indicated, this information applies to: • Ethernet Routing Switch 5928GTS • Ethernet Routing Switch 5928GTS-PWR+ •...

  • Page 6: Chapter 2: New In This Document

    Chapter 2: New in this document The following sections detail what is new in Installing Avaya Ethernet Routing Switch 5900 Series, NN47211-300. New hardware ERS 5928MTS-uPWR is the new switch added to ERS 5900 Series. The ERS 5928MTS-uPWR switch is compliant with IEEE 802.3bz for 100M/1G/2.5Gbps over twisted pair. The switch supports 24 100/1000/2500 Copper ports and four SFP+ ports, each capable of supporting 1Gbps/10Gbps pluggable transceivers.

  • Page 7: Chapter 3: Preinstallation Checklist

    Chapter 3: Preinstallation checklist Before you install the Avaya Ethernet Routing Switch 5900 Series, make sure that you complete the tasks in the preinstallation checklist. Task Description Review the technical specification for For the physical, electrical, and the switch. Make sure that the area...
  • Page 8 Depending on the switch model, see Installing ERS 5900 switch in an equipment rack on page 35 or Installing ERS 59100GTS and ERS 59100GTS-PWR+ in an equipment rack on page 37. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 9: Chapter 4: Installation Preparation

    Chapter 4: Installation preparation Ethernet Routing Switch 5900 series models The following table lists the different Ethernet Routing Switch 5900 Series models and the key features for each switch. Table 1: 5900 Series Switch Platforms 5900 Series Switch Model Key features...
  • Page 10 AL5900D7F-E6 (JP PC) receptacles, which support 1400 W AC power supply AL5900E7B-E6 (NA PC) modules. AL5900E7F-E6 (NA PC) AL5900F7B-E6 (ANZ PC) AL5900F7F-E6 (ANZ PC) Table continues… September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 11 Ethernet Routing Switch 5900 series models 5900 Series Switch Model Key features Part Number Ethernet Routing Switch 5952GTS • 48 10/100/1000 Base-T RJ-45 AL590003X-E6 (no PSU, no PC) ports AL5900A3B-E6 (no PC) • Four SFP+ 1/10 Gbps uplink AL5900A3F-E6 (no PC)
  • Page 12 The ‘B’ in the part number (e.g. AL5900E4B-E6) denotes Back to Front cooling, whereas ‘F’ denotes Front to Back cooling (e.g. AL5900E4F-E6). Common hardware features The following hardware features are part of all 5900 Series switches: • One RJ-45 RS-232 Console connection at the front (note jack orientation) • Two FRU Fan Tray modules Note: ERS 59100GTS and ERS 59100GTS-PWR+ support four Fan Tray modules.
  • Page 13 Ethernet Routing Switch 5900 series models • One rear mounted Base Select Switch • Support for two field replaceable power supply units Note: ERS 59100GTS and ERS 59100GTS-PWR+ support four field replaceable power supply units. • One Kensington Lock slot located on the left side, near the back end of the chassis •...
  • Page 14 6 and 7. Power supply units 8. Base Unit switch Universal Serial Bus ports on the Avaya Ethernet Routing Switch 5900 Series The ERS 5900 switches include a USB Type A port on the front panel adjacent to the console port, as well as a micro-USB Type B port.

  • Page 15: Electrostatic Discharge Prevention

    Support is not extended to third-party devices that do not comply with these standards. Consult the documentation provided with the USB drive to ensure compliance with these standards. Important: The micro-USB port on the front panel of the Ethernet Routing Switch 5900 Series models is not enabled. Electrostatic discharge prevention This module provides information and procedures for the prevention of electrostatic discharge during the installation process.

  • Page 16: Technical Specifications

    Figure 1: ESD cable Technical specifications The following table provides the technical specifications for the individual switches in the Ethernet Routing Switch 5900 Series. Ensure that the area where you install the switch and where it operates meets these requirements. Warning: To avoid bodily injury from hazardous electrical shock and current, never remove the top of the device.
  • Page 17 • 0° to 50°C (32° to 122°F) 5928MTS-uPWR: • 45°C (113°F) Back to Front airflow • 50°C (122°F) Front to Back airflow Storage Temperature -40° to 85°C (–40° to 185°F) Table continues… September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 18: Power Specifications

    • Adequate clearance is allotted at the front and rear of the switch for access to cables. Power specifications This section provides the following specifications for Ethernet Routing Switch 5900 Series. The following table describes the AC power specifications. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 19 2 PSU 138.6 138.6 473.0 1 PSU 109.7 109.7 374.4 4 PSU 200–240 182.6 182.6 623.1 W/PSU 3 PSU 162.2 162.2 553.4 2 PSU 137.3 137.3 468.6 Table continues… September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 20 ERS 5952GTS-PWR+ 56.5 65.6 373.59 56.5 ERS 59100GTS 92.0 111.0 91.8 ERS 59100GTS-PWR+ 97.1 117.7 748.5 97.1 The following table describes the Power over Ethernet (PoE+) budget calculations. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 21: Mtbf Values

    1440 1 PSU 1200 MTBF values The following table lists the MTBF values for the switches in ERS 5900 Series when two or four fans are used in combination with PSUs. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 22: Power Supply Cords

    Two modular power supplies are supported and each power supply has its own power cord. The Ethernet Routing Switch 5900 Series models that support PoE use 1000 W or 1400 W power supply, this power supply is unique to Ethernet Routing Switch 5900 Series. The power adapter on 1000 W or 1400 W power supply utilizes an IEC 60320 C16 connector.
  • Page 23 AL1905A3B-E6 Back to Front Airflow ERS 5928GTS AL7000A0F-E6 Front to Back Airflow ERS 5928GTS AL7000A0B-E6 Back to Front Airflow ERS 5928GTS-PWR+ AL1905A3F-E6 Front to Back Airflow Table continues… September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 24 Italy 23-16 AA0020066E6 Power cord 2.5 m IEC C13 to GB China 2099.1-1996 AA0020067E6 Power cord 2.5 m IEC C13 to India & South Africa BS-546/SANS164-1 Table continues… September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 25 Power cord 2.5 m IEC C15 to North America NEMA L6-15P TWIST LOCK AA0020109-E6 Power cord 2.5 m IEC C15 to India BS-546 AA0020110-E6 Power cord 2.5 m IEC C15 to Argentina IRAM 2073 September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 26 ERS 59100 switch package contents on page 27 ERS 5900 switch package contents Figure 2: 1. Avaya Ethernet Routing Switch 5900 Series 2. Rack-mounting hardware that includes: • Rack-mount brackets (two for a 19-inch equipment rack and two for a 23-inch equipment rack) •...

  • Page 27: Cooling Fans And Power Supplies

    Items 5 and 6 are not packaged with the switch. They are packed separately. ERS 59100 switch package contents 1. Avaya Ethernet Routing Switch 59100 Series 2. Rack-mounting hardware that includes: • Rack-mount brackets (two for a 19-inch equipment rack and two for a 23-inch equipment rack) •...
  • Page 28 The following figure shows cooling fan trays. Figure 3: Fan tray Power supply compatibility with cooling fans Power supplies support hot-swap and are available in two models to support cooling fan airflow modes. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 29: Installing The Fan Trays And Power Supply

    For more information, see Supported number of fan trays and power supplies on page 28. The following figures show fan trays and power supply location: September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 30 In a single power supply installation, keep the blanking plate installed over the unused power supply slot for proper cooling. Avaya recommends you use PS 1 (the left most power supply slot when viewed from the front) in a single power supply installation.
  • Page 31 The following figures show how to properly insert the cooling fan trays and power supplies into your switch. Figure 7: Installing the fan trays and power supplies in ERS 59100GTS and ERS 59100GTS-PWR+ September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 32: Connecting Ac Power

    Installation preparation Figure 8: Installing the fan trays and power supplies in ERS 5900 Series Next steps After you install the two fan trays and at least one power supply, you can install and connect power to the switch. Connecting AC power Perform the following procedure to connect an AC power source to the switch.
  • Page 33 The only way to turn off the switch is to disconnect the power. Always connect the AC power cord in a location that can be reached quickly and safely in case of an emergency. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 34: Chapter 5: Switch Installation

    41 mount brackets and then, slide the switch. The brackets secure the chassis and prevent it from sliding around during vibration or when inserting or extracting transceivers. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 35: Installing Ers 5900 Switch In An Equipment Rack

    1 Ohm of resistance from the rack to the grounding electrode. Note: Avaya does not supply the bolts used to secure the switch to the rack. Ensure you obtain the appropriate bolts to secure the switch to your specific rack before you begin. Procedure 1.
  • Page 36 Switch installation Figure 10: Rear-mounted rack bracket installation 3. Slide the switch into the rack. 4. Insert and tighten the rack mount screws. Figure 11: Front-mounted rack installation September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 37: Installing Ers 59100Gts And Ers 59100Gts-Pwr+ In An Equipment Rack

    Installing ERS 59100GTS and ERS 59100GTS-PWR+ in an equipment rack About this task Install ERS 59100GTS and ERS 59100GTS-PWR+ on an equipment rack. To install other switches in ERS 5900 Series, see Installing ERS 5900 switch in an equipment rack on page 35. Before you begin Tool requirements •...
  • Page 38 Switch installation Note: Avaya does not supply the bolts used to secure the switch to the rack. Ensure you obtain the appropriate bolts to secure the switch to your specific rack before you begin. Procedure 1. Ensure power is disconnected from the switch.
  • Page 39 Installing ERS 59100GTS and ERS 59100GTS-PWR+ in an equipment rack Figure 14: Rear-mounted rack bracket installation 3. Slide the switch into the rack. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 40 Switch installation Figure 15: Front-mounted rack installation September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 41: Installing The Switch Using Optional Four-Post Rack-Mount Brackets

    Perform this procedure to assemble and install the four-post rack-mount bracket kit. Before you begin ERS 5900 Series four-post server rack-mount kit — AL5911001-E6 Tool requirements • Phillips screwdriver to attach brackets to the switch and the switch to the rack.
  • Page 42 Verify that you have all the screws and brackets to assemble and install the four-post rack mount kit. Figure 17: Four-post rack-mount kit assembly Procedure 1. Attach a front bracket to each guide bracket with four 8.5 mm length flat head machine screws. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 43 Installing the switch using optional four-post rack-mount brackets 2. Attach the guide brackets to the switch chassis. Figure 18: Attaching guide brackets to ERS 5900 switch September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 44 Test fit the rear mounting brackets in the guide brackets and verify that the rear brackets can slide in the channels. Remove the rear brackets. 3. Install the switch into the equipment rack, temporarily using only the front rack mounts and screws. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 45: Single And Multiple Switch Arrangements

    Figure 21: Attach ERS 5900 switch rear mounting brackets You can proceed with the installation by connecting power and network connections to the switch. Single and multiple switch arrangements This module describes standalone and stacked arrangements. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 46 Switch installation You can stack any of the switches in the ERS 5900 Series. You can connect up to eight switch devices that are in one Rack Unit (RU) height in a stack to provide uninterrupted connectivity for up to 384 ports.
  • Page 47 (via the Cascade Down cable) becomes unit 2 (and the next unit is unit 3 and so on), until the maximum stack configuration (up to eight units for an ERS 5900 Series stack and up to four units for an ERS 59100 stack) is reached. If the base unit is changed to another unit in the stack, the new base unit keeps its original unit number in the stack.
  • Page 48 (stack down) direction. The following illustration shows a cascade down (stack down) configuration for ERS 5900 switch series. The ERS 59100 switch can be connected similarly. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 49 Figure 24: ERS 5900 cascade down configuration Note: Return cable length may vary depending on unit spacing. Ensure you order the proper length return cable to provide adequate strain relief. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 50 Switch installation Important: Since many network management software packages assume a cascade down (stack down) configuration, Avaya recommends the usage of this configuration. For stack installation procedures, see Stack configuration on page 53. Cascade up In a cascade up (stack up) configuration, the base unit is physically located as the top unit in the stack.
  • Page 51 Return cable length may vary depending on unit spacing. Ensure you order the proper length return cable to provide adequate strain relief. For stack installation procedures, see Stack configuration on page 53. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 52 Redundant cascade stacking The 5900 Series switches allow a stack of up to eight units in a 5900 Series stack. If any single unit fails or if a cable is accidently disconnected, other units in the stack remain operational without interruption.

  • Page 53: Stack Configuration

    You can change base unit switches with switches on (hot), but changes do not take affect until switches are rebooted. Selecting a base unit About this task This procedure describes the steps to select a base unit. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 54 Standard, ANSI/TIA/EIA 568-B fitted with an RJ-45 Module Jack. Console Port Serial cable with a DB-9 female connector on both ends. The maximum length for the console port cable is 25 feet (8.3 meters). Table continues… September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 55: Connecting A Transceiver To The Switch Or Switch Stack

    The following sections describe small form factor pluggable (SFP) transceivers in the Ethernet Routing Switch 5900 Series. For installation and removal procedures, see Installing Transceivers and Optical Components on Avaya Ethernet Routing Switch 4900 and 5900 Series, NN47211-302. Installing transceivers About this task This procedure describes the steps used to install transceivers.

  • Page 56: Supported Optical Devices

    Important: Avaya recommends that you use Avaya branded SFP and SFP+ transceivers as they undergo extensive qualification and testing. Avaya is not responsible for any problems that arise from using non-Avaya branded SFP and SFP+ transceivers.
  • Page 57 Small form-factor pluggable plus (SFP+) transceivers SFP+ transceivers are hot-swappable input and output enhancement components that allow 10 gigabit connections. All Avaya SFP+ transceivers use Lucent connectors (LC) to provide precision keying and low interface losses. The following table lists and describes the Avaya SFP+ models.

  • Page 58: Checking Status Leds To Verify Switch Installation

    You must consider the minimum attenuation requirement based on the specifications of third-party equipment. For more information about minimum insertion losses for Avaya optical products, see Installing Transceivers and Optical Components on Avaya Ethernet Routing Switch 4900 and 5900 Series, NN47211-302.
  • Page 59 2. View the status LED states to verify that the fan trays and power supplies are installed and operating correctly. You can also verify the status and operating mode of the unit. For status LED state descriptions, see the following table. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 60 Check the Cascade Up and Down cable connections. Note: If rear port mode is enabled, both Up and Down LEDs blink Emerald in synchronization. The Base LED is off. Table continues… September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 61 The fan tray in position 1, 2, 3, or 4 is front to back airflow and has degraded. Check for a fan failure and replace if necessary. Table continues… September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 62: Ip Address Information Configuration

    Indicates that the link has been lost. IP address information configuration About this task The following sections contain information necessary to configure IP address parameters on the switch. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 63 3. Connect to the switch using the terminal or terminal emulation application. 4. After the Avaya banner is displayed, press CTRL + Y to display the main menu. The version of the main menu displayed is dependent on whether the switch is part of a standalone or stacked switch configuration.
  • Page 64 VT100/ANSI. 3. Connect to the switch using the terminal or terminal emulation application. 4. After the Avaya banner is displayed, press CTRL + Y to display the main menu. 5. Select Command Line Interface. . . from the main menu.
  • Page 65 • Ensure the terminal from which you ping the switch is on the same network as the switch. Procedure Ping the 5900 Series switch from a terminal or workstation that is on the same network. If the network device sends a ping reply, a message indicates that the specified IP address is alive and can communicate with other devices.

  • Page 66: Chapter 6: Installation Reference

    Chapter 6: Installation reference About this task This section provides reference information for the Ethernet Routing Switch 5900 Series. Console and management connections The left front panel of the switch contains the Status LEDs, Console port, Out of Band Management port, and a USB 2.1 port, as well as a micro-USB Type B port (reserved).

  • Page 67: Rj-45 Connector Pin Assignments

    The following section outlines the connector pin assignments for the RJ-45 connectors in the Ethernet Routing Switch 5900 Series. Avaya Ethernet Routing Switch 5900 non-PoE The following table outlines the RJ-45 connector pin assignments in the Avaya Ethernet Routing Switch 5900 Series non-PoE switches. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 68: Avaya Ethernet Routing Switch 5900 Series Poe

    TP0- TP3+ TP2+ TP3- TP2- Avaya Ethernet Routing Switch 5900 Series PoE The following table outlines the RJ-45 connector pin assignments in the Avaya Ethernet Routing Switch 5900 Series PoE switches. Connector Pin Number Signal for 10/100Base-T Signal for 10/100Base-T...

  • Page 69: Chapter 7: Translations Of Safety Messages

    Chapter 7: Translations of safety messages This module contains translations of the safety messages found in the Avaya Ethernet Routing Switch 5900 Series documentation suite. Safety messages Caution: When mounting this device in a rack, do not stack units directly on top of one another in the rack.
  • Page 70 Attenzione: Se nello slot non vengono installati moduli, assicurarsi di mantenere la piastra di copertura metallica in sede sopra lo slot. La rimozione della piastra impedisce la ventilazione e il corretto raffreddamento dell’unità. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 71 Vorsicht: Verwenden Sie nur Netzkabel mit Schutzerdung. Ohne ordnungsgemäße Schutzerdung besteht für Personen, die den Switch berühren, die Gefahr eines elektrischen Schlages. Eine nichtvorhandene Schutzerdung kann zu sehr starken Abstrahlungen führen. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 72 Senza un’adeguata messa a terra, chiunque tocchi lo switch corre il rischio di ricevere una scossa elettrica. L’assenza di un percorso per la messa a terra verso lo switch può comportare un eccesso di emissioni. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...

  • Page 73: Chapter 8: Resources

    4900 and 5900 Series, NN47211-103. For more information on new features of the switch and important information about the latest release, see Release Notes for Avaya Ethernet Routing Switch 4900 and 5900 Series, NN47211-400. For more information about how to configure security, see Configuring Security on Avaya Ethernet Routing Switch 4900 and 5900 Series, NN47211-505.

  • Page 74: Searching A Documentation Collection

    Avaya Mentor videos provide technical content on how to install, configure, and troubleshoot Avaya products. About this task Videos are available on the Avaya Support website, listed under the video document type, and on the Avaya-run channel on YouTube. Procedure •...

  • Page 75: Subscribing To E-Notifications

    Application & Technical Notes for Ethernet Routing Switch 5000 Series. Procedure 1. In an Internet browser, go to https://support.avaya.com. 2. Type your username and password, and then click Login. 3. Under My Information, select SSO login Profile.
  • Page 76 7. In the PRODUCT NOTIFICATIONS area, click Add More Products. 8. Scroll through the list, and then select the product name. 9. Select a release version. 10. Select the check box next to the required documentation types. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
  • Page 77 Subscribing to e-notifications 11. Click Submit. September 2017 Installing Avaya ERS 5900 Series Comments on this document? infodev@avaya.com...
