  • Page 1 ® DataMan 8072 DL Reference Manual 2019 November 15 Revision: 6.1.6SR2.2...

  • Page 2: Legal Notices

    Copyright © 2019. Cognex Corporation. All Rights Reserved. Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as well as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents.

  • Page 3: Table Of Contents

    LED Wavelengths Connection Options Connecting a DataMan 8072Through Ethernet Troubleshooting an Ethernet Connection Connecting a DataMan 8072 DL Through RS-232 Connecting a DataMan 8072 through USB Using Your Device Through USB Using DataMan 8072 Wireless Reader Connecting to a Wireless DataMan 8072 Through a Base Station...
  • Page 4 Table of Contents Reader Control Codes Keyboard Language (Corded Readers Only) Precautions...

  • Page 5: Symbols

    Symbols Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.

  • Page 6: Getting Started

    Getting Started Getting Started About DataMan 8072 DL The DataMan 8072 readers offer the industry’s most advanced technology for reading 1D and 2D codes regardless of size, quality, printing method or surface, and belong to the only industrial handheld ID reader family that offers Industrial Ethernet communication.

  • Page 7: Dataman 8072 Dl Accessories

    Wireless Protocol Ethernet with RS-232 Bluetooth Industrial Protocols DMA-IBASE-BT-02 √ √ √ √ DataMan 8072 DL Accessories DataMan 8072 Reader Other DMCM-SERIALM-00 Serial/USB slide-in Ethernet slide-in DMCM-ENETM-00 Bluetooth slide-in DMCM-BTM-00 Charging Base Station DMA-CBASE-01 Intelligent Bluetooth Base Station DMA-IBASE-BT-02 Power Supply for base station...

  • Page 8: Dataman 8072 Dl Reader Cables

    Getting Started *XX can be US, EN, UK, or JP DataMan 8072 DL Reader Cables RS-232 coiled cable for reader, 2.5 m DM8000-RS232-02 RS-232 industrial cable for reader, 2.5 m DM8000-RS232IND-02 RS-232 coiled cable for reader, 4 m DM8000-RS232-05 USB cable, 2.5 m DM8500-USB-00 USB coiled cable, 2.5 m...

  • Page 9: Physical Layout Of The Reader

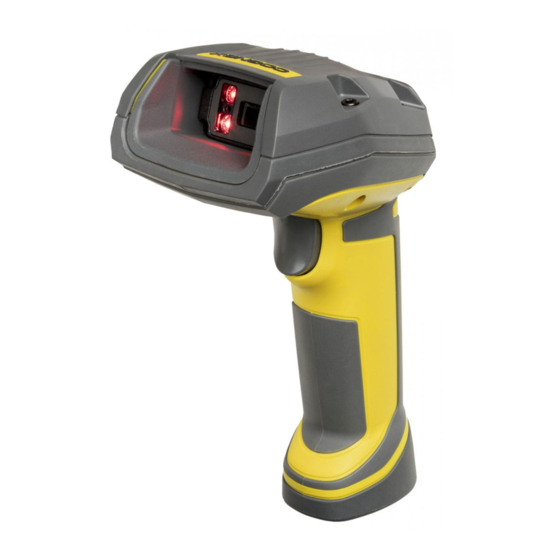

    Getting Started Physical Layout of the Reader Illumination module LED aimers Illumination LEDs Trigger (press and hold to read) Lanyard hook Indicator light Communication module insertion point...

  • Page 10: Physical Layout Of The Base Station

    Getting Started Physical Layout of the Base Station DMA-IBASE-BT-02 Base station status indicators PAIR sticker - Reading the code pairs the base station with the device Connection point to the reader: pairing reader and base station non-wireless communication charging RS-232 Power plug (24V, max.

  • Page 11: Setting Up Your Dataman 8072 Dl

    Setting Up Your DataMan 8072 DL Setting Up Your DataMan 8072 DL Setting Up the Reader To be able to connect to your reader on your computer, you must perform the following steps: 1. 1. Install the DataMan Setup Tool on your computer.

  • Page 12: Dataman 8072 Dl Specifications

    Setting Up Your DataMan 8072 DL Select a COM port or a Network device and click Connect. DataMan 8072 DL Specifications 254 g (without slide-in) Weight 0ºC — 40ºC (32ºF — 104ºF) Operating Temperature -10ºC — 60ºC (14ºF — 140ºF)

  • Page 13: Led Wavelengths

    Setting Up Your DataMan 8072 DL DMA-IBASE-BT-02 Operating Temperature 0ºC — 45ºC (32ºF — 113ºF) Storage Temperature -40ºC — 60ºC (-40ºF — 140ºF) Maximum Humidity 95% (non-condensing) 24V +-10%, 15 W maximum LPS or NEC class 2 Power Supply Requirements...

  • Page 14: Connection Options

    Connection Options Connection Options Connecting a DataMan 8072Through Ethernet 1. Connect the Ethernet slide-in (DMCM-ENETM-00) to your DataMan 8072. 2. With a 2.5 mm Allen wrench, tighten the screws so that the slide-in is firmly locked. 3. Insert the plug and slide the cable lock up to the reader, and twist the cable lock in place. Use the DM8000-ECABLE-05 (5 meters) or the DM8000-ECABLE-30 (30 meters).

  • Page 15: Troubleshooting An Ethernet Connection

    Setup Tool and your Ethernet connection. If none of the above helps, reset your reader to factory defaults by scanning the Reset Scanner to Factory Defaults code below. Connecting a DataMan 8072 DL Through RS-232 1. Connect the serial slide-in (DMCM-SERIALM-00) to your DataMan 8072.
  • Page 16 Connection Options 2. With a 2.5 mm Allen wrench, tighten the screws so that the slide-in is firmly locked. 3. Insert the plug and slide the cable lock up to the reader and twist the cable lock in place. Use the DM8000-RS232-02 cable (2.5 meters) or the DM8000-RS232-05 cable (5 meters). For power supply, use the DataMan 8000 Power Supply (DM100-PWR-000).

  • Page 17: Connecting A Dataman 8072 Through Usb

    Connection Options Note: Power on the RS-232 cable can be supplied by either the DC Power Plug or Pin 1 of the D-SUB. DO NOT use both in parallel. Connecting a DataMan 8072 through USB 1. Connect the serial slide-in (DMCM-SERIALM-00) to your DataMan 8072. 2.

  • Page 18: Using Your Device Through Usb

    Connection Options Using Your Device Through USB If you connect your reader with the coiled USB cable, you must use your device in USB 1.1 mode. With a straight USB cable, you can use your device in both modes. Change the USB Connection in the Serial tab of the Communication Settings pane in DataMan Setup Tool, or scan the appropriate code from the DataMan Configuration Codes document.

  • Page 19: Using Dataman 8072 Wireless Reader

    Connection Options Using DataMan 8072 Wireless Reader Connecting to a Wireless DataMan 8072 Through a Base Station 1. Connect the wireless slide-in (DMCM-BTM-00) to your DataMan 8072. 2. With a 2.5 mm Allen wrench, tighten the screws so that the slide-in is firmly locked. 3.
  • Page 20 Connection Options 4. Insert the plug and twist it in place. 5. Power up the DMA-IBASE-BT-XX base station using a 24V power supply (DMA-24VPWR-XX). 6. Connect your base station to your PC using either serial, USB or Ethernet communication. DMA-IBASE-BT-02 RS-232 connection USB connection Power...

  • Page 21: Pairing Strategy (Dma-Ibase-Bt-02)

    Connection Options Power to the base station can be supplied by either the DC power plug or by wiring in 24V. DO NOT use both in parallel. The DC power plug is a 24VDC power supply (DMA-24VPWR-xx), 3.5 mm x 1.3 mm. Note: Be careful to use the appropriate connector for RS-232.
  • Page 22 Connection Options The reader then blinks green/blue until it gets paired with the base station (or until the end of the 20 second timeout period). When the reader is put on the base station, the base station drops its pairing with its old reader and pairs with the new reader.

  • Page 23: Base Station Routing Capabilities

    Connection Options The base station that is paired with a certain reader signals a bad reader alert (beeps and flashing red indicators) also when another, unassigned reader is put into it. Base Station Routing Capabilities The base station is visible as connected through either RS-232, USB or Ethernet, but it routes data through the wireless interface to the reader.
  • Page 24 Connection Options See the following table for connection options according to communication type: Base Station Connection Type How to Connect RS-232 Connect to the COM port of the base station. Connect to the COM port of the wireless reader. Ethernet Connect to the terminal program using the IP address of the reader.

  • Page 25: Summary Of Wireless Buffering Indicators

    Connection Options When the buffer is full, no more codes are read. The reader does not discard the oldest read. When the buffer is full, the reader beeps and the status indicator becomes white. Summary of Wireless Buffering Indicators Condition Status Indicator: Reader Status Indicator: Base Station Sounds...
  • Page 26 Connection Options You can also check the status of the battery in the DataMan Setup Tool. Place the reader on the base station for charging. Make sure that the pins at the end of the handle make contact with the pins in the base station.
  • Page 27 Connection Options Condition Status Indicator: Reader Status Indicator: Base Station steady blue, indicating connection flashing red Battery low indicators flashing blue, indicating data transfer steady green, indicating connection Reader is charging in the base station steady indicators flashing green, indicating data transfer steady green, indicating connection green Reader is fully charged in the base station...

  • Page 28: Wireless Reader: Changing Batteries

    The battery used in these devices may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 60ºC (140ºF), or incinerate. Replace battery with Cognex DMA-HHBATTERY- 01 only. The use of another battery may present a risk of fire or explosion.
  • Page 29 Connection Options 4. Put the end cap back on and twist it. Make sure that the triangle aligns with the circle when the cover is locked. 5. If using DMA-CBASE-01, place the battery in the spare battery charger in the direction of the small triangle of the battery.

  • Page 30: Reading Codes With The Dataman 8072 Dl

    Reading Codes with the DataMan 8072 DL Reading Codes with the DataMan 8072 DL Industrial Protocols The DataMan 8072 readers support the following industrial protocols: EtherNet/IP™ PROFINET SLMP Protocol Modbus TCP Select the industrial protocol tools and sample programs when installing the DataMan Setup Tool.

  • Page 31: Trigger Types

    Switch to Manual trigger mode in Setup Tool, then switch back to Presentation mode Scan the Enter Presentation Reader Configuration Code Field of View and Reading Distances The following map shows the range of reading distances available for different code sizes and focus positions. DataMan 8072 DL field of view and reading distances:...

  • Page 32: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning and Maintenance Cleaning the Reader Housing To clean the outside of the reader housing, use a small amount of mild detergent cleaner or isopropyl alcohol on a cleaning cloth. Do not pour the cleaner directly onto the reader housing. CAUTION: Do not attempt to clean any DataMan product with harsh or corrosive solvents, including lye, methyl ethyl ketone (MEK) or gasoline.

  • Page 33: Compliance Information, Warnings And Notices

    LED Safety Statement For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed.

  • Page 34: Compliance Statements: Dataman Base Station

    However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow. Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support.

  • Page 35: 中 国 大 陆 Rohs (Information For China Rohs Compliance)

    Compliance Information, Warnings and Notices For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed.
  • Page 36 Reader Control Codes Reader Control Codes Keyboard Language (Corded Readers Only)
  • Page 37 Precautions Precautions To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: Route cables and wires away from high-current wiring or high-voltage power sources to reduce the risk of damage or malfunction from the following causes: over-voltage, line noise, electrostatic discharge (ESD), power surges, or other irregularities in the power supply.
