  • Page 1 Cognex DM8050X Barcode Reader In Stock Used and in Excellent Condition Open Web Page https://www.artisantg.com/94843-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
  • Page 2 COGNEX ® DataMan 8050 ® Quick Reference Guide...
  • Page 3: Getting Started

    Connecting Through Ethernet • Troubleshooting an Page 18 Ethernet Connection • Connecting Through RS-232 • Connecting through USB Connecting to a Wireless DataMan 8050 • Pairing Strategy Using DataMan 8050 Wireless • Base Station Routing Capabilities • Ad-hoc Mode • Page 22 Readers Infrastructure Mode •...
  • Page 4: About Dataman 8050

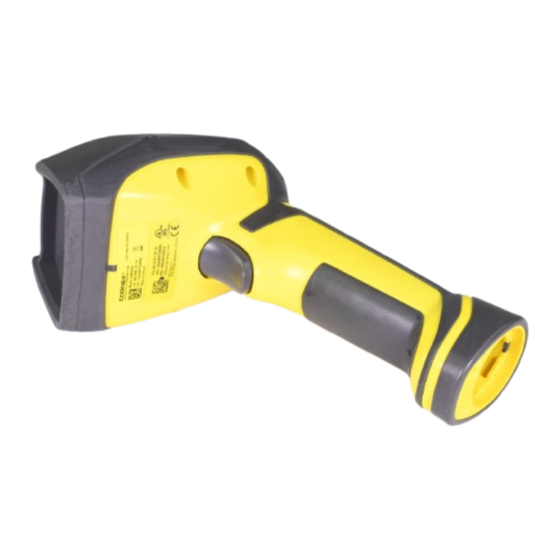

    About DataMan 8050 An intelligent base station is also The DataMan 8050 readers offer the industry’s most advanced technology provided when the DataMan 8050 for reading 1D and 2D codes regardless of size, quality, printing method or reader uses the wireless (Bluetooth surface, and belong to the only industrial handheld ID reader family that offers or WiFi) communication module.
  • Page 5: Dataman 8050 Accessories

    RS-232 industrial cable Multi-Battery Charger USB cable, 2.5 m reader for reader, 2.5 m DMA-MBC-xx DM8500-USB-00 DM8000-RS232IND-02 DMA-HHBATTERY-01 POE Adapter POE Adapter USB coiled cable, 2.5 m CPS-24V-POE4 CPS-24V-POE1 DM8500-USBC-02 6 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 6: Physical Layout Of The Reader

    3 meters • Ethernet cable for base station: Use any standard CAT5/5e, SF/FTP or S/FTP cable • DMA-USB-00: Straight 10ft USB cable Lanyard hook Indicator light Communication module insertion point 8 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 7: Physical Layout Of The Base Station

    Power: RED = base powered / BLINK = wrong reader in base RS-232 • Communication: BLUE = Wireless link / BLINK = Wireless communication • Cradle connections: GREEN = reader properly inserted / BLINK = cradle USB interface communication 10 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 8: Overview Of Setting Up The Reader

    1. Install the Setup Tool on your computer. support/dataman and follow the on-screen steps. 3. Connect the DataMan 8050 to your PC. 4. Launch Setup Tool and click Refresh. The reader or the base station appears under COM ports or Network devices.
  • Page 9 Observe the following electrical requirements: Connecting a DataMan 8050 Through RS-232 3. Insert the plug and slide 2. With a 2.5 mm 1. Connect the Reserved the cable lock up to the serial slide- Allen Wrench, reader and twist the cable...
  • Page 10: Connecting A Dataman 8050 Through Usb

    1. Disconnect from Setup Tool if cable (2.5 meters). you are connected. 1. Disconnect from Setup Tool if NOTE: DataMan 8050 does not require an external power supply. you are connected. 2. Scan the “Enable USB Keyboard for the base 2.
  • Page 11: Connecting To A Wireless Dataman 8050 Through A Base Station

    Connecting to a Wireless DataMan 8050 Through a Base Station 2. With a 2.5 mm 3. Insert the battery. 4. Insert the plug and twist it in place. 1. Connect the wireless slide-in Allen Wrench, (DMCM-BTM-00) tighten the to your DataMan screws so that 8050.
  • Page 12 24V. DO NOT use both in parallel. The DC power plug is a 24VDC power supply (DMA-24VPWR-xx), 3.5mm x 1.3mm. NOTE: Be careful to use the appropriate connector for RS-232. (See page 19.) 20 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 13: Pairing Strategy (Dma-Ibase-Bt-Xx)

    • Configure wireless communication settings by connecting to the base station. In order for the changed settings to be synchronized between the DataMan 8050 wireless reader and the base station, place your reader in the base station after your changes are saved. To assign a static IP address to the base station or the reader when communicating via Ethernet, connect to the base station in Setup Tool.
  • Page 14: Base Station Routing Capabilities

    The base station that is paired with a certain reader signals a bad reader alert (beeps and flashing NETWORK red indicators) also when another, unassigned reader is put into it. 24 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 15: Infrastructure Mode

    • Also note that placing the reader in the intelligent base station automatically re-assigns it to the base station unless it is unplugged from the network first. 26 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 16: Wireless Reader: Buffering Data

    Type RS-232 Connect to the COM port of the base station. Blinking blue status indicator: wireless connection is alive. Connect to the COM port of the wireless reader. 28 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 17: Summary Of Wireless Buffering Indicators

    No read: (default) No read: no beep is full indicator becomes white 30 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 18: Wireless Reader: Charging

    Blinking red status indicator indicates low battery or thermal shutdown mode. You can also check the status of the battery in Setup Tool. Paired Reader Charging Paired Reader Fully Charged 32 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 19: Wireless Reader: Changing Batteries

    Do not disassemble, heat above 60ºC (140ºF), or incin- erate. Replace battery with Cognex DMA-HHBATTERY-01 only. The use of another battery may present a risk of fire or explosion. 34 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 20 6. Dispose of used battery promptly. Keep it away from children. Do not disassemble and do not burn it. Use the appropriate separate take-back systems for battery disposal. 36 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 21: Trigger Types

    Trigger Types Map of Field of View and Reading Distances The DataMan 8050 trigger mode determines when the reader attempts to read a code. Use Setup Tool or the appropriate reader configuration codes to change trigger types. The following trigger types are supported: •...
  • Page 22: Industrial Protocols

    Industrial Protocols DataMan 8050 Specifications The DataMan 8050 readers support the following industrial protocols: Weight 400 g (with battery) • EtherNet/IP™ Operating Tempera- 0ºC — 45ºC (32ºF — 113ºF) • PROFINET ture • MC Protocol Storage Tempera- -10ºC — 60ºC (14ºF — 140ºF), •...
  • Page 23: Dataman Base Station Specifications

    DataMan Base Station Specifications Agency Compliance Statements The DataMan 8050 series device meets or exceeds the requirements of all ap- DMA-IBASE-BT-XX DMA-IBASE-01 plicable standards organizations for safe operation. However, as with any electrical equipment, the best Weight 300 g 328 g...
  • Page 24 Dan l-apparat huwa konformi mar-regolamenti stipulati mid-Direttivi Ewropej Questo prodotto,ove applicabile, risponde alle direttive Europee 1999/5/EC, 2004/108/ 1999/5/EC, 2004/108/EC u 2006/95/EC skond kif inhu likabbli. Kopji ta’ dawn id-dikjaraz- 44 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 25 Deklarat-sioonid on saadaval Teie kohaliku esindaja. For European Union Users Cognex complies with Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed.
  • Page 26: Agency Compliance Statements: Dataman Base Station

    Tämä laitteisto täyttää seuraavat EU Direktiivien olennaiset vaatimukset 1999/5/ EY, 2004/108/EY ja 2006/95/EY, soveltuen. Vaatimusten-mukaisuusvakuutukset 48 DataMan 8050 Quick Reference Guide DataMan 8050 Quick Reference Guide...
  • Page 27 For European Union Users e 2006/95/EC. Dichiarazioni sono disponibili presso il vostro rappresentante locale. Cognex complies with Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND Ten sprzęt jest zgodny z ogólnymi wymaganiami Dyrektyw UE nr 1999/5/EC, 2004/108/ OF THE COUNCIL of 27 January 2003 on waste electrical and electronic equipment EC i 2006/95/EC, na ile znajdują...
  • Page 28: Reader Control Codes

    Spanish Japanese Copyright © 2015 Cognex Corporation All Rights Reserved. This document may not be copied in whole or in part, nor transferred to any other media or language, without the written permission of Cognex Corporation. The hardware and portions of the software described in this document may be covered by one or more of the U.S.
