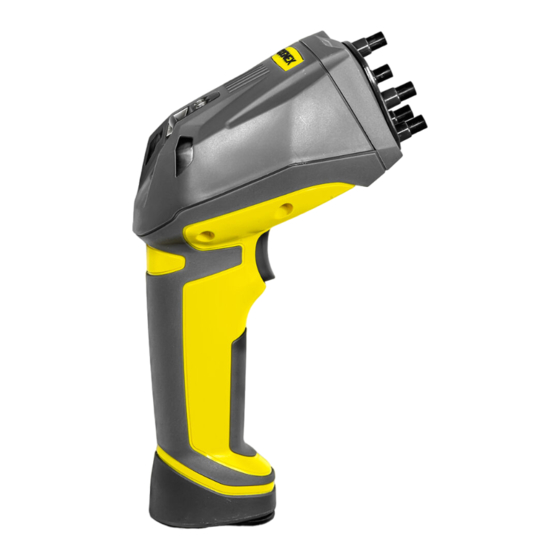

- Page 1 COGNEX ® DataMan™ 8600 Series Handheld Verifier Quick Reference Guide...
-
Page 2: Code Quality
8600 Series Handheld Verifier Page 1 Kit Contents Data Matrix Symbol Quality Page 2 Verification Stand-off Distances • Stand-off Installation • Page 3 Getting Started Calibration Verification • Results • Formatting Output Data • Page 6 Code Quality Logging Data Saving the Setup •... -
Page 3: 8600 Series Handheld Verifier Kit Contents
Data Matrix Symbol Quality Verification 8600 Series Handheld Verifier Kit Contents Cognex DataMan 8600 handheld verifiers ensure that a Data Matrix sym- bol meets the AIM DPM (Direct Part Mark) Quality Guideline. COGNEX DataMan™ Verifier Calibration Card The DataMan 8600 handheld verifiers provide:... - Page 4 Getting Started: Stand-off Distances Getting Started: Stand-off Installation The stand-off is an accessory that consists of a plastic frame that is attachable Attach the stand-off carefully to your DataMan 8600 reader. to the device (see below) and various spacers. By threading in the right spac- ers, different fixed mechanical reading distances can be set.
- Page 5 Getting Started: Calibration Code Quality: Verification In order to perform Direct Part Mark Verification, your reader must be Start the DataMan Setup Tool and connect to your reader. calibrated as described in the previous section. To read symbols and view Select the Code Quality Settings task pane.
- Page 6 Code Quality: Results Code Quality: Formatting Output Data The Results Display task pane presents the results of the verifica- Use the Data Formatting task pane of the DataMan Setup Tool to con- tion on the right-hand side. struct a customized output string each time you read and verify a symbol. This allows the verifier to return Code Quality results when connected to a third-party application instead of the DataMan Setup Tool.
- Page 7 Code Quality: Logging Data Verification Configuration: Saving the Setup ode Quality Configuration Codes (v2.1) Use the Data Logging task pane to generate a Code Quality Report for each Once you have configured your reader with the settings you want it to use, symbol that you read and verify.
- Page 8 Cognex Corporation. The hardware and portions of the software described in this document may be covered by one or more of the U.S. patents listed on the Cognex web site http://www.cognex.com/patents.asp. Other U.S. and foreign patents are pending.
