Mounting and Installation
5.2.6
Connector multifunction
Function
- Laser on: Voltage between +laser on/off and -laser on/off 2.8 V... 31 V, I < 5 mA
- Laser off: Voltage between +laser on/off and -laser on/off < 0.8 V or open
Type 1

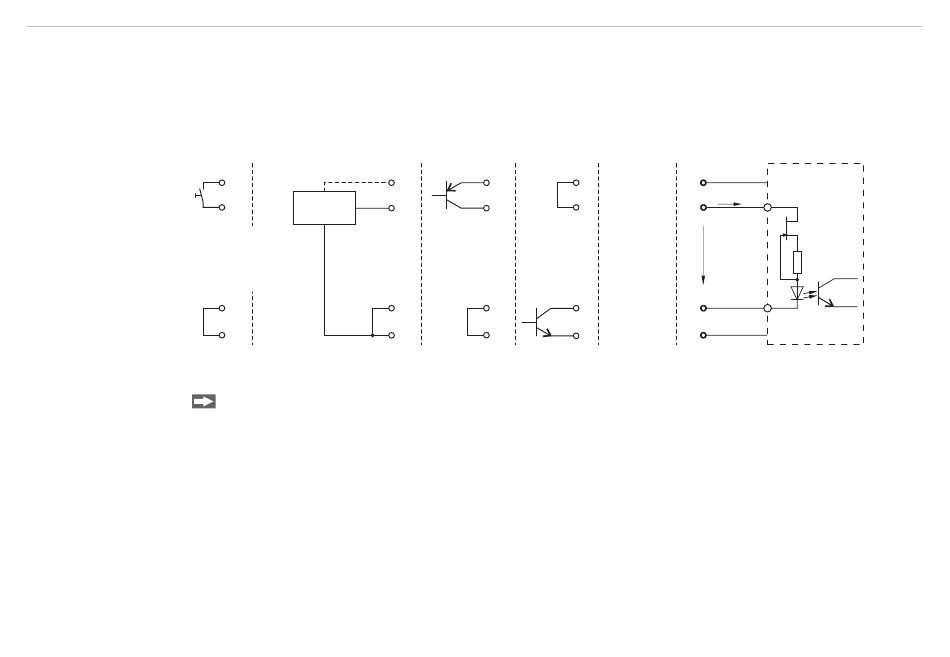

Fig. 20 Options to switch off the laser
If the voltages between pin 3 and pin 1 are < 0.8 V, the laser is off. No external resistor is necessary to the
current limitation. Connect pin 1 with 2 and pin 3 with 9 for permanent Laser on.
The external laser switching-off is implemented as a hardware solution and is a top priority. The laser can be
switched off, in addition, also by software.
scanCONTROL 25xx

External Laser Switching (optional)

Type 2
9
V
TTL o.
OUT
3
HTL
Laser off:
V < 0.8 V
OUT
Laser on:
2.8 V < V < 30 V
OUT
1
2
Use a serial key switch inside the control circuit to switch off the laser.
socket, see Fig.
14, pin assignment, see Fig.
Type 3 Type 4
9 9
PNP
3 3
1 1
NPN
2 2
15.
PCR3000-x
V
+
9 9
Red
ca. 5 mA
White
3 3
max.
30 V
1 Brown 1
GND
Blue
2 2
scanCONTROL
25xx
Page 33
