DISCHARGING WATER
The following procedure shows how to discharge water
from the water tank using the CAM and groove male QD
couplers.
1. Remove dust cap from the desired CAM and groove
male QD port from the upper manifold.
2. Place spray bar and manifold control handles in the
discharge position as referenced in Table 5.
2.0" CAM AND
GROOVE MALE QD
PAGE 24 — WT5C/WTE5C/WT5CSG WATER TRAILER • OPERATION MANUAL — REV. #4 (03/14/17)
FRONT
SPRAY

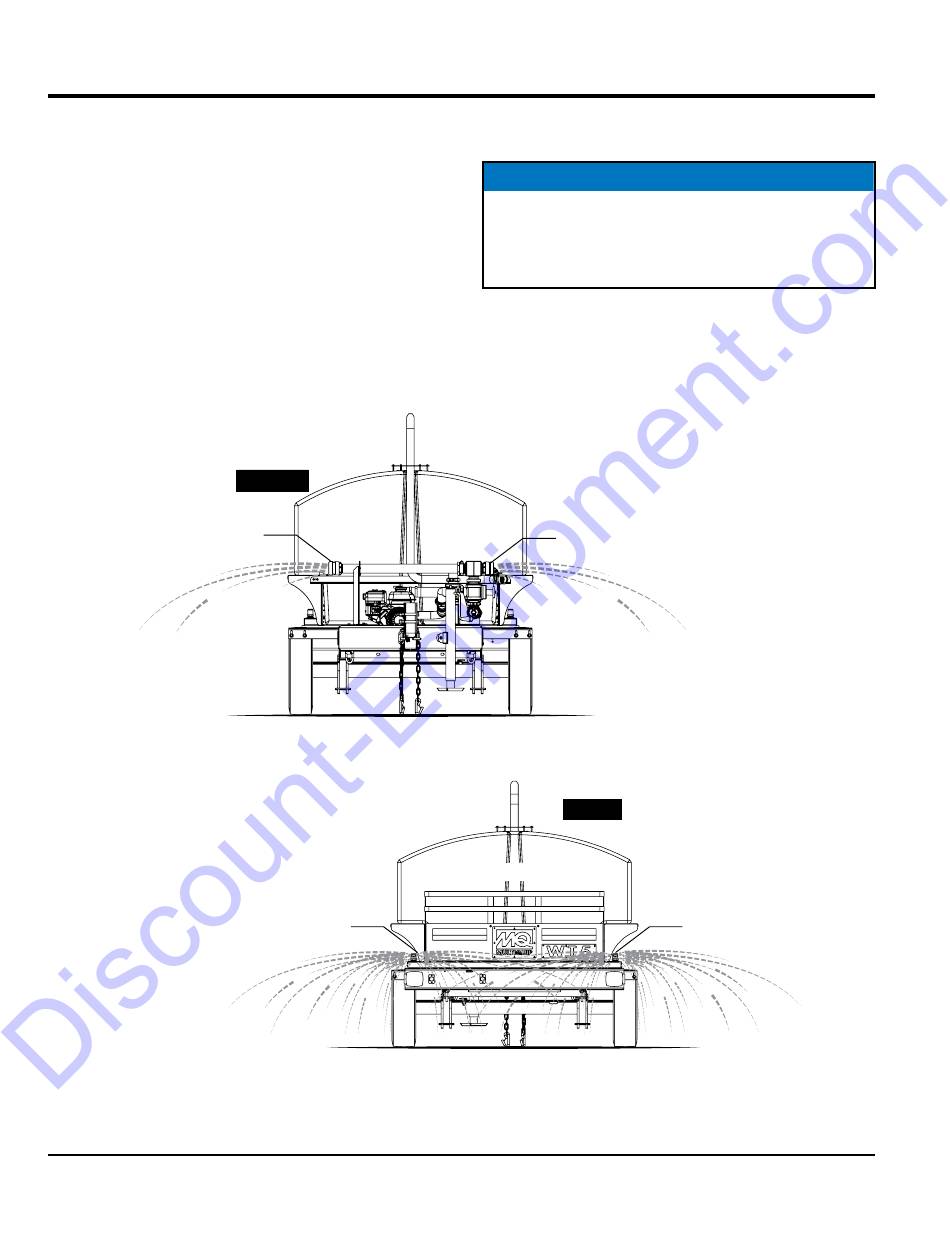

Figure 20. Discharging Water
3. Figure 20 represents a typical water discharge
application utilizing the rear spray bar.
NOTICE
Prior to engine start, the pump MUST BE primed. This
is accomplished by removing the Pump Fill Cap and
filling the Pump Casing with water and then re-securing
the fill cap.
2.0" CAM AND
GROOVE MALE QD
REAR
OPERATION
SPRAY
