Dimensions - MULTIQUIP WT5C Operation Manual

REAR VIEW
B
A
L M
Reference Dimension
Letter in (mm)
A 69.50 (1,765)
B 47.25 (1,200)
C 58.00 (1,473)
D 20.00 (508)
For total length add approximately 3.5 in. (90 mm) for coupler length.
PAGE 12 — WT5C/WTE5C/WT5CSG WATER TRAILER • OPERATION MANUAL — REV. #4 (03/14/17)
SIDE VIEW
N
K

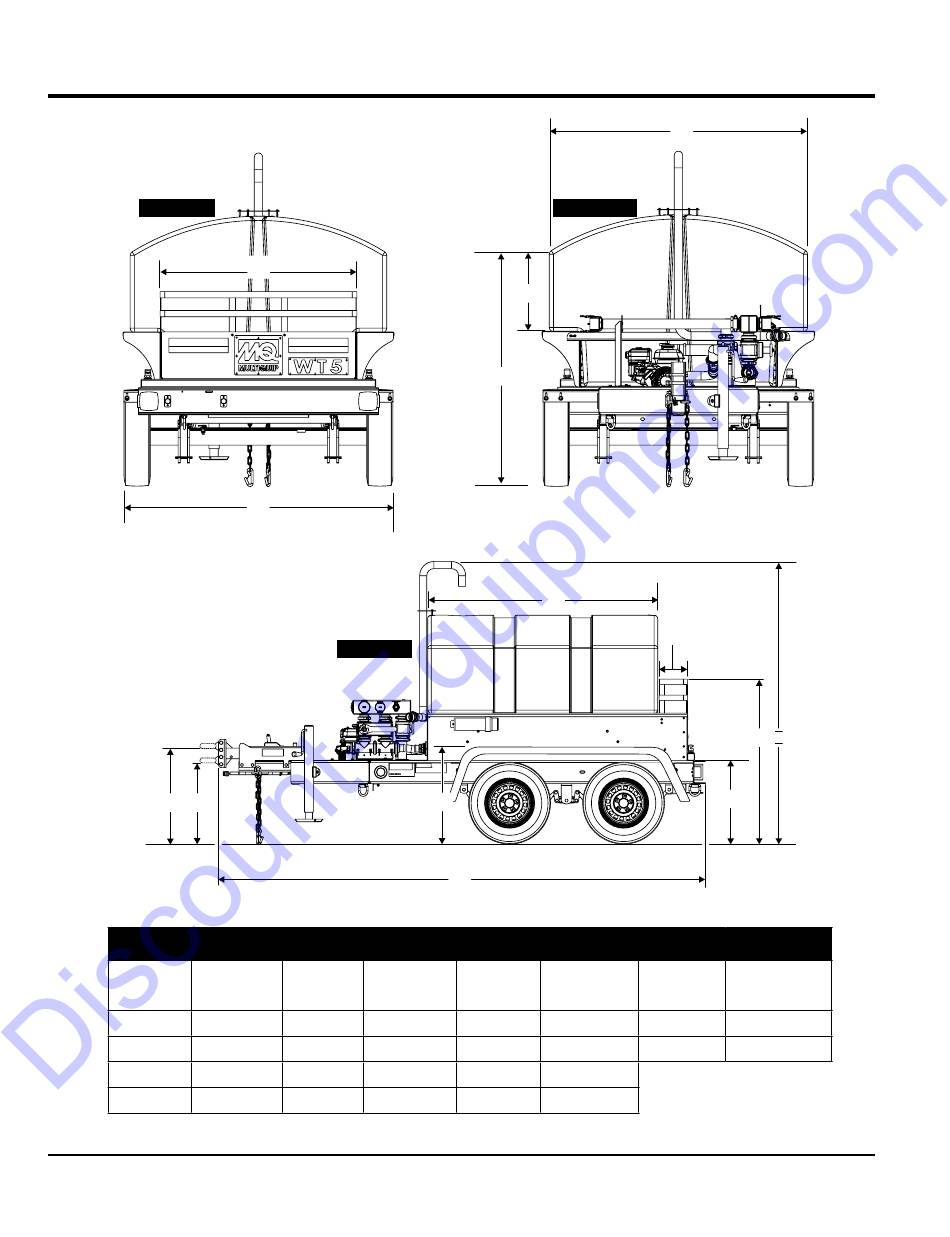

Figure 1. Dimensions
Table 3. Dimensions
Reference Dimension Reference
Letter in (mm)
E 60.50 (1,537)
F 64.00 (1,626)
G 8.00 (203)
H 46.5 (1,181)
FRONT VIEW
D
C
F
Dimension Reference
Letter in (mm)
I 80.00 (2,032)
J 25.00 (635)
K 1 142.50 (3,619)
L 22.70 (577)

DIMENSIONS

E
G
H I
J
Dimension
Letter in (mm)
M 18.70 (475)
N 31.5 (800)
