LEDs – optical indication:
230 V – voltage in the 230 V circuit
APS
ALARM – collective failure
AUX1
AUX2
PANEL LED – connector to the external LED indicators
Battery temperature sensor
Battery connectors; positive: +BAT = red, negative: - BAT = black

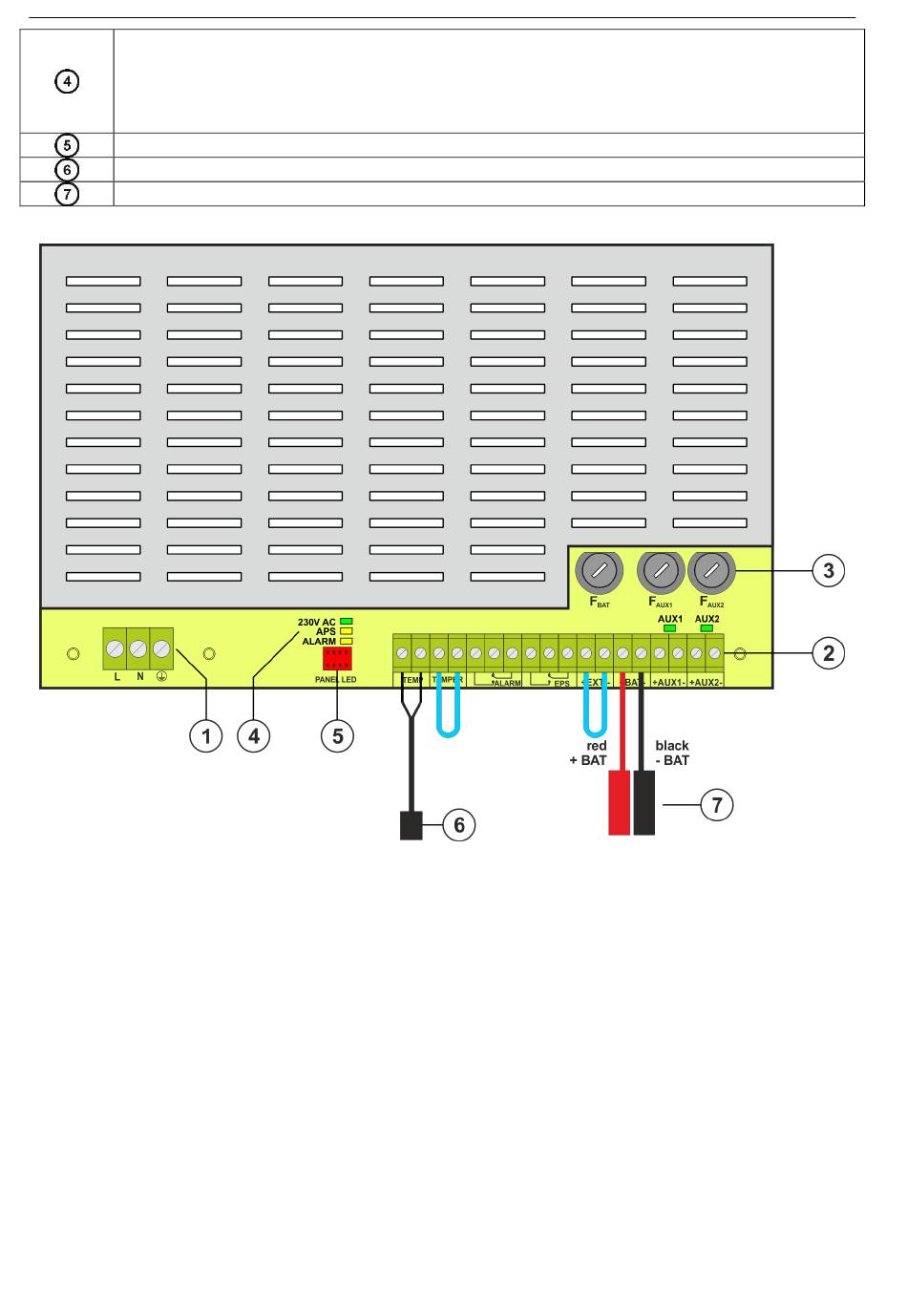

Fig. 2. The view of the power supply module based on the EN54C-2A7.
EN54C
– battery failure
– AUX1 output voltage (at the AUX1 connector)
– AUX2 output voltage (at the AUX2 connector)
