- Page 1 HADOC 1524B v.1.0 HADOC 27,6V/1,5A/2x7Ah/OC Buffer, switch mode power supply unit with automatic operation control. Edition: 1 from 19.03.2014 Supercedes edition: ------------------...
- Page 2 Maximum battery charge current: 0,16A. Total device current + battery: 1,66A max OPTIONAL POWER SUPPLY CONFIGURATIONS: (visualisation available at: www.pulsar.pl) 1. Buffer power supply unit HADOC 27,6V/2x0,75A/2x7Ah. - HADOC1524B + LB2 2x0,75A (AWZ586, AWZ585) + 2x7Ah 2. Buffer power supply unit HADOC 27,6V/3x0,5A/2x7Ah.
- Page 3 GREEN POWER plus www.pulsar.pl HADOC1524B 1.2 Block diagram (fig.1) Fig.1. The block diagram of the PSU. 1.3 Description of the module’s components and connectors (Table.1, Fig.2). Table 1. Elements of the module’s (see fig. 2). Element no. Description LED indicating presence of AC power...
- Page 4 GREEN POWER plus www.pulsar.pl HADOC1524B Description of PSU components and connectors (tab.2, fig.3). Element no. Description [Fig. 3] PSU module TAMPER, contact, sabotage protection (NC) Tab.2. Output terminals of the PSU. Fig.3. The view of the PSU. 1.4 Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4)

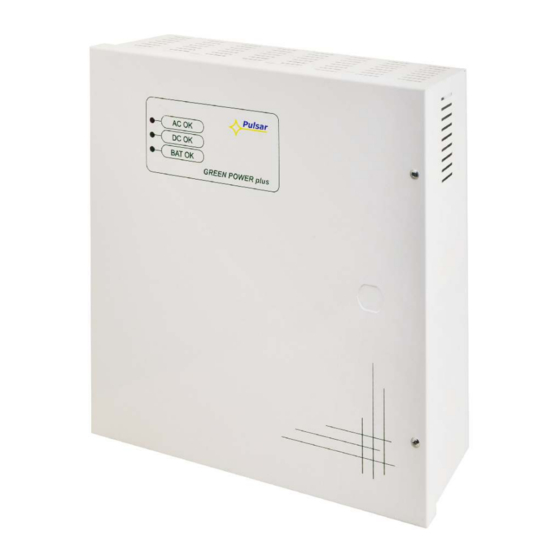

- Page 5 GREEN POWER plus www.pulsar.pl HADOC1524B PSU’s enclosure LED indication: - AC diode indicating AC power status - red, normal status – on, failure: off - AUX diode indicating DC power status at - green, normal status – on, failure: off...
- Page 6 GREEN POWER plus www.pulsar.pl HADOC1524B 2. Installation. 2.1 Requirements. The buffer PSU shall be mounted by a qualified installer with appropriate permissions and qualifications for 230V/AC installations and low-voltage installations (required and necessary for a given country). The device shall be mounted in confined spaces, according to the environment class II, with normal air humidity (RH=90% max.
- Page 7 GREEN POWER plus www.pulsar.pl HADOC1524B Moreover, the PSU is equipped with 3LEDs on the PCB board: - red LED (Fig.2, element 1) normal status (AC power): permanently illuminated. AC power absence is indicated by the AC diode going out. Caution! LED indicates power absence if the outage lasts >10s.
- Page 8 GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a four-year warranty for the equipment, counted from the device’ production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects,...
