www.pulsar.pl

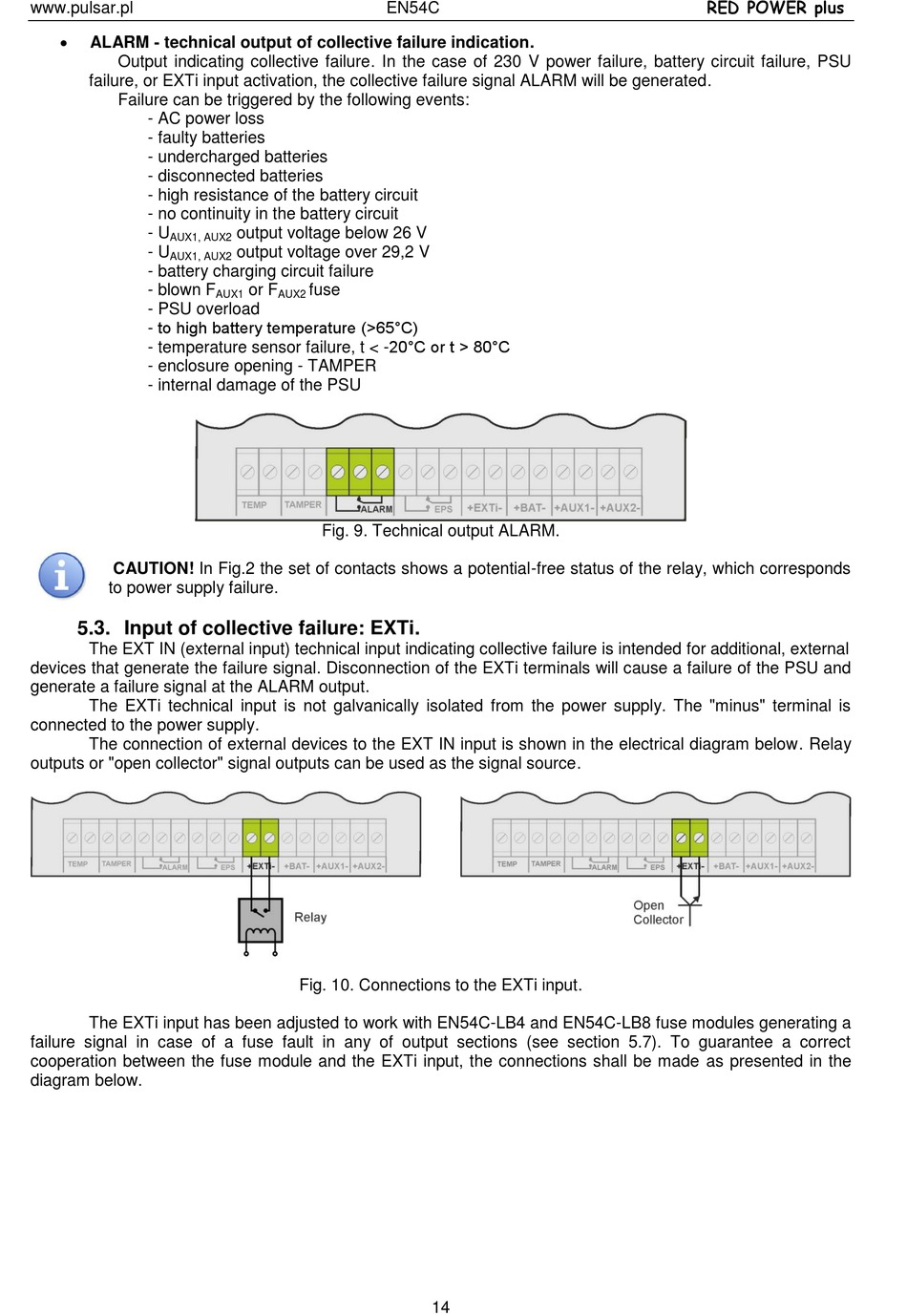

ALARM - technical output of collective failure indication.
Output indicating collective failure. In the case of 230 V power failure, battery circuit failure, PSU
failure, or EXTi input activation, the collective failure signal ALARM will be generated.
Failure can be triggered by the following events:
- AC power loss
- faulty batteries
- undercharged batteries
- disconnected batteries
- high resistance of the battery circuit
- no continuity in the battery circuit
- U
AUX1, AUX2
- U
AUX1, AUX2
- battery charging circuit failure
- blown F
- PSU overload
- to high battery temperature (>65°C)
- temperature sensor failure, t < -20°C or t > 80°C
- enclosure opening - TAMPER
- internal damage of the PSU
CAUTION! In Fig.2 the set of contacts shows a potential-free status of the relay, which corresponds
to power supply failure.

5.3. Input of collective failure: EXTi.

The EXT IN (external input) technical input indicating collective failure is intended for additional, external
devices that generate the failure signal. Disconnection of the EXTi terminals will cause a failure of the PSU and
generate a failure signal at the ALARM output.
The EXTi technical input is not galvanically isolated from the power supply. The "minus" terminal is
connected to the power supply.
The connection of external devices to the EXT IN input is shown in the electrical diagram below. Relay
outputs or "open collector" signal outputs can be used as the signal source.
The EXTi input has been adjusted to work with EN54C-LB4 and EN54C-LB8 fuse modules generating a
failure signal in case of a fuse fault in any of output sections (see section 5.7). To guarantee a correct
cooperation between the fuse module and the EXTi input, the connections shall be made as presented in the
diagram below.
EN54C
output voltage below 26 V
output voltage over 29,2 V
or F
fuse
AUX1
AUX2
Fig. 9. Technical output ALARM.
Fig. 10. Connections to the EXTi input.
14
RED POWER plus
