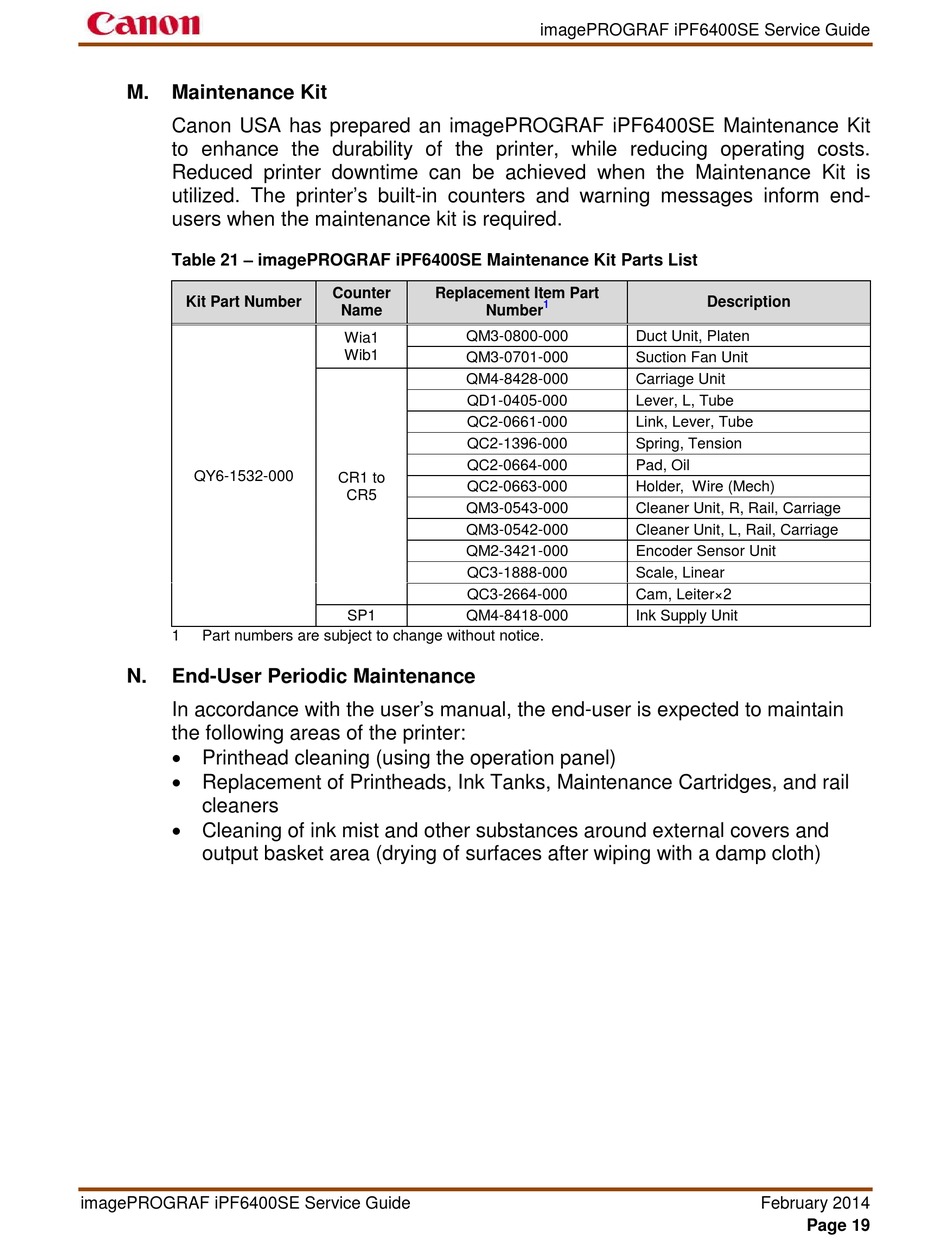

Maintenance Kit

Canon USA has prepared an imagePROGRAF iPF6400SE Maintenance Kit
to enhance the durability of the printer, while reducing operating costs.
Reduced printer downtime can be achieved when the Maintenance Kit is
utilized. The printer's built-in counters and warning messages inform end-
users when the maintenance kit is required.
Table 21 – imagePROGRAF iPF6400SE Maintenance Kit Parts List
Kit Part Number
QY6-1532-000
1 Part numbers are subject to change without notice.
N.

End-User Periodic Maintenance

In accordance with the user's manual, the end-user is expected to maintain
the following areas of the printer:
 Printhead cleaning (using the operation panel)
 Replacement of Printheads, Ink Tanks, Maintenance Cartridges, and rail
cleaners
 Cleaning of ink mist and other substances around external covers and
output basket area (drying of surfaces after wiping with a damp cloth)
imagePROGRAF iPF6400SE Service Guide
Counter Replacement Item Part
Name Number
QM3-0800-000
Wia1
Wib1
QM3-0701-000
QM4-8428-000
QD1-0405-000
QC2-0661-000
QC2-1396-000
QC2-0664-000
CR1 to
QC2-0663-000
CR5
QM3-0543-000
QM3-0542-000
QM2-3421-000
QC3-1888-000
QC3-2664-000
SP1 QM4-8418-000
imagePROGRAF iPF6400SE Service Guide
Description
1
Duct Unit, Platen
Suction Fan Unit
Carriage Unit
Lever, L, Tube
Link, Lever, Tube
Spring, Tension
Pad, Oil
Holder, Wire (Mech)
Cleaner Unit, R, Rail, Carriage
Cleaner Unit, L, Rail, Carriage
Encoder Sensor Unit
Scale, Linear
Cam, Leiter×2
Ink Supply Unit
February 2014
