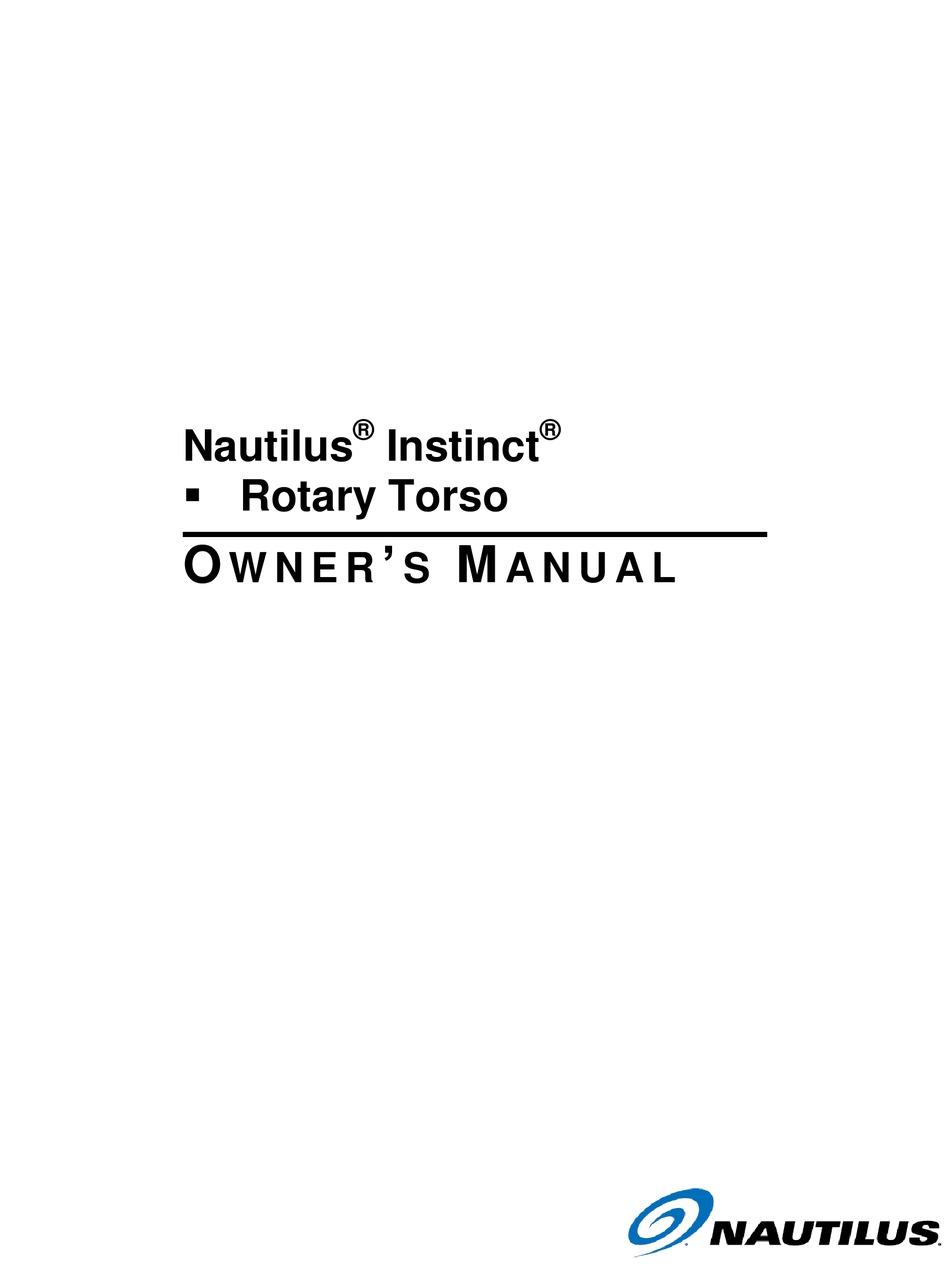

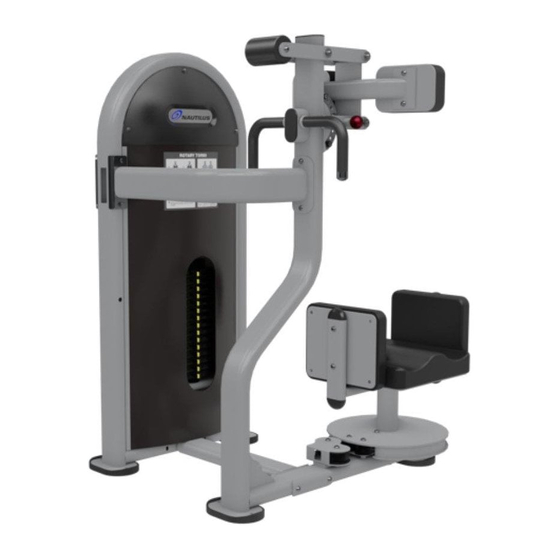

  • Page 1 ® ® Nautilus Instinct  Rotary Torso ’ W N E R A N U A L...

  • Page 2: Table Of Contents

    Every effort has been made to keep this information current; however, periodically, changes are made to the information herein, and these changes will be incorporated into new editions of this publication. All product names and logos are trademarks of their respective owners. ’ NAUTILUS INSTINCT ROTARY TORSO O WNER ANUAL...
  • Page 3 ’ NAUTILUS INSTINCT ROTARY TORSO O WNER ANUAL...

  • Page 4: Introduction

    Our mission is to provide products to mold lifelong habits for health and fitness, and the INSTINCT ROTARY TORSO will provide the path to meet your goals.

  • Page 5: Safety Instructions

    AFETY NSTRUCTIONS Read this Owner's Manual carefully before assembling, servicing or using your NAUTILUS INSTINCT ROTARY TORSO. WARNING: SERIOUS INJURY MAY OCCUR IF THESE SAFETY PRECAUTIONS ARE NOT OBSERVED. UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT. IF ANY OF THESE WARNINGS ARE UNCLEAR, CONTACT NAUTILUS PRODUCT SUPPORT FOR CLARIFICATION.

  • Page 6: Assembly And Setup

     Take time now to enter your INSTINCT ROTARY TORSO serial number in the space below. If parts are missing, or if you have any operational questions, please call Nautilus’s Service department at (800) 503-1221; have your serial number ready.

  • Page 7: Assembly

    Slide the looped end of the lanyard on the selector pin (15) onto the shaft of the top plate (11). NOTE: BE SURE to hold the lanyard in place when installing the top plate. ’ NAUTILUS INSTINCT ROTARY TORSO O WNER ANUAL...
  • Page 8 Check for proper tensioning of the weight belt by applying lateral pressure to the belt at a point midway between two pulleys. Deflection of the weight belt should be less than 25 mm. Loosen the retaining screw (39) and adjust belt tension as needed. ’ NAUTILUS INSTINCT ROTARY TORSO O WNER ANUAL...
  • Page 9 Verify the locking pin engages a drilled hole in the support. Repeat to verify the locking pin engages the drilled hole at all support positions.  Mount the unit. Engage the selector pin at a comfortable weight. ’ NAUTILUS INSTINCT ROTARY TORSO O WNER ANUAL...

  • Page 10: Anchoring

    The INSTINCT ROTARY TORSO must be anchored to the floor using through bolts or anchoring studs. Each foot pad on the unit provides two anchoring holes that will accommodate bolts of up to 12mm (7/16") diameter. Only one hole in each foot pad is required during anchoring.

  • Page 11: Exercise Guidelines

    BE SURE that each user reads and understands the information shown on all labels and placards (safety, instructional and/or other). Instruct all users on the proper use of the INSTINCT ROTARY TORSO, as well as those actions that should be avoided. ...

  • Page 12: Preventive Maintenance

    AINTENANCE MAINTENANCE SCHEDULE Nautilus strongly recommends performing regular preventive maintenance on your NAUTILUS INSTINCT ROTARY TORSO. Without regularly scheduled maintenance, normal wear and tear may cause cumulative effects, such as misalignment or premature wear, resulting in downtime. For this reason, we highly recommend following the maintenance schedules.
  • Page 13  (available through the NAUTILUS Parts Department). Fill the damaged area sparingly, using two or more coats. Allow the area to dry thoroughly between coats. Once the touch-up is complete, it can be left “as is”, or it can be blended and color- sanded to the surrounding surface.
  • Page 14 HAZARDOUS CONDITIONS FOR USERS OR OTHER BYSTANDERS. Inspect all weight belts for evidence of excessive wear or other damage. Give particular attention to the following conditions: Torn or cracked belt  Exposed belt cords  Worn edges  ’ NAUTILUS INSTINCT ROTARY TORSO O WNER ANUAL...

  • Page 15: Labels And Placards

    ABELS AND LACARDS ’ NAUTILUS INSTINCT ROTARY TORSO O WNER ANUAL...

  • Page 16: Warranty And Disclaimer

    ISCLAIMER NAUTILUS warrants all frameworks for a period of 10 years. All moving parts are warranted for 1 year. 10 year limited warranty on structural frame not including coatings. 90 days on upholstery stitching only, cables and belts. Warranty is for parts only. Warranty is good and available to the original purchaser only as noted by NAUTILUS invoice and is not transferable nor assumable.
  • Page 17 ’ NAUTILUS INSTINCT ROTARY TORSO O WNER ANUAL...
  • Page 18 ’ NAUTILUS INSTINCT ROTARY TORSO O WNER ANUAL...
  • Page 19 ’ NAUTILUS INSTINCT ROTARY TORSO O WNER ANUAL...
  • Page 20 MANUFACTURER 4400 NE 77 Avenue, Suite 300, Vancouver, WA 98662 USA Tel +1 (888) 678-2476 www.corehandf.com CUSTOMER SUPPORT Contact your local distributor, or Core Health & Fitness directly at: Tel +1-800-503-1221 www.support@corehandf.com P/N: 730-7254. April 2016...
