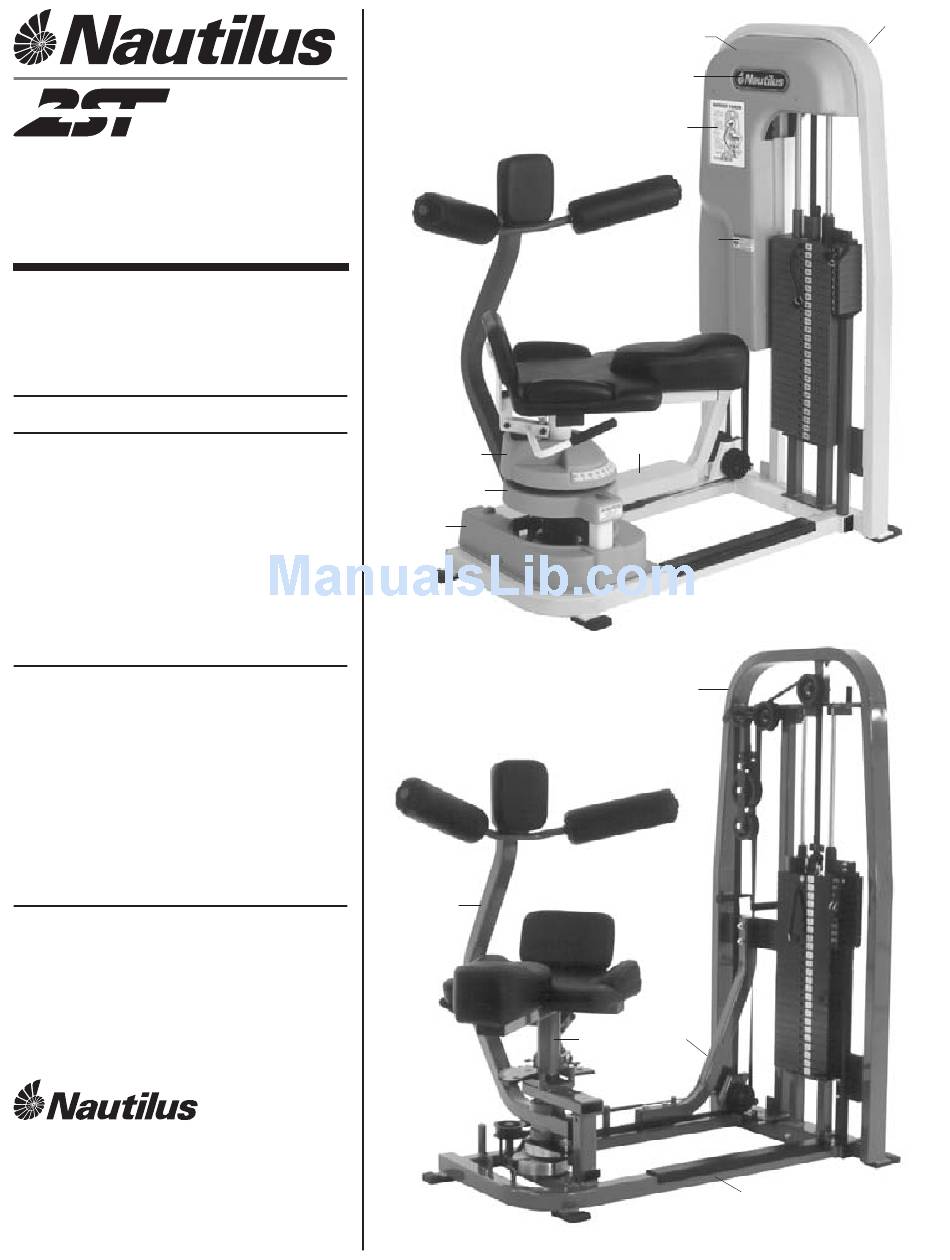

TM
ROTARY
TORSO
OWNER'S
MANUAL
REVISED: Sept. 28,1998
SERIAL NO.'S
______________
through
______________
Contents
Parts Manual
1
2
SEAT HANDLE & SEAT ASSEMBLY
3
SEAT ASSEMBLY TO BASE ASSY.
4
SEAT FRAME TO
BACK FRAME ASSEMBLY
5
BELT & PULLEY ASSEMBLY
6
WEIGHT STACK ASSEMBLY
7
WEIGHT STACK ASSEMBLY
8
PARTS LIST
9
PARTS LIST
Maintenance Manual
Follows page 9
See last pages of this manual for 2ST
Strength Circuit Exercise Order Diagram
and 2ST Floor Plan Kit.
TM
PARTS AND SERVICE
709 Powerhouse Road
Independence, Virginia 24348
800-235-2233
Fax: 540-773-2298
®
®
105
104
106
10
12
137,147
111,113A
103
P
99
1
4
2
19-4934
120,127
Advertisement
Table of Contents
Related Manuals for Nautilus 2ST ROTARY TORSO
Summary of Contents for Nautilus 2ST ROTARY TORSO
- Page 1 120,127 137,147 ® 111,113A ROTARY TORSO OWNER'S MANUAL REVISED: Sept. 28,1998 SERIAL NO.'S ______________ through ______________ Contents Parts Manual MOVEMENT ARM ASSEMBLY SEAT HANDLE & SEAT ASSEMBLY SEAT ASSEMBLY TO BASE ASSY. SEAT FRAME TO BACK FRAME ASSEMBLY BELT & PULLEY ASSEMBLY WEIGHT STACK ASSEMBLY WEIGHT STACK ASSEMBLY PARTS LIST...
- Page 2 2ST Rotary Torso ® MOVEMENT ARM ASSEMBLY 158 159...
- Page 3 2ST Rotary Torso ® SEAT HANDLE & SEAT ASSEMBLY NOTE: LOCKTITE & TORQUE TO 90-100 FT. LBS. 3/4 HEX PIN SELECTOR 07-8360 #79 152,153...
- Page 4 2ST Rotary Torso ® SEAT ASSEMBLY TO BASE ASSEMBLY NOTE: LOCKTITE & TORQUE TO 40-45 FT. LBS. (2) 3/8 X 1 FLAT HD. ALLEN BOLTS 02-2020 #106...
- Page 5 2ST Rotary Torso ® SEAT FRAME TO BACK FRAME ASSEMBLY 39 42...
- Page 6 2ST Rotary Torso ® BELT & PULLEY ASSEMBLY...
- Page 7 24 WEIGHT STACK STANDARD USE CAUTION REF # PART # 200 lb. WEIGHT STACK (20-200) WHEN WORKING 01-0010 BOLT HH2 7/16-14 X 4 1/2 BLACK WITH WEIGHT 02-9190 1/4-20 X 3/4 FLANGE BUTTON HD. SCREW STACK ! 03-1045 NUT NTE 7/16 BLACK 04-5070 RUBBER WEIGHT STACK WASHER 05-4020...
- Page 8 MINI 24 ADD-ON WEIGHT KIT REF # PART # DESCRIPTION 02-4108 3/8-16 X 3/4 ALLEN CAP SCREW 01-1258 1/2 X 3/4 HEX BOLT BLACK 01-4035 1/4 X 1-1/4 WIZ BOLT BLACK 02-4110 3/8 X 1-1/4 ALLEN CAP SCREW 02-4134 1/4 X 1/2 PAN HD TYPE "F" SCREW BLACK 03-5111 3/8 CLIP NUT 03-4290...
- Page 9 2ST ROTARY TORSO REF# PART# DESCRIPTION E.L. CODES: E.L. CODE: 2RTS, 2WRTS, 2MRTS, 2RT, 2WRT, 2SRT 2RTS FULLY SHIELDED ROTARY TORSO ST09 ADJUSTABLE SEAT KIT ROTARY TORSO 2WRTS FULLY SHIELDED WOMENS' ROTARY TORSO 49 ..01-1261 ..BOLT HH5 1/2 X 1...
- Page 10 157 ..UP8730 ..PAD MA BACK 110 ..12-1080 ..INSPECTION STICKER DECAL 158 ..01-1121 ..BOLT HH5 3/8 X 2 BLACK 111 ..12-1088 ..DECAL NAUTILUS NAMEPLATE 2 1/2 x 9 1/4 long 159 ..04-5213 ..WASHER INT LOK 3/8 BLACK 112 ..19-1291 ..DECAL SERIAL # BAR CODE 160 ..UP8740 ..PAD MA ROLLER 13"...
