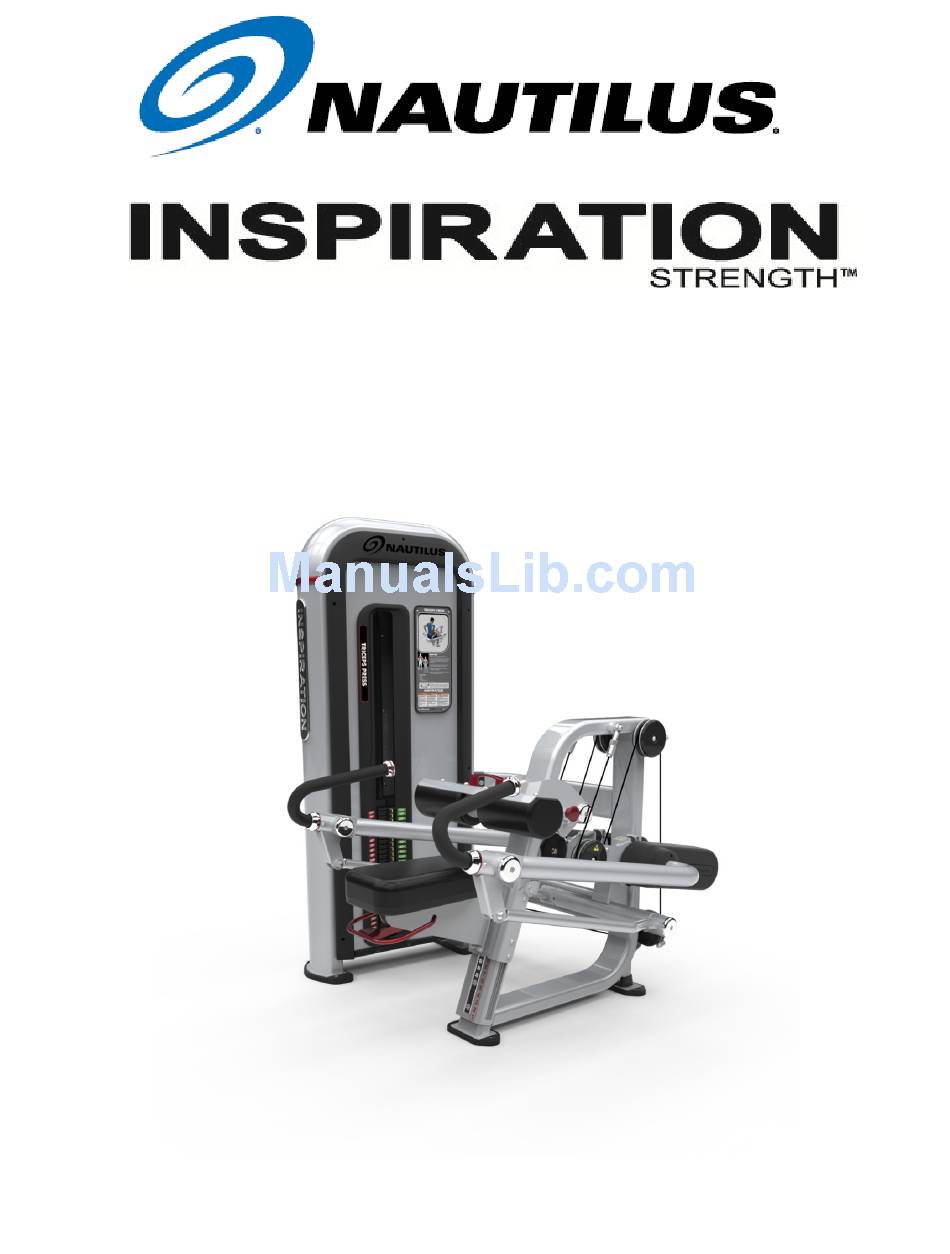

- Page 1 Triceps Press Owner’s Manual...
-
Page 2: Customer Support
Inspiration Strength Owner’s Manual Copyright 2015. Core Health and Fitness, LLC. All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission from Core Health and Fitness, LLC. Every effort has been made to keep this information current; however, periodically, changes are made to the information herein, and these changes will be incorporated into new editions of this publication. - Page 3 Table of Contents S E C T I O N 1 Safety and warning information S E C T I O N 2 Product usage and instruction Deltoid Raise S E C T I O N 3 Preventive maintenance Warning Labels & Stickers...
-
Page 4: Proper Usage
It is the sole responsibility of the purchaser of Nautilus® Inspiration Strength® products to read the owner’s manual, warning labels and instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. -
Page 5: Check For Damaged Parts
6. Cables pose an extreme liability if used when frayed. Always replace any cable at first sign of wear. Routinely inspect all cable couplers that join movement arms to the cables and replace at the first sign of wear. (consult Nautilus if uncertain or if you have questions regarding wear). - Page 6 10. Never use dumbbells or other means to incrementally increase the weight resistance. Use only those means provided by Nautilus. Do not exceed maximum the user weight of – 350 lbs. 11. When adjusting any seat, knee stabilization pad, range of motion limiter, foothold pad or any other type of adjuster, make certain that the adjusting pin is fully engaged in the hole to avoid injury.
-
Page 7: Strength Product Use

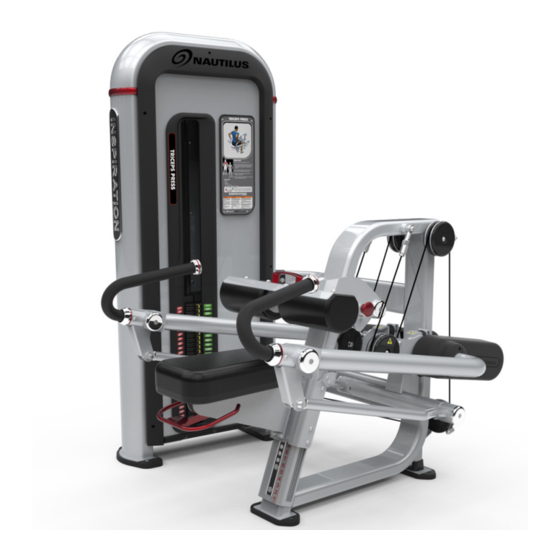

Each unit is assembled and tested at the factory and then partially dis-assembled for efficient shipping, if applicable. Each unit requires a different level of assembly that is unique to its design. Each Inspiration Strength machine is accompanied by a specific installation guide that outlines the detailed installation and set up of each unit. Each Inspiration Strength machine is delivered with its own unique installation manual included. - Page 8 Triceps Press Model: IPTD2 START FINISH INSTRUCTIONS READ ALL SAFETY WARNINGS PRIOR TO USE. ADJUST STARTING PRE STRETCH RANGE OF MOTION BY GRASPING RED ADJUSTMENT BAR LOCATED AT THE SEAT BASE AND RAISING OR LOWERING SEAT POSITION IN THE SEATED POSITION ADJUST PAD DOWN TO UPPER THIGH BY GRASPING THE RED KNOB POSITION HANDS IN THE DESIRED LOCATION FOR PRESSING DOWNWARD INITIATE MOVEMENT BY EXTENDING THE ELBOWS IN A SLOW CONTROLLED...
-
Page 9: Preventative Maintenance & Cleaning
SECTION Preventative Maintenance & Cleaning Action Daily Weekly Monthly Bi-annually Cleaning Upholstery Handgrips Main frame Guide rod Internal tower Inspect Cables Fasteners Handgrips Upholstery Labels Pulleys Main frame Lubricate Guide rods Incremental weight track Page 6... - Page 10 Note – do not use cleaners that contain solvents, alcohol or abrasives. Inspection Visual inspection of your Inspiration Strength units will insure a safe environment for your clients and alert you to any issues that may require maintenance prior to equipment failure. Proper, timely visual inspection is a critical component to the long term care of your product.
- Page 11 ! WARNING: Replace all worn cables immediately. The following conditions indicate some types of wear. Torn or Cracked Cable Sheath that exposes cable Stretched Cable Sheath Kink in the Cable Lubrication Proper cleaning lubrication of guide rods will insure that each machine operates at its highest potential and that your clients continue to enjoy a smooth efficient motion while exercising.
- Page 12 Warning labels and communication stickers The following pages show examples of the Nautilus® Inspiration Strength® warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the integrity and placement of these stickers. If you find any stickers missing or damaged each sample indicated includes its corresponding part number so that replacements may be ordered.
- Page 13 /Wd > Page 10...
- Page 14 MANUFACTURER 4400 NE 77 Avenue, Suite 300, Vancouver, WA 98662 USA Tel +1 (888) 678-2476 www.corehandf.com CUSTOMER SUPPORT Contact your local distributor, or Core Health & Fitness directly at: Tel +1-800-503-1221 www.support@corehandf.com Part Number: 19-7964...
