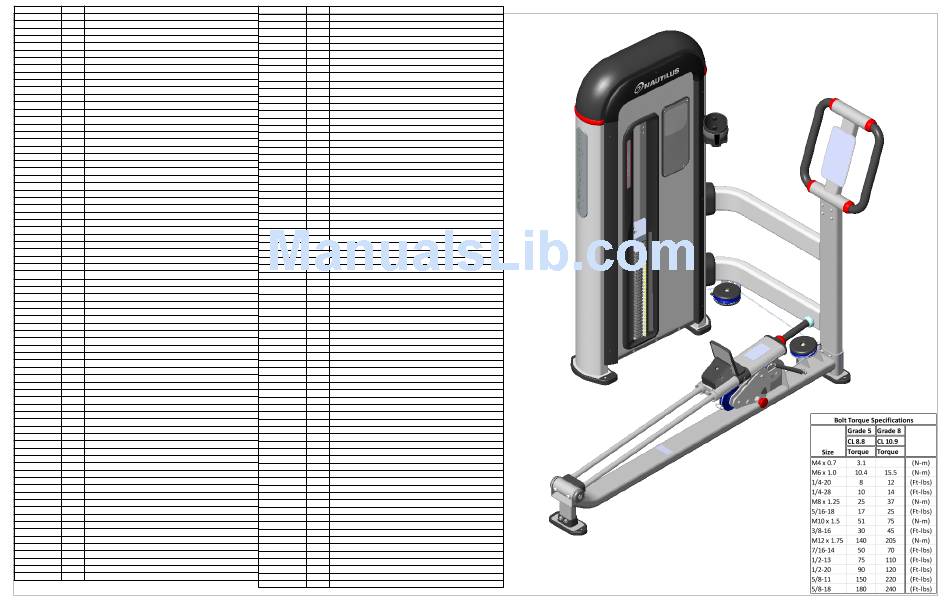

Nautilus IPGM2 Assembly Manual

Number QTY. DESCRIPTION
01-9324 2 BOLT, M8 X 1.25 20MM HHC HE ZP
01-9325 1 BOLT,M10 X 1.5, 75MM,HHC,HE,CS,ZP
01-9326 2 BOLT,M10 X 1.5, 80MM,HHC,HE,CS,ZP
02-1001 20 SCREW, M4.0 x 10L,PHT,PH,CS,ZP
02-9320 4 SCREW M6 X 1.0 X 20 SHC HK AS, ZP
02-9323 2 SCREW M6 X 1.0 20MM BHC HK ZP
02-9329 3 SCREW M10 X 1.5, 25 MM BHC HK, ZP
02-9334 12 SCREW M4 X 0.7, 20 SHC HK, BZ
03-4038 4 HEX RIVET NUT M8-1.25 (7ga) TU-SM8HUPO55ZT
04-5252 2 LOCK WASHER, M8
05-6097 6 BUSHING,M15 X 12,FLANGED
07-2058 12 SPACER IDLER PULLEY
09-8342 9 PULLEY LRGE CBLE Ø120mm X17mm BRG-SPCRS
110-3402 26 SCREW, #8-18, 3/4", HI-LOW, PHT, PH, CS, BO
12-7201 1 STICKER, PARTS, GLUTE MACHINE
12-8021 2 DECAL , WARNING, IPGM2
12-8023 1 Made In USA-Core Decal
140-3267 6 ON-SERT, PLASTIC BOSS, 8-18 THRD
19-1052 1 SERIAL NUMBER DECAL
19-7957 1 Owners Manual IPGM2
27-0035 3 Cover, Pulley, Flat Steel
27-0036 8 SPACER, PULLEY BRACKET, HUMAN SPORT
27-0165 4 BASE,HANDLE GRIP,ARMS,41MM,V2
27-0176 2 CAP,END,65MM,M10
27-0212 1 MOUNT CABLE BODY, FREE MOVE
27-0222 1 Peel & Stick Pocket, 8 1/2 x 11, Item Number: ZSTB582S
27-0224 2 SHAFT,LINKAGE 2,GLUTE VER2
27-0225 4 IDLER PULLEY SPACER GM2
27-0272 1 SCREW, M10 X 1.5,,THREAD ALL
63-2009-XX 1 WELD,LINKAGE,ARM,RIGHT,2 IPGM2 VER2
731-0040 1 STOP,Ø50X26,RUBBER
731-0064 1 ROD END,M10,FEMALE
731-0080 1 SHROUD, OUTSIDE, SHORT
731-0111 2 STOP,BUMPER,WGT PLT
731-0112 2 SET COLLAR, GUIDE ROD, 22.4mm I.D.
731-0113 1 ASSY,2.5Kg,ADD ON
731-0124 2 CAP,GUIDE ROD,RUBBER
731-0165 3 CAP,PLASTIC,PULLEY,Ø120mm
731-0213 1 PLASTIC,COVER,LEG EXT
731-0229 1 BRACKET,CLAMP,LEG EXT
731-0234 6 SCREW,M6 X1.0,30MM,BHC,HK
731-0235 4 SCREW,M8 X 1.25,75mm,BHC,HK
731-0287 2 NUT,M8-1.25 X 9.5 HEIGHT,NYLOCK
731-0350 2 Screw, M10X1.5, 25mm, SHC, HK, AS, ZP
731-0352 4 SCREW,M6X0.8,10MM,BHC,HK, ZP
731-0354 6 SCREW,M8 X 1.25,25MM,HHM,HE, ZP
731-0355 52 WASHER,PLAIN,M8
731-0359 5 SCREW,M8 X 1.25,25mm,BHC,HK
731-0362 2 SCREW,M10 X 1.5,45MM,BHC,HK
731-0363 18 NUT,M10X1.5,NYLOC
731-0364 8 SCREW, M8X1.25, 45mm, BHC, HK
731-0365 21 NUT,M8-1.25 X 8MM HEIGHT,NYLOC JAM CL 10.9
731-0366 5 SCREW,M10 X 1.5,50MM,BHC,HK
731-0367 37 WASHER,PLAIN,M10
731-0370 4 SCREW,M8 X 1.25,65mm,BHC,HK, ZP
731-0371 2 SCREW,M10 X 1.5,70MM,BHC,HK, ZP
731-0373 2 WASHER,PLAIN,M6
731-0386 1 PLACARD, HOUSING, INNER
731-0387 1 PLACARD, HOUSING, OUTER
731-0389 8 SCREW,M8 X 1.25,35mm,BHC,HK
731-0390 5 SCREW,M8 X 1.25,25mm,SHC,HK, AS, ZP
731-0418 1 SCREW,M8 X 1.25,30mm,FHM,HK,CS, ZP
731-0446 1 WINDOW,SHROUD,SHORT
731-0482 1 STICKER,LENTICULAR, IPGM2
731-0500 2 STICKER,NAME,GLUTE PRESS
731-0507 1 STICKER, SWITCH, INC ADJ +5KG
731-0511 1 STICKER,ARROW,POINTER,SEAT
731-0512 8 STICKER,CAUTION,PINCH
731-0517 1 STICKER, WARNING, BOLT DOWN
731-0518 14 NUT,CLIP,M4 X 0.7,.8-4mmTHK
731-0531 2 WASHER, HAT, M10, 7mm
731-0532 2 SCREW,M8 X 1.25,12MM,HHM,HE, ZP
731-0576-XX 1 WELD,FOOT,ADJUSTABLE
731-0578 1 COVER,FOOT,ADJ.
731-0579 2 SCREW,M8 X1.25,65mm,SHC,HK, ZP
731-0580 4 WASHER, HAT, M8
731-0585 12 WASHER,M4
Number QTY. DESCRIPTION
731-0586 4 SCREW,M4 X 0.7,14MM,BHC,HK, ZP
731-0587 4 NUT, M4X0.7, LOCKING
731-0599 2 PLATE,BLOCK,PULLEY,Ø120mm
731-0827 1 STICKER,IN_ST,REVERSE
731-0922 4 NUT, M8X1.25, JAM
731-0967 1 WEIGHT, TOP PLATE, ADD-ON, 16LBS
731-1043 4 SCREW, M10X1.5, 75MM, SHC, HK, ZP
731-1363 2 NUT, M6X1.0, NYLOC
731-1451 4 Double Sided Adhesive Tape
731-1778 2 SCREW,M10 X 1.5,55MM,BHC, HK, ZP
731-1808-XX 1 MOUNT,AXLE,ROD,GLUTE
731-1809 2 GUIDE ROD,FOOT,GLUTE
731-1811-XX 1 MOUNT,BEARINGS,FOOT,GLUTE
731-1812-XX 1 WELD,FOOT,GLUTE,
731-1813 4 BEARING,LINEAR,Ø25MM,40 X 58
731-1814-XX 2 TUBE,BEARING,GLUTE,FOOT
731-1817 1 STICKER,NUMBER,GLUTE
731-1825-XX 1 WELD,HANDLE,FOOT,GLUTE
731-1832-XX 1 WELD,LINKAGE 2B,GLUTE
731-1835 2 SPACER,Ø15 OD X 9MM
731-1841 1 STICKER,GLUTE PRESS,HOW TO
731-1846-XX 1 WELD,HANDLE BAR,GLUTE
731-1848-XX-KT 2 KIT, WELD,HANDLEBAR,GLUTE PRESS
731-1850 2 BUMPER,STOP,FOOT,GLUTE
731-1851 1 CAP,HANDLE,FOOT,GLUTE
731-1852 2 SCREW,M10 X 1.5,30MM,SHCS,HK,ZP
731-1853 1 GRIP,HANDLE,FOOT,GLUTE
731-1863-XX 1 WELD,SLID,FOOT,GLUTE
731-1864 1 BUMPER,FOOT,SLIDE
731-1866 1 PAD,FOOT,GLUTE
731-1867-01-XX 1 PLATE,FOOT MOUNT,GLUTE
731-2351 4 RETAINING,INNER,40MM
731-2647 2 FOOT,LONG,LEVERAGE
731-2931 2 SPACER,15MM ID X 2MM
731-2935-XX 1 WELD,LINKAGE 1,LEFT,GLUTE
731-2936 1 STIFFENER,SPACER
731-3466 1 ASSY,LEV, BIG PIN
731-4319 2 WASHER,M10,HAT,7MM LEN
731-5058 1 NUT,M12 X 1.5,NARROW
731-5439 1 STOP,WEIGHT STACK
731-5725 6 RIVET NUT, HEX HEAD,M8
731-6358 1 PLASTIC, SHROUD,SWITCH COVER
731-6359 4 PLASTIC, SHROUD, EDGE
731-6360 2 PLASTIC,SHROUD,BASE TRIM
731-6361 2 PLASTIC,SHROUD,TOP TRIM,NARROW
731-6362-XX 1 SHROUD, STEEL,INSIDE,NARROW
731-6364-XX 1 SHROUD,STEEL,OUTSIDE,NARROW
731-6384 2 RING,BEAUTY,TOWER
731-6385 1 BADGE,TOWER,PRODUCT NAME
731-6386 1 CAP,TOWER,NARROW
731-6389 2 ASSY,ADD ON,SHORT
731-6421-XX 1 WELD,PULLEY,TOWER,NARROW
731-6440 2 FOOT,TOWER,STANDARD,BOOT
731-6444 4 WASHER,FENDER,M7,ZP
731-6445 2 GUIDE ROD, Ø22MM X 1305MM
731-6477 1 STICKER,WEIGHT,SPLIT,5/10-110KG,10/12,220LB
731-6644 1 MOUNT,BOTTLE HOLDER,FRAME
731-6659 1 ASSY,WATER/PHONE,HOLDER
731-6738 2 SCREW,M4 X 0.7,20MM,BHC,HK,CS,BLACK ZINC
731-6744-XX 1 WELD,WGT TOWER,NARROW
731-6745-XX 1 Glute Machine Crossmember
731-6772 2 COVER, MOLDED, TOWER CROSSMEMBER
731-6781-XX 1 CABLE BRACKET,SLIDE,GLUTE.
731-6794 1 GAS SPRING & BALL JOINT, GLUTE.
731-6800-XX 1 WELD,PULLEY MOUNT,ONE FIXED
731-6803 1 ASSY,CABLE,LOWER,GLUTE
731-6806 1 ASSY,CABLE,UPPER,IPGM2
731-6902 6 NUT,M6,CLIP-ON,U
731-6956 1 PLATE,WEAR,FOOT,GLUTE
731-6960-XX 1 WELD,LINKAGE,ARM,RIGHT,1
731-7066 1 CAP, INSIDE, GRIP, Ø35MM
731-7071-XXX 1 STICKER,PLACARD, IPGM2
731-7096 1 BASE,HANDLE GRIP,ARMS,35MM,V2
91-999 1 Paint (1.5 lbs)
91-999-STAR 1 Paint (1.5 lbs)
95-0740 1 ASSY,STOP,ADD ON
OPT-WT-38 1 ASSY,WGT STK,130kG,V2
07-8725 1 Adapter Sleeve, 17mm to 15mm
Red: PAINTED ITEMS
Blue: KITS
ASSY,GLUTE PRESS
IPGM2
REV N
