Page 1: Assembly Manual

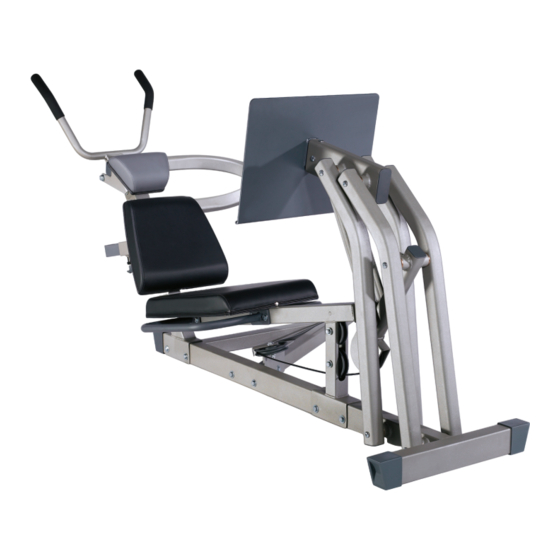

Be Strong. ™ NS 75X Assembly Manual Model: NS 75X P/N: 001-7006 Rev A (10/04/2006) -
Page 2: Table Of Contents
TABLE OF CONTENTS Before You Assemble ... 3 Product Specifications ... 4 Product Features ... 4 Parts List / Box Contents ... 5 Exploded View ... 6 Hardware and Tool List ... 7 Assembly Guide ... 8 Warranty Information ... 15 Important Contact Numbers ... -
Page 3: Before You Assemble
BaSic aSSeMBly PriNciPleS Here are a few basic tips that will aid in the assembly of the Nautilus® NS75X. By using these principles, you can simplify each process and save yourself extra time and effort. 1. To make the assembly process go faster, gather the pieces you need for each step and thoroughly read the assembly instructions for that step prior to starting assembly for the step. -
Page 4: Product Specifications
NOTE: All instructions in the manual are given with the orientation of sitting on the machine ready to exercise. user Weight Capacity: dimensions: Shipping Weight: Net Weight: PrOduCT SPECIFICATIONS 300lbs / 136.1Kg 56”w x 76”l x 46”h / 142 cm x 193 cm x 117 cm 207 lbs / 93.9 kg 185 lbs / 83.9 kg... -
Page 5: Parts List / Box Contents
39 1” x 1/2” Flat Washer ... 6 40 3/8” Flat Washer ... 60 41 Shim Washer ... 1 42 1/2” Lock Nut ... 3 43 3/8” Lock Nut ... 30 44 Step Spacer - 5/8”H ... 8 PArTS LIST / BOx CONTENTS Nautilus NS75X... -
Page 6: Exploded View
ExPLOdEd VIEW • Compare the Bill of Materials to the box contents to insure that all parts are present before installation begins. -
Page 7: Hardware And Tool List
HArdWArE ANd TOOLS NS-75 Nautilus NS75X... -
Page 8: Assembly Guide
NS75X Leg Press attachment can be assembled in a right or left configuration for use on the NS300X ,NS200X, NS600X and NS700X. You may also mount the Ab Crunch arm on either side to most efficiently use space. - Page 9 B. If using a NS200X,NS300X or NS600X attach the Vertical Pulley Bracket (5) to the connecting Tube Assembly (2) using the hardware shown above. c. Tighten all hardware securely. LEG PRESS CABLE REMOVE CABLE BRACKET LEG PRESS CABLE Nautilus NS75X...
- Page 10 STEP 2 3/8" x 3"L Step 2 Components: component Main Base Assembly Seat Tube Assembly Seat Handle Seat Back Support Assembly Hex Bolt - 3/8” x 3 1/4”L Hex Bolt - 3/8” x 3”L Hex Bolt - 3/8” x 2 3/4”L 3/8”...
- Page 11 Intsall short end of Leg Press Power Link (15) up. F. Attach the Foot Plate Assembly (9) to the Leg Press Top Link (8) using the hardware shown above. G. Tighten all hardware securely. 3/8" x 3/4"L w/ THREAD LOCK Nautilus NS75X...
- Page 12 STEP 4 3/8" x 3"L Step 4 Components: component Angled Pulley Bracket Ab Crunch Support Arm Ab Crunch Arm Ab Crunch Handle Ab Crunch Pad Support Round Plastic Cap Hex Bolt - 1/2” x 7”L Hex Bolt - 3/8” x 3”L 1/2”...
- Page 13 (17) using the hardware shown above. Slide the Seat Back Adjuster in to the Seat Back Support Assembly and secure with the Pop Pin. c. Attach the Seat Pad (23) to the Seat Tube Assembly using the hardware shown. 3/8" x 1"L Nautilus NS75X...
- Page 14 STEP 6 3/8" x 1"L 3/8" x 2"L Step 6 Components: component Leg Press Cable w/ Termination 1 3 1/2” Pulley 4 1/2” Pulley Hex Bolt - 3/8” x 2 3/4”L Hex Bolt - 3/8” x 2”L Hex Bolt - 3/8” x 1”L 3/8”...
-
Page 15: Warranty Information
What Is Covered Nautilus Fitness Products warrants to the original purchaser of this Nautilus Home Gym to be free from defects in materials or workmanship, with the exceptions stated below. This warranty is not transferable or applicable to any person other than the original purchaser. -
Page 16: Important Contact Numbers
