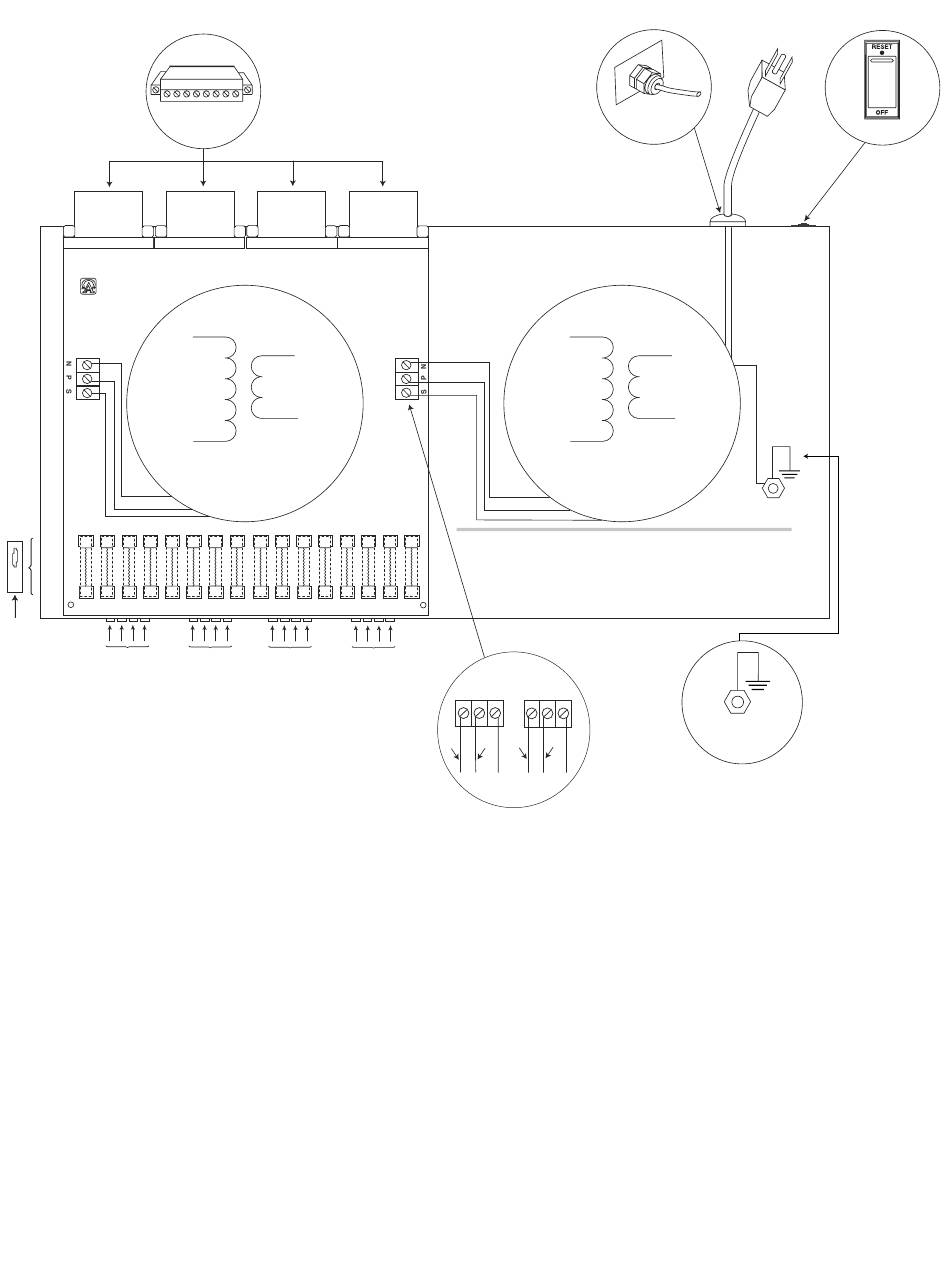

Fig. 1
Fig. 1A
Removable Terminal
ALTRONIX CORP.
BROOKLYN, NY 11220
MADE IN USA
PTC1
Used
on PTC
Models
AC Power
LED's
9. Green power LEDs on faceplate will illuminate when AC power is present. When an output is in
a trouble condition (blown fuse or tripped PTC) the corresponding LED will not be illuminated (Fig. 1, pg. 3).
a. Blown fuse (R2416UL, R2416300UL & R2416600UL) - Set power switch on back of unit to the OFF position
(Fig. 1C, pg. 3).
Remove front faceplate to access fuses. Replace with fuses rated @ 3.5A/250VA (Altronix model # Fuse1).
b. Tripped PTC (R2416ULCB, R2416300ULCB & R2416600ULCB) - To reset PTC, set power switch on back
of unit to the OFF position. After approximately 30 secs. set power switch to the ON (RESET) position
(Fig. 1D, pg. 3).
10. Power switch with built-in circuit breaker:
OFF position - Switch not Illuminated. Outputs not powered.
RESET (ON) position - Switch illuminated. Outputs powered.
Circuit breaker tripped - Switch not Illuminated. Power LEDs on faceplate are not illuminated.
Outputs not powered.
To reset circuit breaker set power switch to the ON (RESET) position (Fig. 1D, pg. 3).
Note: Do not exceed units electrical load ratings as indicated in reference chart ( pg. 2).
Do not place mechanical load on unit.
Unit is designed optimally for normal data room office installations. Data racks should always
be properly ventilated.
Block
XFMR*
AC Power
AC Power
AC Power
LED's
LED's
LED's
28VAC
24VAC
Hook Up
Hook Up
S
P N
S
P N
28
24
24
28
Fig. 1D
- 3 -
Fig. 1B
Strain Relief
Line Cord
XFMR*
Divider
(Green Wire
Earth GND)
Fig. 1E
Fig. 1C
Power Switch
