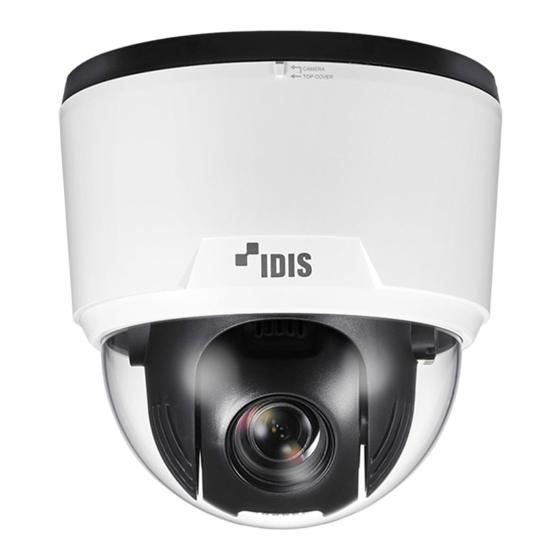

- Page 1 Network Camera Installation Manual DC-S6261X DC-S6261X-A Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Two-way audio communication support for remote Ethernet. DC-S6261X model only audio dialog You can use the IDIS Discovery program to change • Video stream buffering to counter pre-/post-event network camera settings or the IDIS Solution Suite buffering and network delays for improved network... - Page 7 Remote monitoring and recording via multi streaming • Day & Night feature (built-in IR cut filter changer) are available using the IDIS Solution Suite Compact • Quick and easy firmware upgrade over the network program. For more information on using IDIS Solution Suite Compact, refer to its operation manual.
-
Page 8: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. Network Camera Terminal Blocks (2 ea.) Install Mount Ferrite Core Quick Guide Screws and Anchors (each 3 ea.) Guide Pattern... -
Page 9: Overview
Part 1 – Introduction Overview Body Dome Cover Lens SD Memory Card Slot Dome Cover Assembly Part Factory Reset Button Network Port Power Alarm I/O, Audio I/O • Lens AF zoom lens is mounted. - Page 10 - I (In): Connect an alarm-in device to this port. For more information on network connection setup, (Mechanism: Choose between an NC (Normally refer to the IDIS Discovery operation manual. Closed) type or an NO (Normally Open) type) → Connect a mechanical or electrical switch to the The table below shows the network cable alarm in port and the GND (ground) connector.
-
Page 11: Factory Reset
It's also possible to do a factory reset by pressing and releasing the reset button while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system. For more... -
Page 12: Removing The Dome Cover
Part 1 – Introduction Removing the Dome Cover Closing the Dome Cover Remove the dome cover. Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. Inserting a SD Memory Card Remove the protective film inside and outside. Insert a SD memory card into the SD memory card slot with the 'micro SD' print facing upward. - Page 13 Part 1 – Introduction Use the provided guide pattern to check the distance between the screws. Hook the safety wire of the install mount on the safety wire ring of the camera body. Connect the network cable and the power adapter. Push and rotate it counterclockwise when disassembling the product.
-
Page 14: Dimension
Part 1 – Introduction Dimension 3-Ø4.5mm 3-120... -
Page 15: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out... -
Page 16: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 17: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 18: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8" CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type AF Zoom Lens Focal Length f=5.3 mm ~ 64 mm Aperture F=1.6 ~ 2.8 Iris Control DC Auto Iris... - Page 19 Part 3 - Appendix Network Video Compression H.265, H.264(MP), M-JPEG Bit rate Control CBR / VBR Max. Frame Rate 30ips : 1920 x 1080(WDR) Audio Compression DC-S6261X model G.726, ADPCM-16K, G.711u-Law, G.711a-Law only Supported Resolution 1920x1080, 1280x720, 640x360, 352x240 Multi-Video Streaming Quadruple Ethernet RJ45(10/100BASE-T)
- Page 20 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
