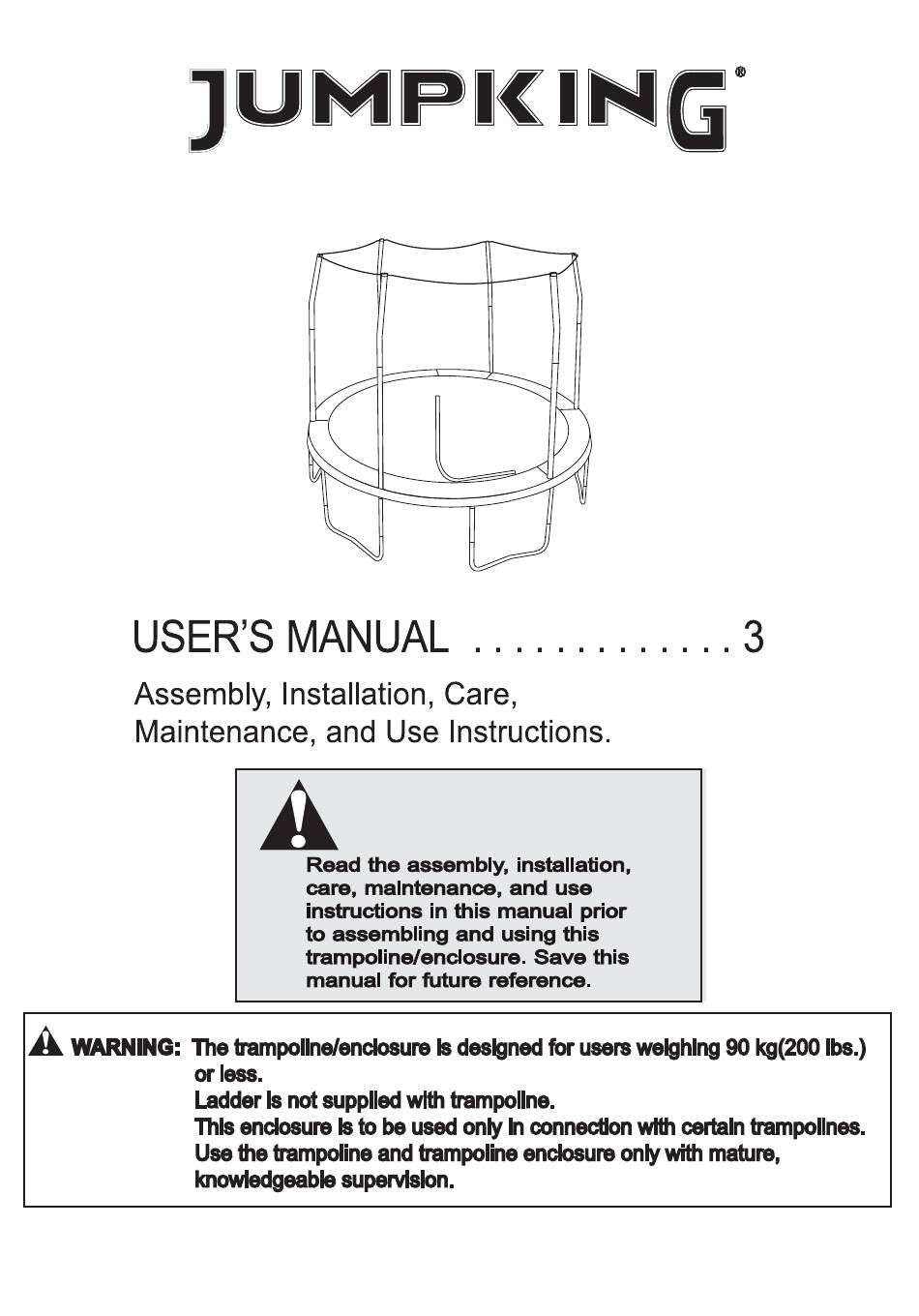

- Page 1 12FT / 3.66M TRAMPOLINE AND ENCLOSURE Model: JK1204C1 WARNING YJ USA Corp., 3970 Lindbergh Drive Adison, TX 75001 www.jumpking.com 1-877-927-8777...
- Page 3 12FT / 3.66M TRAMPOLINE AND ENCLOSURE Model: JK1204C1 www.jumpking.com...
- Page 4 1. The owner and supervisors of the trampoline 13. Do not allow more than one person on the trampoline are responsible to make sure all the users are and inside the trampoline enclosure. Use by more than aware of practices specified in this manual. one person at the same time can result in serious injuries.
- Page 5 25. Do not attach anything to the barrier that is not a 35. While keeping the head erect, focus eyes on the trampoline manufacturer approved accessory or part of the toward the perimeter. This will help control bounce. enclosure system. 36.
- Page 6 Note: The...
- Page 11 sharply spot.
- Page 15 1.1 Start assembling the 6 sections by : Connecting toprail Key #1 to toprail Key #2. 1.1. Once complete, there will be a total of 6 sections as shown in the diagram. 1.2 Once you have all 6 toprail sections assembled and laid out in rows: Start by connecting the leg extension into the T-connector.
- Page 16 3. Lay the Bed (5) on the ground inside of the assembled frame. Make sure that the two warn- ing decals (not shown) are on top of the Bed. Frame V-rings Note: There are V-rings around the edge of the Bed (7) and holes around the top of the frame.
- Page 17 4. Lay the Frame Pad (8) on the frame. Do not use the trampoline without the Frame Pad (8), which is designed to reduce the likelihood of injury to the user from coming in con- tact with the trampoline frame. If you do not have a Frame Pad, call our Customer Hot Line toll-free at 877-927-8777, Monday-Friday,8 a.m.
-
Page 18: Straight Tube
6. The trampoline is now fully assembled. Make sure that all parts are securely attached. Familiarize yourself and all users of the tram- poline with the safety precautions, use and instructional materials, and care and mainte- nance instructions in this manual before using the trampoline. - Page 19 9. Spread the Netting (15) on the trampoline bed. 12. Attach the first hanging point at the upper edge of the Hanging Point4 Hanging Point5 Netting (15) with the rod to the Plastic Cap (14) Hanging Point2 Hanging Point1 of Top Tube(13). Attach a second hanging point directly Hanging Point3 across the Netting (15) from the first hanging point.
- Page 20 13.Note: During steps 13 and 14, you will “sew”the lower edge of the Netting(15) to the V-rings on the bed using the Cords(18). Locate the V-ring closest to the door. Thread one end of a Cord(18)through the lower edge of the Netting(15)above the V-ring and then thread the Cord through the V-ring.
- Page 21 Stake It is possible for the trampoline/enclosure be blown about by high wind. If you anticipate high winds, the trampoline/enclosure should be moved to a sheltered location, disassembled, or tied down to the ground with ropes and stakes (not included). At least three ropes and three stakes should be used.
- Page 22 Top Tube(With T-connector) Straight Tube Top Tube(With T-connector+Welded tube) Top Tube T-connector Plastic Cap (This part has been atatched to the T-connector+Welded tube top of the Top tube(13).) Leg Extension Netting with attached Hardware W leg Foam Sleeve Stitched Bed with V-ring Spring Pulling Tool Frame pad Ropes...
- Page 23 JK1204C1 Trampoline Assembly: Parts Lis ng Key No. Descrip on Picture Part SKU No. TOP RAIL FOR T-CONNECTOR (5 HOLES) JK12-TR5 TOP RAIL FOR T-CONNECTOR WITH SLOT (5 HOLES) JK12-TR5 T-CONNECTOR JK12-TC T-CONNECTOR WITH SLOT JK12-TCWS LEG EXTENSION JK12-LE W LEG...
- Page 24 JK1204C1 Enclosure Assembly: Parts Lis ng Key No. Descrip on Picture Part SKU No. SELF-TAPPING SCREW HWSTS ENCLOSURE STRAIGHT POLE JK12-ESP ENCLOSURE CURVE POLE JK12-ECP ENCLOSURE POLE CAP JK12-EPCAP 12' NETTING WITH SHORT G4 POLE FOR NET12-SP6 6 POLES Door of Netting...
