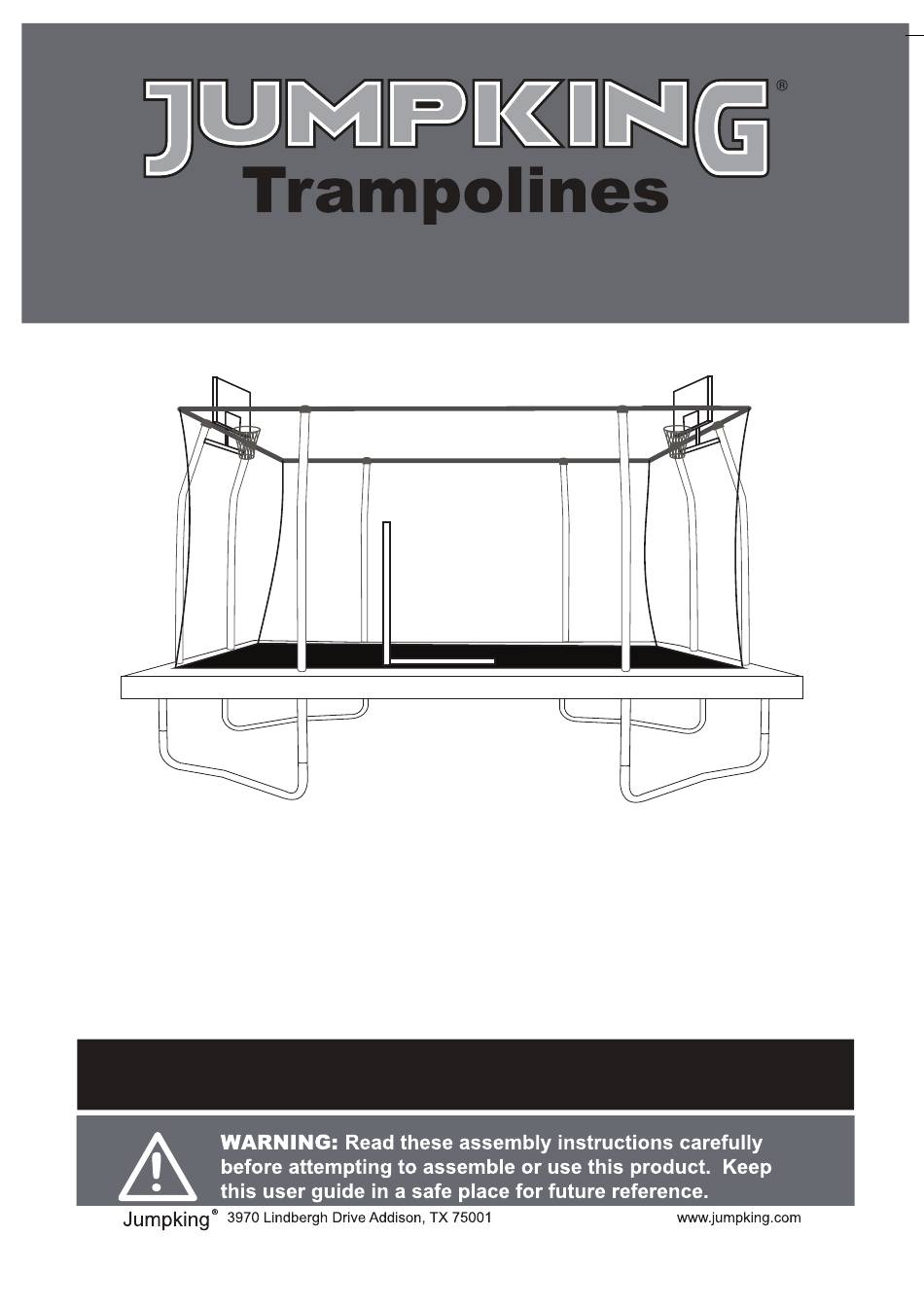

- Page 1 User Guide 10ft x 15ft Rectangle Trampoline & Enclosure Model: JK1015RCBHC2 The trampoline / enclosure is designed for users weighing 100 kg (220 lbs) or less. Got a Problem building your trampoline? Please contact us at contact@jumpking.com...
-
Page 17: Parts List
PARTS LIST Part Part Part Part Part Description: Description: Description: Top Tube Description: Description: Top tube Top tube (Curved) Top tube L-Top tube (E marking) (B marking) (D marking) (C marking) (A marking) Part#TR1015E-508RC104 Part#TR1015A-508RC104 Part#TR1015B-508RC104 Part#TR1015C-508RC104 Part#TR1015D-508RC104 Quantity: 2 Quantity: 2 Quantity: 2 Quantity: 2... - Page 18 Part Part Part Part Part Description: Description: Support Connector Foam Sleeve (Support connector already Description: Description: (Already pre-assembled on Description: pre-assembled on part# A, C, E, Basketball Net part# N, O, P, Q, R) Breakaway Rim Basketball hoop Part#SC50 Part#FSBLK44 Part#ACC-1015HBAS Quantity: Part#ACC-1015HBAS...
-
Page 19: Step 1 : Assembling The Frame
STEP 1 : ASSEMBLING THE FRAME You will need the following parts to complete section 1a: L-Top tube 2 x L-Top tube - Part A A marking - Part B - Part C - Part D Top tube B marking - Part E 2 x L-Top tube - Part F Top tube C marking... - Page 20 Insert the Center leg and L leg into upright tube ton T-connector + welded tube. Note: You may need to tap the leg extension in using a rubber mallet or by placing a piece of wood over the top of the tube. Do not use a metal hammer on the metal tube as this may distort the end of tube.
- Page 21 STEP 2 : ASSEMBLING THE FRAME This step will require 2 people who must be wearing gloves. Slot two of the frame section together as shown in the diagram. You will now need to slot the frame together, this will take some force. The easiest method is if the two people face each other.
- Page 22 STEP 3 : FITTING THE STITCHED BED This step will require 2 people who must be wearing gloves and protective eye wear. Lay the stitched bed (with the V-Rings) out inside the frame of the trampoline with the warning labels facing upwards.
- Page 23 Attach a spring to the diagonal webbing V-Ring. Important: You will now need to use the spring tool (Part Z) to attach the spring to the frame. Hook the spring tool onto end of spring, and pull until the spring can be slotted into the spring slot on the top of the frame.
- Page 24 STEP 4 : FITTING THE FRAME PAD This step will require 2 people. Lay the frame pad - Part M out over the edge of the frame with the ties facing downwards. Align the openings in the frame pad with the T-connector+welded tube’s on the frame.
- Page 25 You will need the following parts to complete step 5: 8 x Bottom enclosure tubes - Part N 4 x Top enclosure bent tubes - Part O 4 x Top enclosure tubes for Basketball hoop (Left side 2 pcs & right side 2 pcs - Part P 4 x Middle enclosure tubes for Basketball hoop - Part Q Middle Enclosure pole for Basketball 2 x Hotizontal tubes for Basketball hoop - Part R...
- Page 26 1) Insert the screws Part AJ into holes of Breakaway Rim Part AH. 2) Then insert the screws through the basketball board Part AG. 3) Using wrench to tighten the nuts on back of board.(Wrench not provided) Part AG Part AH Part AI...
- Page 27 Note: Attach the basketball net Part AI with large mesher to the rim. Part AI Part AH...
- Page 28 Self tapping screw(Part V)
- Page 29 hori-...
- Page 34 USING THE TRAMPOLINE Before using your trampoline, check again that there is enough clearance around it. Maintain a clear space of 2.5 metres (8.2 feet) on all sides of the trampoline. Also check that the area is free from walls, structures, fences, tarmac and other hard surfaces 2.5m and other play areas.
- Page 35 100 kg (220 lbs)
- Page 36 Support T-Connector+Welded tube Connector 7 ft x 10 ft Rectangle Trampoline & Enclosure Basketball hoop L-Top tube A Black G3 poles Top tube B Enclosure netting Top tube C Self tapping screws Top tube (curved) D Set of 8mm x 40mm nut and bolt Top tube E for basketball hoop L-Top tube F...
