User Guide

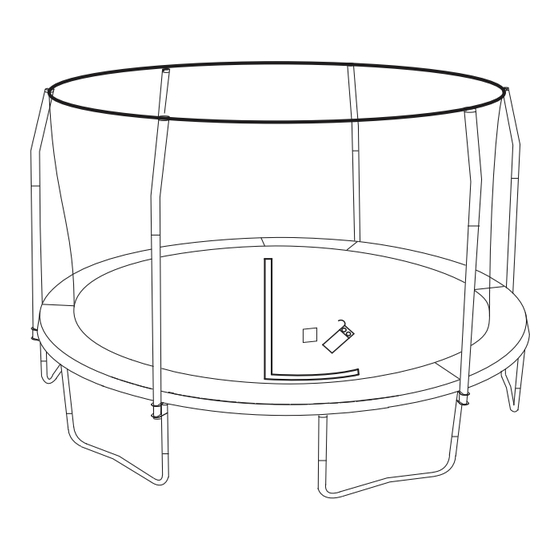

15ft Enclosure System
Model: JK15E6
The trampoline / enclosure is designed for users weighing 90kg (200lbs) or less.
Got a Problem building your trampoline?
Please contact us at contact@jumpking.com
WARNING: Read these assembly instructions carefully
before attempting to assemble or use this product. Keep
this user guide in a safe place for future reference.
Jumpking
3970 Lindbergh Drive Addison, TX 75001
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the JK15E6 and is the answer not in the manual?

Questions and answers

Related Manuals for Jumpking JK15E6

Summary of Contents for Jumpking JK15E6

  • Page 1 Model: JK15E6 The trampoline / enclosure is designed for users weighing 90kg (200lbs) or less. Got a Problem building your trampoline? Please contact us at contact@jumpking.com WARNING: Read these assembly instructions carefully before attempting to assemble or use this product. Keep this user guide in a safe place for future reference.

  • Page 3: Table Of Contents

    If you have questions after 15ft Enclosure System reading this manual, please email us at contact@jumpking.com. The Model: JK15E6 trained technicians will provide immediate assistance. CONTENTS IMPORTANT PRECAUTIONS ......4 WARNING PLACARD PLACEMENT .

  • Page 4: Important Precautions

    To reduce the risk of serious injury,read and follow all warnings,precau- tions,and instructions in this manual before assembling and using the trampoline. 1. The owner and supervisors of the trampoline 12. Use the trampoline only with mature, knowl- are responsible to make sure all the users are edgeable supervision.

  • Page 5: Warning Placard Placement

    (see assembly step 9 on page 12). If the placard is missing or illegible, visit our website at contact@jumpking.com to order a free replacement placard. Note: The placard is not shown actual size.

  • Page 6: Before You Begin

    Thank you for selecting a Bazoongi If you have questions after reading this manual, trampoline enclosure. The enclosure, when please email us at contact@jumpking.com. combined with a properly placed and maintained To help us assist you, please mention the name of trampoline, will p rovide many years of backyard fun.
  • Page 7 Hazards Associated with High Winds This trampoline enclosure is not recommended for use by children under 6 years of age or by anyone A trampoline with an enclosure can be moved or weighing more than 90 kg (200 lbs.). blown over by high winds, potentially injuring anyone in its path or anyone inside of the enclosure.

  • Page 8: Assembly

    ASSEMBLY IMPORTANT ASSEMBLY INFORMATION TRAMPOLINE PLACEMENT • Assembly requires a 8/16” socket and ratchet (or 1. Place the trampoline and enclosure on a level a 8/16” open-end wrench) and a Philips screw- surface before use. driver (not included). 2. Adequate overhead clearance is essential. A •...
  • Page 9 2. Lay a Enclosure bottom tube(6) and a Enclosure top tube(7) with Plastic Cap on the ground. Make sure that the Enclosure bottom tube(6) is oriented so the small holes are in the position shown. Slide a Foam Sleeve (11) onto each of the tubes; note that the ends of the Enclosure bottom tube(6) Small Hole should not be covered.
  • Page 10 Lay out Top G3 Pole (8),joint each section Connector to a straight line as shown. 6 Sections Per Line Top G3 Pole (8) Assemble the remaining Top G3 Pole (8) in the same way. Spread out G3 Pole and Joint each section to one straight line.
  • Page 11 See insert drawing for attached of G3 Pole (8): Attached Hanging Point : Plastic Cap (9) has been attached to the top of the G3 Pole (8) Enclosure top tube(7). Plastic Cap Top Tube 7. Note: During steps 7 and 8, you will “sew”the lower edge of the Netting(10) to the V-rings on the Door bed using the Cords(12).
  • Page 12 Using the included plastic tie,attach the Safety Placard(14)to the Netting(10)near the door as shown. The trampoline/enclosure is now fully assembled. Make sure that all parts are securely attached. Familiarize yourself and all users of the trampo- line/enclosure with the safety precautions, use and instructional materials, and care and mainten- ance instructions in this manual before using.

  • Page 13: Care And Maintenance

    U-bolts...

  • Page 14: Exploded Drawing And Part List

    EXPLODED DRAWING AND PART LIST Qty. Description Qty. Description G3 Pole Lock Nut Plastic Cap (This part has been attached U-Bolt Bracket to the top of the Top Tube (7).) U-Bolt Netting with attached Hardward Wedge Foam Sleeve Self-tapping Screw Cord Enclosure bottom tube U-Bolt Plastic Cap...
