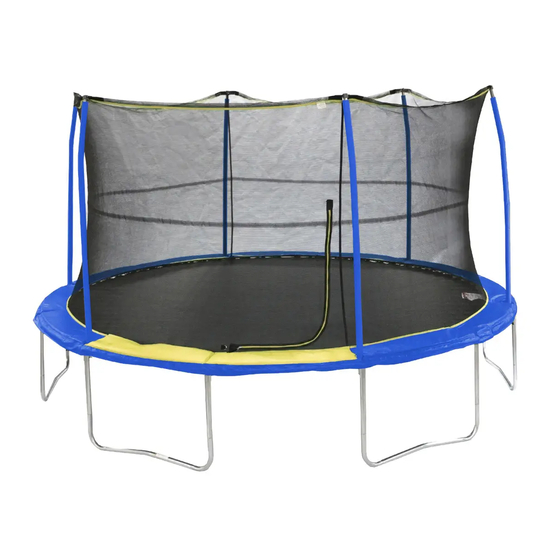

14ft Tr ampoline & Enclosure
Model: JK146PBY
The trampoline / enclosure is designed for users weighing 90kg (200lbs) or less.
Got a Problem building your trampoline?
Call us on 1-877-927-8777 8am - 5pm CT Monday to Friday and we can help
WARNING: Read these assembly instructions carefully
before attempting to assemble or use this product. Keep
this user guide in a safe place for future reference.
®
Jumpking
1-877-927-8777
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jumpking JK146PBY
Summary of Contents for Jumpking JK146PBY
- Page 1 User Guide 14ft Tr ampoline & Enclosure Model: JK146PBY The trampoline / enclosure is designed for users weighing 90kg (200lbs) or less. Got a Problem building your trampoline? Call us on 1-877-927-8777 8am - 5pm CT Monday to Friday and we can help WARNING: Read these assembly instructions carefully before attempting to assemble or use this product.
- Page 3 14FT / 4.27 M TRAMPOLINE AND ENCLOSURE MODEL: JK146PBY...
- Page 4 1. Trained Spotter supervision is recommended. 2. Must place the trampoline on lawn, bark wood chip, sand or cushioning materials. 3. Maintain a free space of minimum 2500mm on all sides of the trampoline. This area should not included concrete, bitumen, brick, or other hard surfaces as these can cause serious injuries. 4.
- Page 5 24. Learn fundamental bounces and body positions thoroughly before trying more advanced skills. A variety of trampoline activities can be carried out by performing the basic fundamentals in various series and combinations, performing one fundamental after another, with or without feet bounces between them. 25.
- Page 6 WARNING Do not attempt or allow Do not allow more than one person somersaults. Serious injuries, on the trampoline at a time. paralysis, or death may result. To reduce the chance of landing on your head or neck, do not do somersaults(flips). Use trampoline only with mature, knowledgeable supervision.
- Page 7 Thank you for selecting a Jumpking trampoline / enclosure. “Jumpking” is designed and crafted to provide many years of fun and fitness. This trampoline/enclosure comes equipped with warnings and instructions for the assembly, care, maintenance and use of the trampoline/enclosure. This information must be...
-
Page 15: What You Will Need
BUILDING YOUR TRAMPOLINE 1. This is a 2 person build. 2. Time for build is approximately 2 hours. 3. Choose a good location: (wood chippings, sand or grass). (7.3m) from ground level, away from wires, trees and other possible hazards. (2.5m) around sides, away from walls, fences, structures, roads and other hard surfaces and play areas. -
Page 16: Parts List
PARTS LIST Part Part Part Part Description: Description: Description: Description: Top Tube with Top Tube with Leg extensions Leg Centers T-Connector A T-Connector B Quantity: 12 Quantity: 6 Quantity: 6 Quantity: 6 Part Part Part Part Description: Description: Description: Description: Stitched bed Springs Spring tool... -
Page 17: Step 1 : Assembling The Frame
STEP 1 : ASSEMBLING THE FRAME Top tube You will need the following parts to complete section 1: Top tube 6 x Top Tubes with T-connector A - Part A 6 x Top Tubes with T-connector B - Part B 12 x Leg extensions - Part C Leg center... - Page 18 Important: The frame is held together under tension so you will have to use some force to insert certain parts. Place your feet on the top tubes and grip the leg extension with both hands. Pull the extension until it can be slotted into the T-connection (1 Slot the end of leg extension into the T-connection Push down on the end of the leg center to fully...
- Page 19 STEP 2 : ASSEMBLING THE FRAME This step will require 2 people who must be wearing gloves. Slot two of the frame section together as shown in the diagram. Whilst one person holds the assembled sections upright, the other person can slot a third section onto the end of the assembled sections.
- Page 20 STEP 3 : FITTING THE STITCHED BED This step will require 2 people who must be wearing gloves and protective eye wear. Lay the stitched bed (with the V-Rings) part E out inside the frame of the trampoline with the warning labels facing upwards.
- Page 21 Attach a spring to the opposite colored webbing V-Ring. Important: You will now need to use the spring tool part G to attach the spring to the frame. Hook the spring tool onto end of spring, and pull until the spring can be slotted into the spring slot on the top of the frame.
- Page 22 STEP 4 : FITTING THE FRAME PAD This step will require 2 people. Lay the frame pad - Part H out over the edge of the frame with the ties facing downwards. Align the openings in the frame pad with the T-connector B's on the frame.
- Page 23 STEP 5 : FITTING THE ENCLOSURE TUBES Top enclosure tube You will need the following parts to complete step 5: 6 x Top enclosure tubes - Part I Bottom enclosure tube 6 x Bottom enclosure tubes - Part J 6 x Hemisphere caps - Part N Self tapping screw and washer You will also need a cross-head screwdriver (not supplied).
- Page 24 Then place the Hemisphere cap Part N onto the top enclosure pole Part I. Slot the bottom enclosure tube into the tubes in the T-connector B tubes visible through the slots in the frame pad. Assemble the five remaining enclosure tubes using the five self tapping screws and the cross-head screwdriver.
- Page 25 STEP 6 : FITTING THE ENCLOSURE NETTING You will need the following parts to complete step 6: Enclosure 1 x Enclosure netting - Part L netting Lay the enclosure netting out on the trampoline. Find the ROD on top of enclosure netting. Stand on the trampoline and insert one of the exposed sections of the rod into a plastic grip on top of one of the enclosure tubes.
- Page 26 Attach the three other exposed sections of the rods to the other enclosure tubes in the order shown in the diagram. completed step 6.
- Page 27 STEP 7 : ATTACHING THE BOTTOM OF THE NET You will need the following parts to complete step 7: 8 x Cords - Part M. Tie the non-plastic end of the cord around a V-Ring. Push the red plastic end through a hole in the bottom of the netting.
- Page 28 USING THE TRAMPOLINE 2.5m Before using your trampoline, check again that 8.2ft there is enough clearance around it. Maintain a clear space of 2.5 metres (8.2 feet) on all sides of the trampoline. Also check that the area is free from walls, structures, fences, tarmac and other hard surfaces and other play areas.
- Page 29 17 to 27...
- Page 30 (Extra 2 pcs for spare use)
