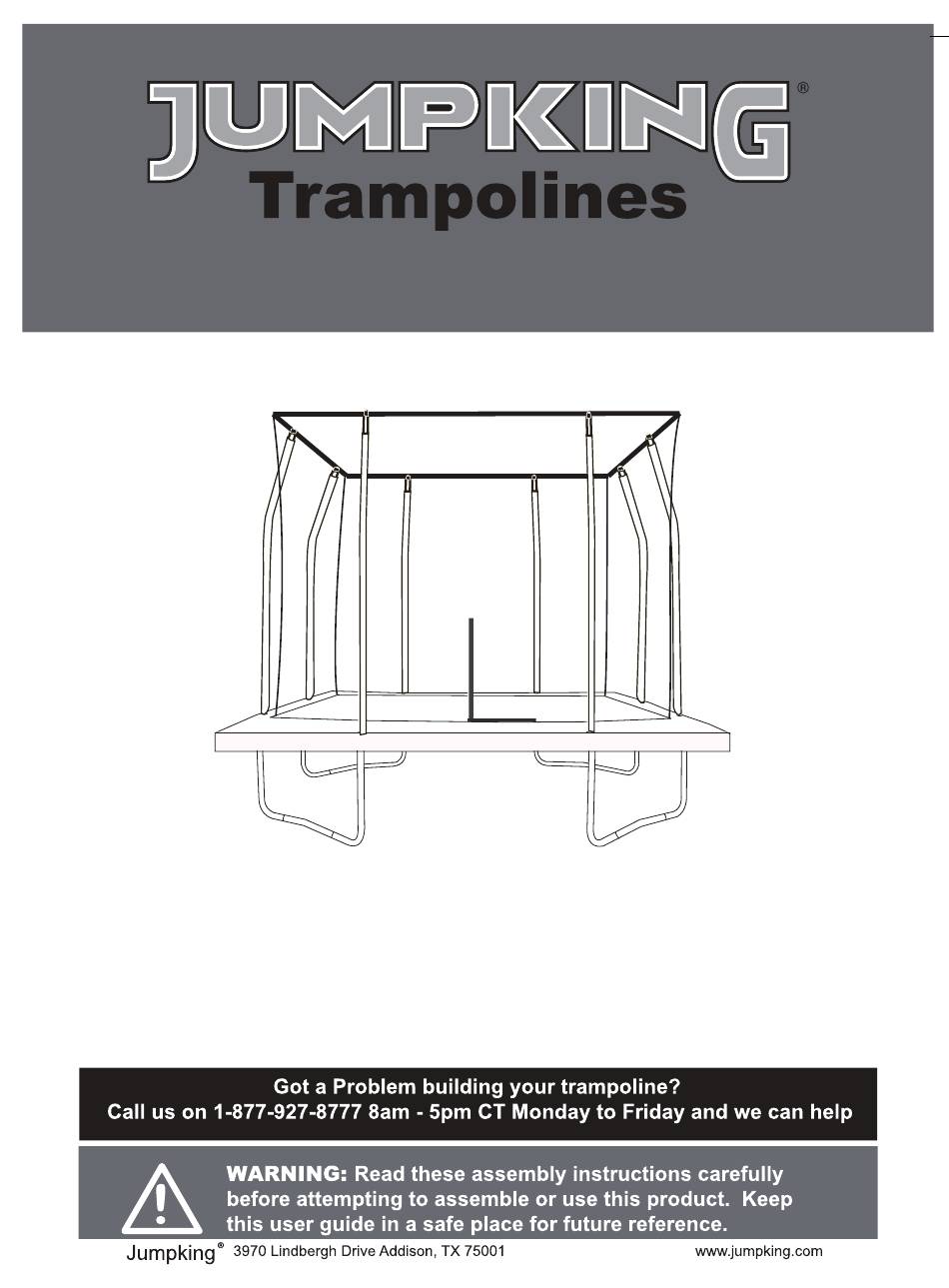

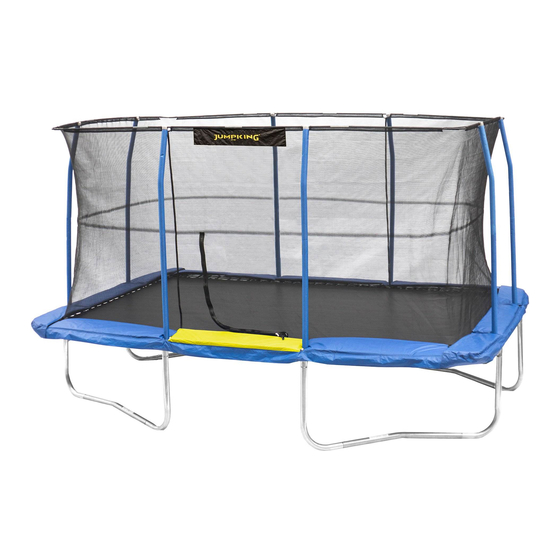

- Page 1 User Guide 12ft x 17ft Rectangle Trampoline & Enclosure Model: JKRC1217C319 The trampoline / enclosure is designed for users weighing 100 kg (220 lbs) or less.
- Page 3 12 ft x 17 ft Rectangle Trampoline & Enclosure...
- Page 4 2. Must place the trampoline on lawn, bark wood chip, sand or cushioning materials. 3. Maintain a free space of minimum 2500mm on all sides of the trampoline. This area should not included concrete, bitumen, brick, or other hard surfaces as these can cause serious injuries. recommended.
- Page 5 WARNING ADVERTENCIA No intente o permita volteretas. Aterrizando en la cabeza o cuello puede causar lesiones graves, parálisis, o muerte, incluso aterrizando al centro del trampolín. Do not attempt or allow Do not allow more than one person somersaults. Serious injuries, on the trampoline at a time.
- Page 10 100 kg (220 lbs).
-
Page 16: Parts List
PARTS LIST Part Part Part Part Part Description: Description: Description: Description: Description: Top tube with Top tube with L-Top tube with Top Tube L-Top tube with T-connector + T-connector + T-Connector + T-Connector + (Curved) welded tube welded tube welded tube welded tube Quantity: 2 Quantity: 2... -
Page 17: Step 1 : Assembling The Frame
STEP 1 : ASSEMBLING THE FRAME You will need the following parts to complete section 1a: L-Top tube 2 x L-Top tube with Welded connector - Part A A marking - Part B be with welded tube - Part C Top tube B marking - Part D be with welded tube... - Page 18 Push down on the end of the centre leg to fully inset the leg extension into the T-connector+Welded tube. We will complete the two sections of the trampoline frame. Slot the narrow end of the top tube with T-connector+Welded tube. Repeat the last two steps until you have assembled the remaining sections of the trampolines frame.
- Page 19 STEP 2 : ASSEMBLING THE FRAME This step will require 2 people who must be wearing gloves. Slot two of the frame section together as shown in the diagram. You will now need to slot the frame together, this will take some force. The easiest method is if the two people face each other.
- Page 20 STEP 3 : FITTING THE STITCHED BED This step will require 2 people who must be wearing gloves and protective eye wear. Lay the stitched bed (with the V-Rings) out inside the frame of the trampoline with the warning labels facing upwards.
- Page 21 Attach a spring to the diagonal colored stitched V-Ring. Important: You will now need to use the spring tool to attach the spring to the frame. Hook the spring tool onto end of spring, and pull until the spring can be slotted into the spring slot on the top of the frame.
- Page 22 STEP 4 : FITTING THE FRAME PAD This step will require 2 people. Lay the frame pad - Part L out over the edge of the frame with the ties facing downwards. Align the openings in the frame pad with the T-connector+welded tube’s on the frame.
- Page 23 You will need the following parts to complete step 5: - Part M 8 x Bottom enclosure tubes - Part N 8 x Top enclosure tubes 8 x Self tapping screws - Part Q You will also need a cross-head screwdriver (not supplied).
- Page 24 Slot the bottom enclosure tube into the tubes in the T-connector+welded tubes visible through the slots in the frame pad. Assemble the seven enclosure tubes using the three self tapping screws and the cross-head screwdriver. Slot the eight enclosure tubes into the T -connector+welded tube's on the frame.
- Page 25 Black G3 poles - Part P 4 x Black G3 poles - Part O Find the sleeves that run along the top of the enclosure netting. Slot the thin sections on the two black G3 poles into the metal ends so the poles become two long sections.
- Page 26 You will now join the two ends of the Black G3 will require two people. Both people hold two of the poles end sections and walk towards each other to bend the poles into a circle. As soon as the poles are bent enough, insert the connectors into the socket on the other pole (1 Push the pin inwards (2 connector.
- Page 28 USING THE TRAMPOLINE Before using your trampoline, check again that there is enough clearance around it. Maintain a clear space of 2.5 metres (8.2 feet) on all sides of the trampoline. Also check that the area is free from walls, structures, fences, tarmac and other hard surfaces 2.5m and other play areas.
- Page 29 100 kg (220 lbs)
- Page 30 7 ft x 10 ft Rectangle Trampoline & Enclosure L-top tube Bottom enclosure poles with T-connector+welded tube Top tube Top enclosure poles with T-connector+welded tube Plastic cap Top tube (Curved) (have been attached to the Top enclosure poles 14) Top tube with T-connector+welded tube Foam sleeve L-top tube...
