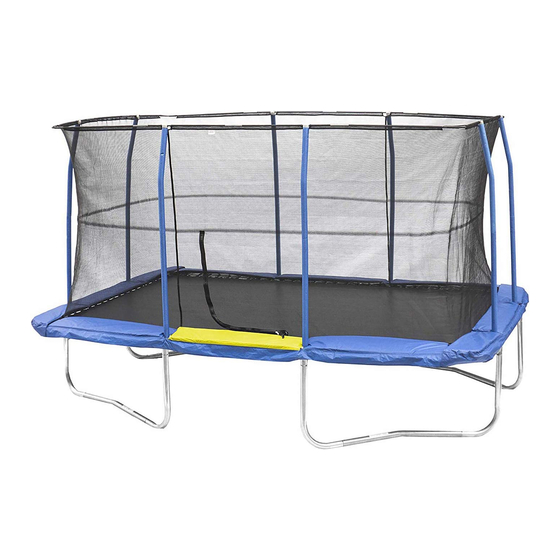

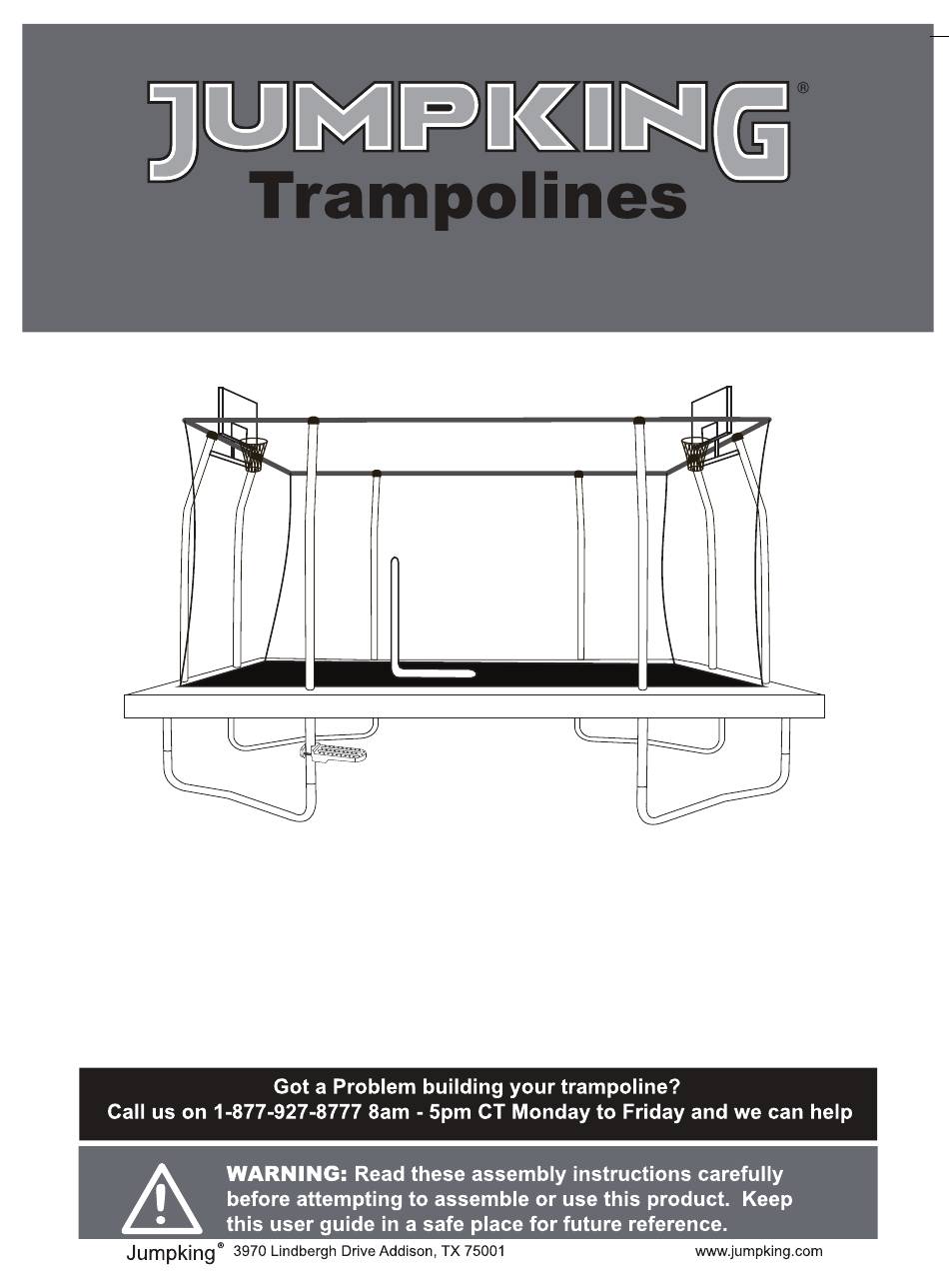

- Page 1 User Guide 10ft x 15ft Rectangle Trampoline & Enclosure Model: JK1015RCBHFTCT The trampoline / enclosure is designed for users weighing 100 kg (220 lbs) or less.
- Page 3 10 ft x 15 ft Rectangle Trampoline & Enclosure...
- Page 4 2. Must place the trampoline on lawn, bark wood chip, sand or cushioning materials. 3. Maintain a free space of minimum 2500mm on all sides of the trampoline. This area should not included concrete, bitumen, brick, or other hard surfaces as these can cause serious injuries. recommended.
- Page 5 24. Learn fundamental bounces and body posi ons thoroughly before trying more advanced skills. A variety of trampoline ac vi es can be carried out by performing the basic fundamentals in various series and combina ons, performing one fundamental a er another, with or without feet bounces between them. 25.
- Page 6 Este trampolín no se recomienda para uso de niños menores de 6 años. Leer instrucciones antes de usar el trampolín. In las piezas defectuosas, desgastadas o faltantes. While keeping the head erect, focus eyes on the trampoline toward the perimeter. JK1015RCBHFTCT JK1015RCBHFTCT JK1015RCBHFTCT...
- Page 11 100 kg (220 lbs).
-
Page 17: Parts List
PARTS LIST Part Part Part Part Part Description: Description: Description: Description: Top tube with Top tube with L-Top tube with Top Tube T-connector + T-connector + T-Connector + Description: (Curved) welded tube welded tube welded tube Top Tube Quantity: 2 Quantity: 2 Quantity: 2 Quantity: 4... -
Page 18: Step 1 : Assembling The Frame
STEP 1 : ASSEMBLING THE FRAME You will need the following parts to complete section 1a: 2 x L-Top tube with Welded connector - Part A L-Top tube - Part B A marking e with welded tube - Part C - Part D Top tube B marking e with welded tube... - Page 19 Push down on the end of the centre leg to fully inset the leg extension into the T-connector+Welded tube. We will complete the two sections of the trampoline frame. Slot the narrow end of the top tube with T-connector+Welded tube. Repeat the last two steps until you have assembled the remaining sections of the trampolines frame.
- Page 20 STEP 2 : ASSEMBLING THE FRAME This step will require 2 people who must be wearing gloves. Slot two of the frame section together as shown in the diagram. You will now need to slot the frame together, this will take some force. The easiest method is if the two people face each other.
- Page 21 STEP 3 : FITTING THE STITCHED BED This step will require 2 people who must be wearing gloves and protective eye wear. Lay the stitched bed (with the V-Rings) out inside the frame of the trampoline with the warning labels facing upwards.
- Page 22 Attach a spring to the diagonal webbing V-Ring. Important: You will now need to use the spring tool (Part Z) to attach the spring to the frame. Hook the spring tool onto end of spring, and pull until the spring can be slotted into the spring slot on the top of the frame.
- Page 23 STEP 4 : FITTING THE FRAME PAD This step will require 2 people. Lay the frame pad - Part M out over the edge of the frame with the ties facing downwards. Align the openings in the frame pad with the T-connector+welded tube’s on the frame.
- Page 24 You will need the following parts to complete step 5: 8 x Bottom enclosure tubes - Part N 4 x Top enclosure bent tubes - Part O 4 x Top enclosure tubes for Basketball hoop - Part P 4 x Middle enclosure tubes for Basketball hoop - Part Q Middle Enclosure pole for Basketball 2 x Hotizontal tubes for Basketball hoop - Part R 2 x Basketball hoop - Part S...
- Page 25 Screw the 8mm x 40mm nut and bolt through the slot in the top enclosure tube for basketball hoop and into hole in the heri- zontal tube using the philips head screwdriver. 8mm x 40mm Nut and bolt (Part W) Assemble the Basketball hoop to the Horizontal tube with 8mm x 15mm Flat head screw and washers.
- Page 26 Slot the bottom enclosure tube into the tubes in in the frame pad. Slot the eight enclosure tubes into the T -connector+welded tube's on the frame. The enclosure tubes are now and you have completed step 5.
- Page 27 Black G3 poles - Part U 4 x Black G3 poles - Part T Find the sleeves that run along the top of the enclosure netting. Slot the thin sections on the two black G3 poles into the metal ends so the poles become two long sections.
- Page 28 You will now join the two ends of the Black G3 will require two people. Both people hold two of the poles end sections and walk towards each other to bend the poles into a circle. As soon as the poles are bent enough, insert the connectors into the socket on the other pole (1 Push the pin inwards (2 connector.
- Page 30 STEP 8: ATTACHING THE FOOT STEP You will need the following parts to complete step 8: 1 x Foot Step Position the Foot Step on front zipper entrance of enclosure netting Zipper Door Tighthen the nuts. Now you have completed the Foot Step.
- Page 31 USING THE TRAMPOLINE Before using your trampoline, check again that there is enough clearance around it. Maintain a clear space of 2.5 metres (8.2 feet) on all sides of the trampoline. Also check that the area is free from walls, structures, fences, tarmac and other hard surfaces 2.5m and other play areas.
- Page 32 100 kg (220 lbs)
- Page 33 T-Connector+Welded tube T-Connector 7 ft x 10 ft Rectangle Trampoline & Enclosure re poles Bottom enclosu L-top tube with T-connector+welded tube re poles Top enclosu Top tube Top Enclosure pole for Basketball Top tube with T-connector+welded tube Middle enclosure pole for Basketball Top tube (curved) Horizontal pole for Basketball Top tube with...
