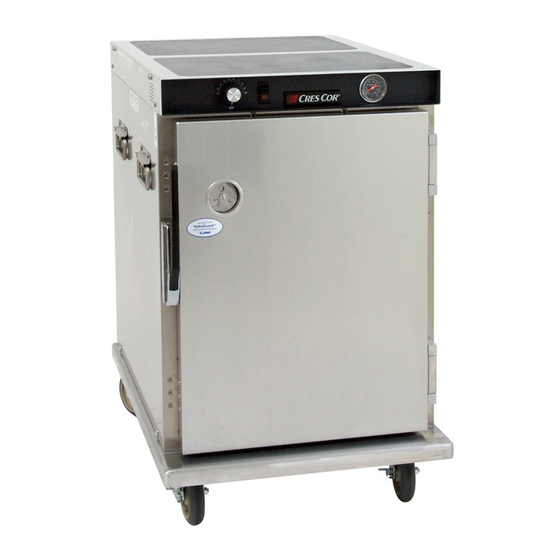

Cres Cor H-339-1813C-GMR Operating And Maintenance Instructions

5925 Heisley Road • Mentor, OH 44060-1833
OPERATING and MAINTENANCE INSTRUCTIONS

ELECTRICAL SPECIFICATIONS:

MODEL
H-339-1813C-GMR
H-339-1813C-GML

HOW TO INSTALL UNIT:

1. Plug cord into 15-Amp wall outlet.
2. Place cabinet in a well ventilated area.
3. Hang wire racks inside the cabinet.
4. Push the switch on, turn the thermostat to No. 10
and run the unit for one hour.
NOTE: DO NOT PUT IN FOOD! This step is to
burn off manufacturing oils and excessive
adhesive.
6. Let the cabinet cool and wipe inside clean with
detergent and hot water before use.
Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
FOR HOLDING CABINET
Volts Watts
120 900
FIGURE 1
Amps Hertz
7.5 60
HOW TO OPERATE UNIT: (Figure 1)
1. Push switch "ON". Yellow light will come on.
2. Turn thermostat to the temperature you need.
NOTE: No. 7½ setting will give you about 180° F
(82°C). Proper food holding temperature is
140° F (60°C) or higher.
3. Preheat cabinet for 45 minutes
4. Put food into cabinet.
5. Turn the wing nut on the door vent to open the vent
when less humidity is needed.
To Turn Off Unit:
Push switch "OFF". The yellow light will go off.
NOTE: Optional digital thermometer will fl ash if cabinet
temperature is below 140°F or above 250°F.
Call the factory if you need different settings.
Insulated
FL-0520-3
Holding Cabinet
Rev. 7 (4/06) Page 1 of 4
Phase NEMA
1 5-15
