FL-2371-LC
Holding Cabinet
Rev. 3 (5/14)
Page 1 of 9
5925 Heisley Road • Mentor, OH 44060-1833
OPERATING and MAINTENANCE INSTRUCTIONS

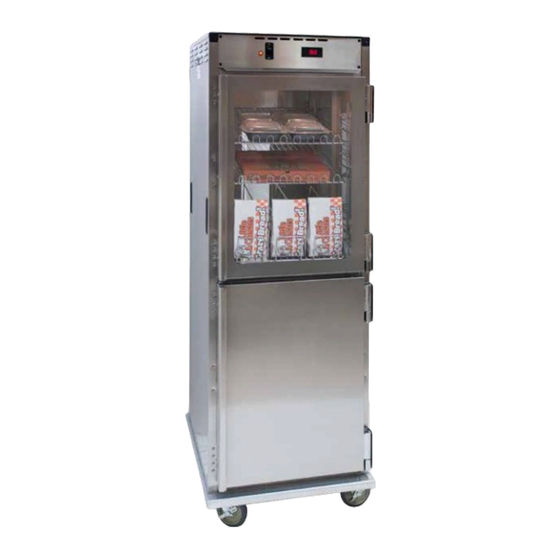

Models: H138NPSCLCMC5QRL Merchandising Hot Cabinets
Cabinet model number:
Cabinet serial number:
Authorized Service Agency:
Ph:
Fax:
Keep this manual for future reference.
